Brand : Crompton

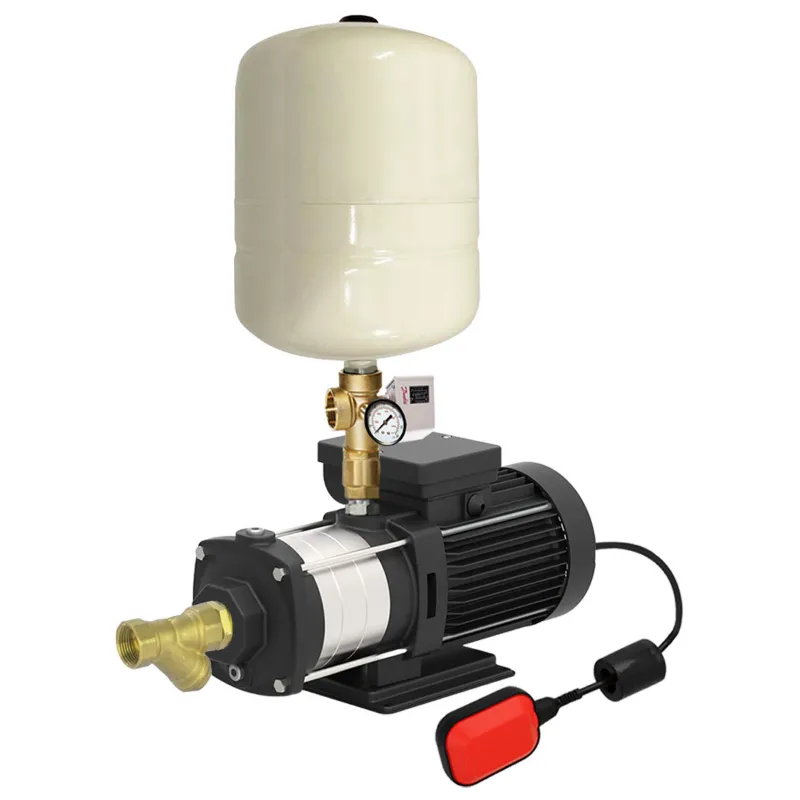

Crompton 1 Hp Single Phase Booster Pump With 24L Tank For 3 Bathrooms, SS Impeller (CFCHM6D1.0B-V24) - 1 Year Warranty
SKU : TI-C1-19808
MRP : ₹34299
₹27000
21% OFF!
-
1
+
3319 people have viewed this recently
Get Extra ₹405 OFF on Prepaid Orders
Delivery By: Jun 18 - Jun 20
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Crompton 1 Hp 1Ph Water Pressure Booster Pump
50m Max. Head, 83 LPM Max. Discharge
Accessories are included including 24L Tank
1 Year Warranty
Country of origin: India
Specification
  • Brand: Crompton
  • Power : 1 hp
  • Weight (Approx.) : 22.5 kg
  • Flow Rate : 83 lpm
  • Head : 50 meter
  • Model No. : CFCHM6D1.0B-V24
  • Product Type : Water Pressure Booster Pump
  • Brand : Crompton
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Pipe Size (Suction X Delivery) : 25 X 25 mm
  • Tank Size : 24 Liter
  • Head Range : 10 to 50 Meter (33 to 164 Feet)
  • Discharge Range : 83 to 13 LPM (4980 to 780 LPH)
  • Recommended Pressure Setting : 2.5 to 4.5 Bar
  • Winding Material : Copper Winding
  • No. of Bathrooms Recommended : 3 Bathrooms
  • Weight : 18 Kg (Approx.)

Material Of Construction :
  • Impeller : Stainless Steel- Grade SS304
  • Diffuser Bowl : Stainless Steel- Grade SS304
  • Motor Body Material : Aluminium Extruded- Grade HE9
  • Shaft : Stainless Steel- Grade SS431
  • Delivery Casing : Cast Iron-IS210 Grade FG 200
  • Y Strainer : Brass
  • Fan : NYLON 6
  • Fan Cover : PP GF 30%
Description
A single-phase booster pump with tank is a type of water pressure booster system designed to increase water pressure and flow rate in homes and small businesses. It ensures a steady flow of water by eliminating fluctuations. Water enters the booster pump from the input and exits through the outlet thanks to the impeller. The impeller is rotated by the motor.

Features

 :
  • Automatic Operation : As per water requirement, pump automatically starts when pressure level drops below set pressure.
  • Noiseless Operation : Pump noise is less than 60db.
  • Brass Strainer : High quality Y-strainer provided to avoid foreign particle entry.
  • Less Power Consumption : High operating efficiency results in high flow  rate and low electricity bill.
  • Dry Run Protection : Provided by using float switch.
  • Constant Pressure Application : Gives constant pressure at all taps.

Accessories

 :
  • 24 Liter Pressure Tank
  • 5 Way Connector
  • Pressure Gauge
  • Non Return Valve
  • Y Strainer
  • Float Switch
  • Danfoss Pressure Switch

Applications

 :
  • Domestic pressure boosting applications in bungalows, apartments, hotels, etc.
  • For constant pressure application in industries.

WARRANTY :
  • 1 Year Warranty
