• Kirloskar(KOSi-Cast Iron-123) 1 HP Single Phase Openwell Submersible Pump, 50X40mm With Control Panel, 1 Year Warranty

Brand:  Kirloskar

Kirloskar(KOSi-Cast Iron-123) 1 HP Single Phase Openwell Submersible Pump, 50X40mm With Control Panel, 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (KOSi-Cast Iron-123) 1 HP Single Phase Open Well Submersible Pump

20 Meter Max. Head

240 LPM Max. Discharge Rate

50 x 40 mm Suction x Delivery

1 Year Warranty

Country of origin: India

Description

Kirloskar(KOSi-Cast Iron-123) 1 HP Single Phase Openwell Submersible Pump, 50X40mm With Control Panel, 1 Year Warranty

Description :

• KOSi Series of Kirloskar Openwell Submersible pumps motor is designed to withstand wide voltage fluctuations from 160 to 240 Volts(Single Phase Pump) and reduces motor burning in case of low voltage. Suitable for Domestic and Community Water Supply, Gardening and Small Farm Irrigation, Construction Sites, Water Fountains, and Water Supply to Overhead Tanks.

Features :

• Wide Voltage Designs : The Motor are designed to withstand wide voltage fluctuations from 160 to 240 Volts and reduces motor burning in case of low voltage
• Lightweight and Compact Design : Constructed with special grade engineering materials such as Glass Filled Polypropylene for strength, compact designs for ease of handling and installation
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damage during operation, resulting in consistent performance as concentricity is maintained
• Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump
• Easy Maintainable Designs : Easily maintainable design and better interchangeability of components ensures that the pump can be serviced even at remote locations by semi-skilled technicians
• CED coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life
• High Efficiency And Energy Saving Design : Innovative design manufactured at state of the art, plant ensures optimum efficiency and lower energy consumption resulting in significant cost savings
• Advanced Water Cooled Motors Designs : The motor is filled with portable water, protects from overheating and facilitates smoother and trouble-free operations for the years

Specification :

• Model No. : KOSi-Cast Iron-123
• Product Type : Openwell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric
• Wattage : 0.75 kW
• Power Supply : 210V, 50 Hz, AC Power Supply
• Electricity Connection : Single Phase
• No load Speed : 2800 RPM

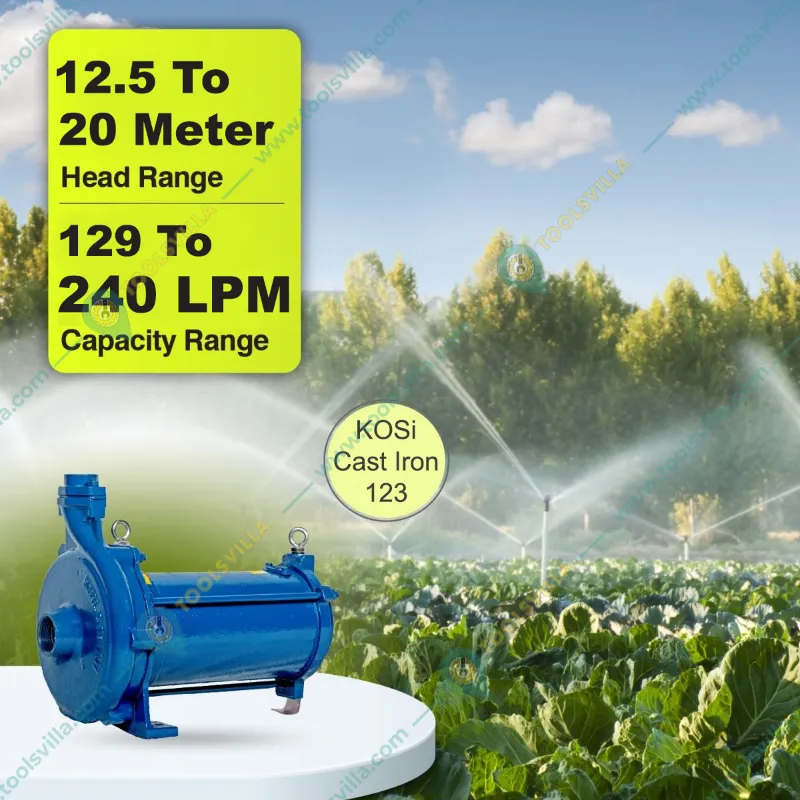

• Head Range : 41 to 66 feet (12.5 to 20 Meter)
• Pipe Size (Suction x Delivery) : 50 x 40 mm
• Discharge Rate : 129 - 240 LPM (7740 - 14400 LPH)
• No. Of Stage : 1
• Minimum Submergence From Bottom : 1000 mm
• Sealing : NA
• Certification/Accreditation : ISI / 5 Star

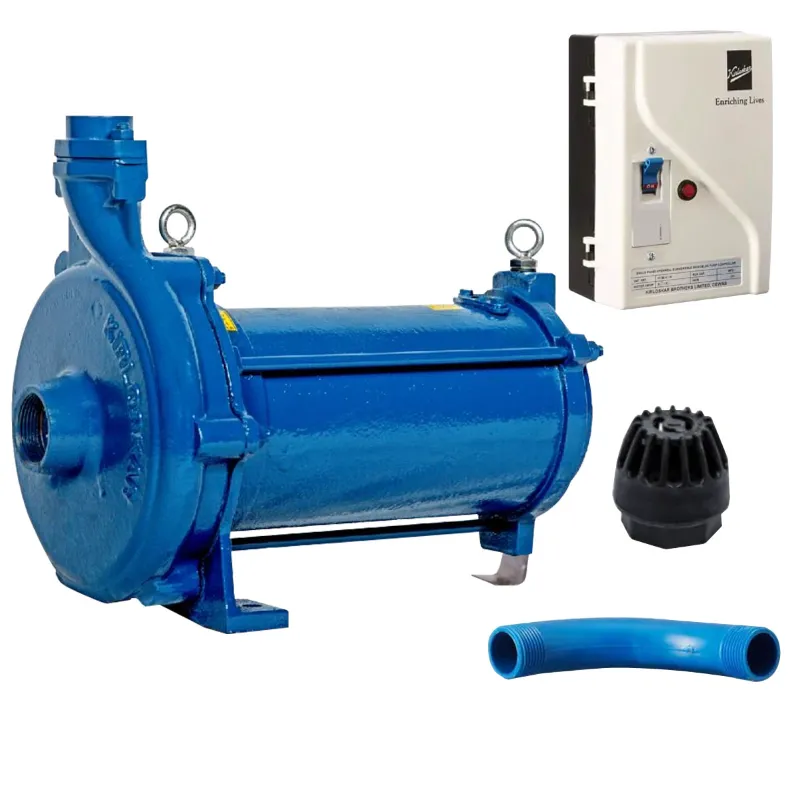

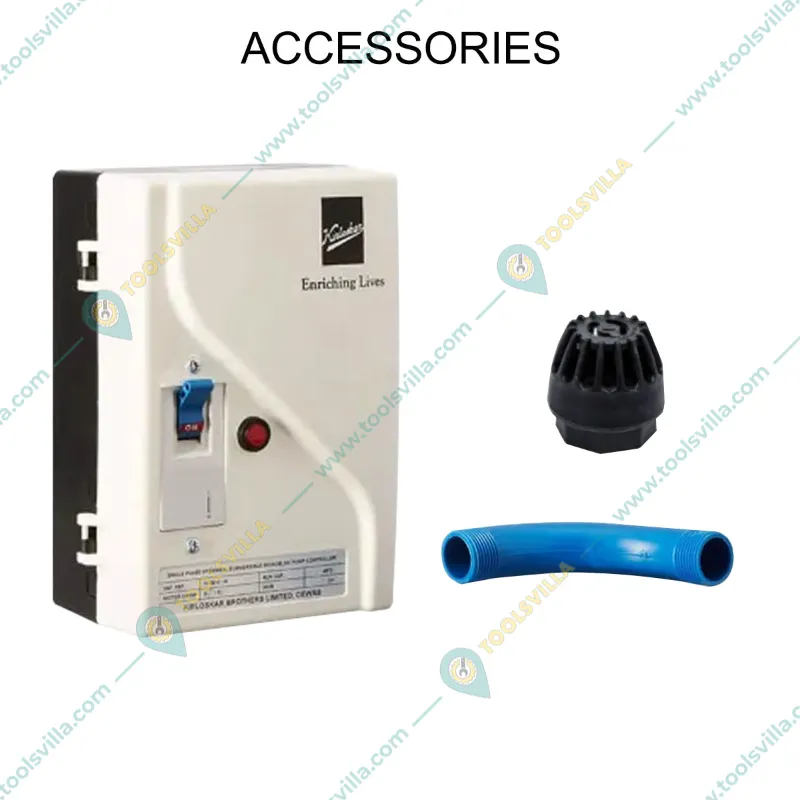

In The Box. :

• Openwell Submersible Pump
• Control Panel
• Pipe Band With Strainer

Application :

• Domestic and community water supply
• Gardening and small farm irrigation
• Water fountains & Construction site
• Water supply to overhead tanks

Warranty :

• One year WARRANTY

Specifications

 :

• Brand: Kirloskar
• Power : 1 hp
• Weight (Approx.) : 26 kg
• Flow Rate : 240 lpm
• Head : 20 meter
