Brand: Santech

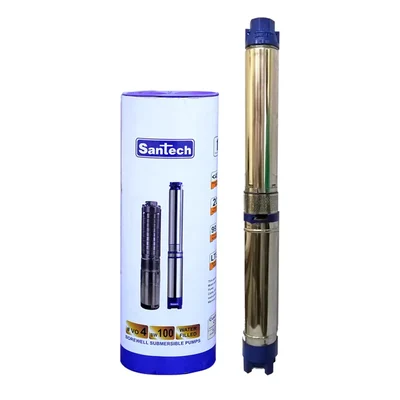

Santech 1 HP 8 Stage 4 inch(V4) Single Phase Water Cooled Submersible Pump, ISI Marked, 85ft Max. Head - 1 Year Warranty
SKU: TI-S1-17716
1649 people have viewed this recently
Delivery By: Dec 11 - Dec 13
MRP : ₹10000 ₹8409
16% OFF!
1649 people have viewed this recently Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹8409 (Including GST)
MRP : ₹10000
16% OFF!
Get Extra ₹126 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Santech 1 Hp Single Phase Submersible Pump
8 Stage, 4"(100mm) Borewell Size
26M Max Head, 120 LPM Max. Discharge
ISI & BIS Certified
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specifications
- Brand: Santech
- Power : 1 hp
- Weight (Approx.) : 18.5 kg
- Flow Rate : 120 lpm
- Head : 26 meter
- Product Type : Submersible Pump
- Brand : Santech
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Voltage : 230 Volt
- No Of Stage : 8
- Pump Type : V4
- Borewell Size : 4 inch (100 mm)
- Cora : 5
- Head Range : 24 to 26 Meter (78 to 85 Feet)
- Discharge Range : 120 to 90 LPM
- Pipe Size (Suction x Delivery) : 100 x 32 mm
- ISI Certified : Yes
- BIS Certificate Mark : IS8034:2018
Material Of Construction :
- Motor Winding : POLYWRAP Copper Winding
- Motor Body Material : Cast Iron
- Motor Rotor Material : AL.DIE CAST
- Motor Core Length : 150 mm
- Motor Core Quality : CRNO (Cold Rolled Non-Oriented)
- Motor Bearing Bush : LTB 4
- Pump Bush : LTD 4/NITRILE
- Pump Bowl : NORYL 20% GF
- Impeller Material : NORYL 20 % GF
- Motor Pipe Material : Stainless Steel
- Bearing Bush : NITRILE/LTB -4
- Motor Shaft Material : SS. 410
- Thrust Bearing Material : SS/CARBON
- Stamping Material : ELECTRO GRADE
- Rotor Material : ELECTRO GRADE
- Suction/Outlet : C.I
- Diffuser Material : Noryl 20 % GF
- Pump Shaft Material : SS. 410
- Pump Pipe Material : Stainless Steel
Special NOTE :
- All movable parts eg. rotor is protected with a epoxy paint from frozen.
- All casting also protected about cast iron part internally.
Description
A submersible pump is a device that consists of a hermetically sealed motor close-coupled to the pump body. This entire assembly is submerged in the fluid that needs to be pumped. Santech 4″ STAINLESS STEEL SUBMERSIBLE PUMPSETS are easy to install, efficient and require minimum maintenance. Motors are water lubricated and feature robust thrust bearings. Good quality materials are used to obtain long life and facilitate easy service.
Features
:- The motors are suitable for installation in areas experiencing wide voltages fluctuations.
- Energy efficient motor
- Water filled motor with easily rewindable stator
- Suitable for single phase 230 Volt
- Corrosion resistant stainless steel stator casing
- Energy efficient radial and mixed flow pumps
- Modified PPO 20% glass filled impellers and diffusers
- Stainless steel stage housings (specified models)
- Rubber diaphragm provided at the bottom of the motor to compensate thermal expansion of water
Applications
:- Pressure boosting application
- Supply to commercial establishments like Hotels, Lodges and Hospital water supply
- Domestic Water Supply
- Fire Fighting
- Small Farms.
WARRANTY :
- 1 Year Warranty on Manufacturing Defects Only
