Brand: Gemston

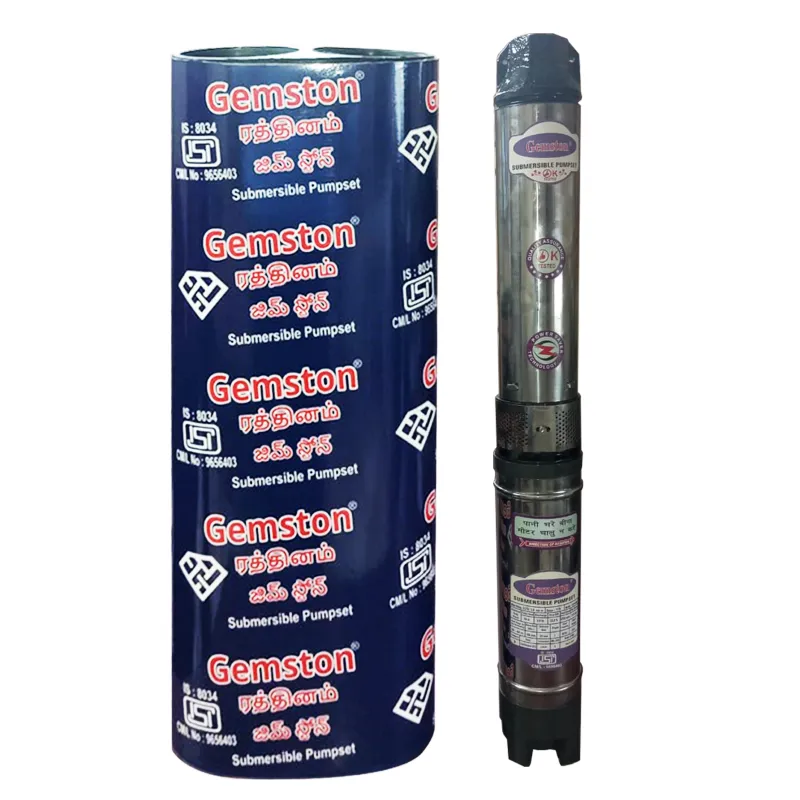

Gemston 1 HP 14 Stage(3 inch) V-3 Single Phase Water Filled Submersible Pump, 40M Max. Head, 4000 LPH (1 Year Warranty)
SKU: TI-G1-16089
5 people have bought this recently
Delivery By: Dec 11 - Dec 13
MRP : ₹7000 ₹5999
14% OFF!
5 people have bought this recently Delivery By: Dec 11 - Dec 13 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹5999 (Including GST)
MRP : ₹7000
14% OFF!
Get Extra ₹90 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
GEMSTON 1 HP 14 Stage (3 inch) Submersible Pump
40M Max. Head
4000 LPH Max. Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specifications
- Brand: Gemston
- Power : 1 hp
- Weight (Approx.) : 15 kg
- Flow Rate : 67 lpm
- Head : 40 meter
- Product Type : Submersible Pump
- Brand : GEMSTON
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
- Current Rating : 7 Amp
- No Of Stages : 14
- Cora : 4
- Type : V-3
- Delivery : 1.25 Inch (31.75 mm)
- Max. Head : 40 Meter (132 Feet)
- Max. Discharge Rate : 4000 LPH (67 LPM)
- Borewell Size : 76 mm (3 Inch)
- Outlet Pipe Size : 1.25 Inch (31.75 mm)
- Winding Material : 100% Copper
- Cooling Type : Water Filled
Material Of Construction :
- Thrust Bearing : Carbon
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- Non Return Valve (NRV) : Cast Iron
Description
A water-filled submersible pump is an electric pump designed to be fully submerged in the fluid it's pumping. Unlike oil-filled pumps, its motor is cooled and lubricated by the water or fluid it's operating within, making it suitable for potable water applications and generally more environmentally friendly. This design also provides efficient heat dissipation and quiet operation.
Features
:- Compact designed, High Operating Efficiency.
- The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
- Higher output, lesser power consumption
- ISI Certified.
- IS : 8034
- CM/L : 9656403
Applications
:- Domestic and community water supply.
- Rural water supply
- Gardening and small farm irrigation.
- Construction site.
- Water supplies for high rise building.
Warranty :
- 1 Year Warranty On Manufacturing Defects Only
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
