Brand : Generic ( Made in India )

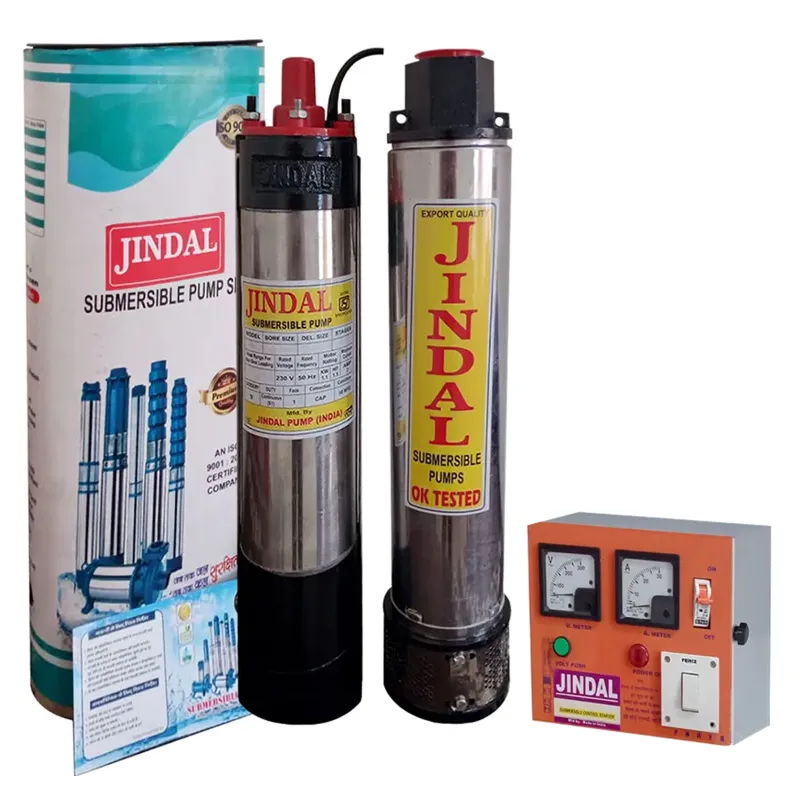

Jindal 1 Hp 10 Stage 100mm/4" Bore Single Phase Oil Cooled Borewell Submersible Pump With Control Panel- 1 Year Warranty
SKU : TI-J1-34356
MRP : ₹6200
₹4900
21% OFF!
-
1
+
1123 people have viewed this recently
Get Extra ₹74 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Jindal 1 Hp 10 Stage 1Ph Borewell Submersible Pump With Control Panel
Aluminium Winding
100mm Bore Size, 44m Head
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Description
The Jindal 1Hp 10 Stage Submersible Pump is a high-performance pump designed for efficient water extraction from borewells. With a power rating of 1hp, this pump is suitable for various applications, including agricultural irrigation, domestic water supply, and industrial use. The single phase motor allows for easy installation in residential areas where three phase power may not be available. The motor maintains cool while operating because of its oil-cooled technology.

Specification

 :
  • Product Type: Power - 1HP
  • Brand: Generic ( Made in India )
  • Power : 1 hp
  • Weight (Approx.) : 14.8 kg
  • Flow Rate : 90 lpm
  • Head : 44 meter
  • Product Type : Borewell Submersible Pump
  • Brand : Jindal
  • Power : 0.75 kW
  • No of Stages : 10 Stage
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Bore Size : 100 mm/ 4 inch
  • Head Range for Non Over Loading : 144 Feet
  • Delivery Pipe Inner Size : 32mm
  • Delivery Pipe Outer Size : 38mm
  • Cooling Type : Oil Cooled
  • Full Load Current : 7 Amp.
  • Winding Material : Aluminium
  • Category : B
  • Duty : Continuous (S1)
  • Face : 1
  • Connection : CAP
  • Condition : 36 MFD

Material of Construction :
  • Motor Body Material : SS Pipe
  • Motor Shaft Material : MS Steel
  • Pump Housing Material : SS Pipe
  • Impeller Material : Kora 4 Plastic
  • Pump Shaft Material : MS Steel

Accessories

 :
  • Control Panel

Applications

 :
  • Agricultural irrigation systems.
  • Domestic use in households requiring reliable water delivery from borewells.
  • Industrial applications that necessitate efficient pumping solutions.

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects.
