Brand: Gemston

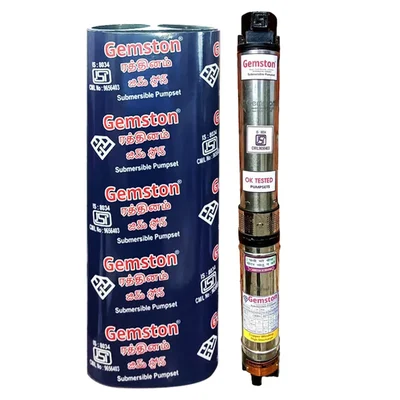

Gemston 1 HP 12 Stage(4 inch) V-4 Single Phase Water Filled Submersible Pump, 48M Max. Head, 2000 LPH (1 Year Warranty)
SKU: TI-G1-16836
₹6200 (Including GST)
MRP : ₹8850
Get extra ₹93 Discount (On Checkout)
Delivery By: May 5 - May 7
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
GEMSTON 1.0 HP 12 Stage Submersible Pump
48M Max. Head
2000 LPH Max. Discharge
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Description
Gemston 1 HP 12 Stage(4 inch) V-4 Single Phase Water Filled Submersible Pump, 48M Max. Head, 2000 LPH (1 Year Warranty)
Features :
- Compact designed, High Operating Efficiency.
- The voltage range is 160 - 220 Volts protects the motor from burning due to lower/higher voltage
- Higher output, lesser power consumption
- ISI Certified.
- IS : 8034
- CM/L : 9656403
Specification :
- Product Type : Submersible Pump
- Brand : GEMSTON
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Rated Voltage Range : 160-220 Volt, 50 Hz, AC Power Supply
- Current Rating : 7 Amp
- No Of Stages : 12
- Cora : 2
- Type : V-4
- Delivery : 1.25 Inch (31.75 mm)
- Max. Head : 48 Meter (158 Feet)
- Max. Discharge Rate : 2000 LPH (33 LPM)
- Borewell Size : 100 mm (4 Inch)
- Outlet Pipe Size : 1.25 Inch (31.75 mm)
- Cooling Type : Water Filled
- Winding Material : 100% Copper
Material Of Construction :
- Thrust Bearing : Carbon
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- Non Return Valve (NRV) : Cast Iron
Applications :
- Domestic and community water supply.
- Rural water supply
- Gardening and small farm irrigation.
- Construction site.
- Water supplies for high rise building.
Warranty :
- 1 Year Replacement Warranty On Manufacturing Defects Only
Warranty Terms :
- Dry Run Accidental Damages Are not covered in the warranty
- For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
- You have to send the product to the sellers warehouse.
- Buyer has to bear the courier charges of both side for sending the product.
Specifications
:- Brand: Gemston
- Power : 1 hp
- Weight (Approx.) : 18.5 kg
- Flow Rate : 33 lpm
- Head : 48 meter
