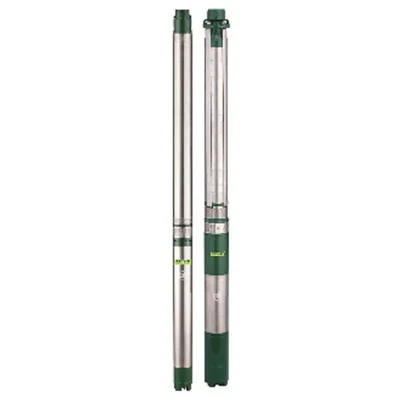

CRI 1Hp 17 Stage 3"(V3) 1Phase Water Filled Submersible Pump, 76m Head (LENA, CRI3R-31/17) - 1 Year Warranty
SKU : TB-CR-33657
MRP : ₹25791
₹20149
22% OFF!
-
1
+
Get Extra ₹302 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1 Hp 17 Stage V3 Borewell Submersible Pump
Water Cooled Technology
76m Max. Head, 54 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 1 hp
  • Weight (Approx.) : 21 kg
  • Flow Rate : 54 lpm
  • Head : 76 meter
  • Model No. : CRI3R-31/17
  • Series : LENA
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • No. of Stages : 17
  • Outlet Size : 32 mm
  • Head Range : 76 to 33 Meter (249 to 108 Feet)
  • Discharge Range : 0 to 54 LPM (0 to 3240 LPH)
  • Cooling Type : Oil Cooled
  • Borewell Size : 80 mm (3 inch)
  • Winding Material : Copper
  • Speed : 2800 RPM
  • Degree of Protection : IP 58
  • Direction of Rotation : Counter Clockwise from Driving End
  • Minimum Cooling Flow Along the Motor : 0.15m/sec
  • Type of Duty : S1 (Continuous)
  • Method of Starting : Capacitor Start Capacitor Run
  • Maximum Start Per Hour : 20 Times
Description
C.R.I. LENA 3 inch Borewell Submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. All vital components of these pumps are made up of corrosive resistance thermo plastic & SS 304. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. C.R.I. products are engineered to perfection with utmost care and stringent quality control at all stages to ensure a trouble free service.
