Brand : Sharp

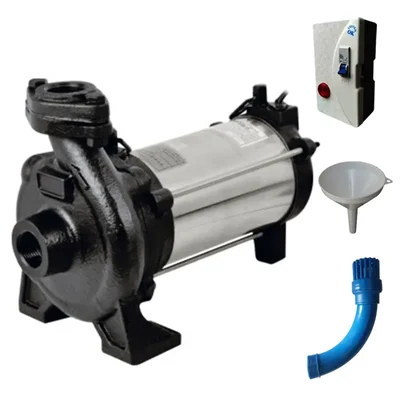

Sharp 1Hp Single Phase Openwell Submersible Pump, 28m Max. Head With Starter, One Bend, One Funnel - 1 Year Warranty
SKU : TI-V1-13435
MRP : ₹9300
₹6260
33% OFF!
-
1
+
6 people have bought this recently
Get Extra ₹94 OFF on Prepaid Orders
Delivery By: Jul 19 - Jul 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Sharp 1 HP Single Phase Openwell Submersible Pump With CP
28M Max. Head
90 LPM Max. Discharge Range
1 Year Warranty
Country of origin: India
Specification
  • Brand: Sharp
  • Power : 1 hp
  • Weight (Approx.) : 14.90 kg
  • Flow Rate : 90 lpm
  • Head : 28 meter
  • Product Type : Openwell Submersible Pump
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 180 - 240 Volt, 50 Hz, AC Power Supply
  • Head Range : 3 to 28 Meter
  • Speed : 2800-2900 RPM
  • Max. Discharge Range : 1.5 LPS (90 LPM/5400 LPH)
  • Pipe Size (Suction x Delivery) : 1.25 x 1 Inch (32x25 mm)
Description
An openwell submersible pump is designed to be fully submerged in an open water source like a well, tank, or reservoir, operating quietly and efficiently by pushing water upwards rather than pulling it . These pumps are widely used for agricultural irrigation (flood, sprinkler, drip), domestic and community water supply, industrial water circulation systems, and for lifting water from open tanks and reservoirs.

Features

 :
  • Highly rigid cast iron construction
  • Brass forged impeller
  • Graded steel shaft
  • Tested as per IS standards
  • Fitted with motor protector (Thermal Overload Protection)
  • Mechanical seal with high alumina seal face

Accessories

 :
  • Starter
  • One Bend
  • One Funnel (to 4 water)

Applications

 :
  • Domestic water pumping to overhead tanks
  • Curing at construction sites
  • Fountains and gardening
  • Home pressure boosting systems
  • For agricultural use
  • For industrial use
  • Sprinkles and drip irrigation
  • Domestic use

NOTE :
  • Please remove two eye bolt and fill water before install.

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
