Brand : Generic ( Made in India )

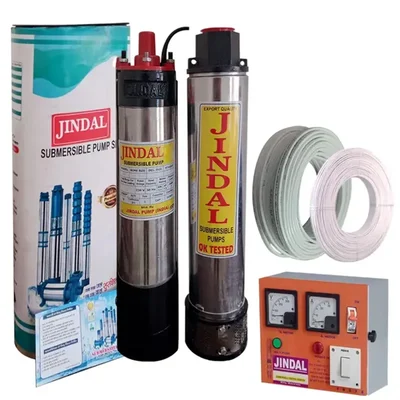

Jindal 1HP 8 Stage (V4) 1Ph Oil Cooled Submersible Pump With CP, 30m Cable & 30m Safety Wire - 1 Year Warranty
SKU : TI-J1-39037
MRP : ₹8000
₹6100
24% OFF!
-
1
+
Get Extra ₹92 OFF on Prepaid Orders
Delivery By: Oct 6 - Oct 8
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Jindal 1 Hp 8 Stage V4 1Ph Borewell Submersible Pump With Accessories
Aluminium Winding
44m Head
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Power : 1 hp
  • Weight (Approx.) : 19 kg
  • Flow Rate : 90 lpm
  • Head : 44 meter
  • Product Type : Borewell Submersible Pump
  • Power : 0.75 kW
  • No of Stages : 8 Stage
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Bore Size : V4
  • Head Range for Non Over Loading : 144 Feet
  • Delivery Pipe Inner Size : 32mm
  • Cooling Type : Oil Cooled
  • Full Load Current : 7 Amp.
  • Winding Material : Aluminium
  • Category : B
  • Duty : Continuous (S1)
  • Face : 1
  • Connection : CAP
  • Condition : 36 MFD

Material of Construction :
  • Motor Body Material : SS Pipe
  • Motor Shaft Material : MS Steel
  • Pump Housing Material : SS Pipe
  • Impeller Material : Kora 4 Plastic
  • Pump Shaft Material : MS Steel
Description
The Jindal 1Hp 8 Stage Submersible Pump is a high-performance pump designed for efficient water extraction from borewells. With a power rating of 1 hp, this pump is suitable for various applications, including agricultural irrigation, domestic water supply, and industrial use. The single phase motor allows for easy installation in residential areas where three phase power may not be available. The motor maintains cool while operating because of its oil-cooled technology.

Accessories

 :
  • Control Panel
  • 30m Submersible Cable
  • 30m Safety Wire

Applications

 :
  • Agricultural irrigation systems.
  • Domestic use in households requiring reliable water delivery from borewells.
  • Industrial applications that necessitate efficient pumping solutions.

WARRANTY :
  • Submersible Pump Warranty : 1 Year Warranty on Manufacturing Defects.
  • Accessories Warranty : 3 Months Warranty on the control panel's condenser.
  • Switches, MCBs, meters, and other Control Panel components are not covered under Warranty. Additionally, there is NO Warranty on Submersible Cables and Safety Wires.
