Brand: CRI

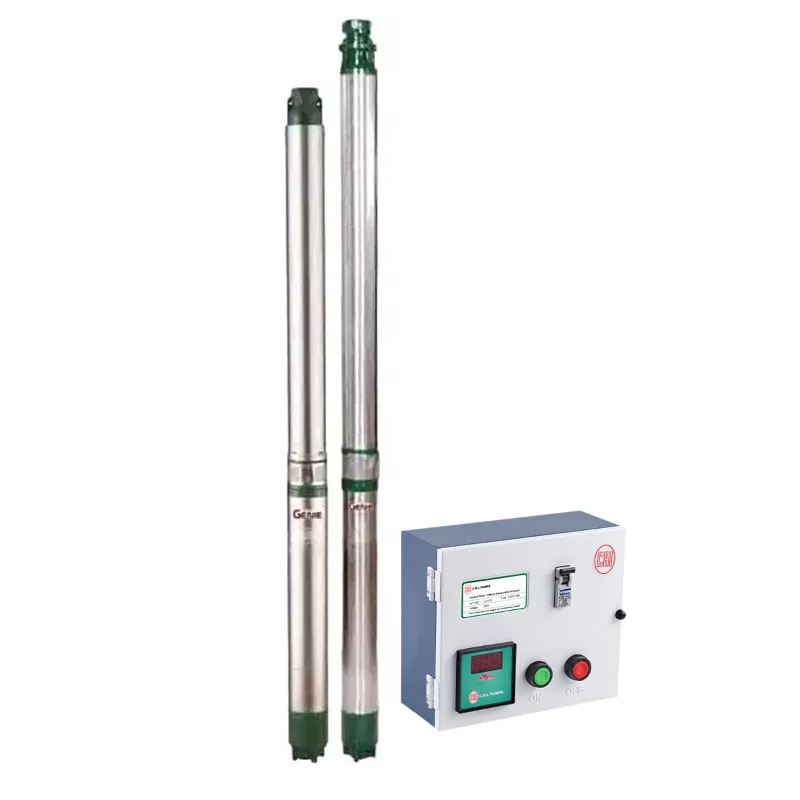

CRI 1Hp 9 Stage 4"(V4) 1Phase Water Filled Submersible Pump With CP, 71m Head (GENIE, CRI4R-3E/09) - 1 Year Warranty
SKU: TB-CR-33629
₹20099 (Including GST)
MRP : ₹25727
Get extra ₹301 Discount (On Checkout)
Delivery By: May 23 - May 25
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1 Hp 9 Stage Borewell Submersible Pump With Control Panel
Water Cooled Technology
71m Max. Head, 84 LPM Max. Discharge
1 Year Warranty
Water Cooled Technology
71m Max. Head, 84 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
C.R.I. Genie 4 inch(100 mm) Borewell submersible pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering. All vital components of these pumps are made up of corrosive resistance thermoplastic and with stainless steel shaft.
Specification
:- Brand: CRI
- Power : 1 hp
- Weight (Approx.) : 20 kg
- Flow Rate : 84 lpm
- Head : 71 meter
- Model No. : CRI4R-3E/09
- Series : GENIE
- Wattage : 0.75 kW
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
- No. of Stages : 9
- Outlet Size : 32 mm
- Head Range : 71 to 32 Meter (232 to 104 Feet)
- Discharge Range : 0 to 84 LPM (0 to 5040 LPH)
- Cooling Type : Water Cooled
- Borewell Size : 100 mm (4 inch)
- Star Rating : 5 Star
- Winding Material : Copper
- Speed : 2850 RPM
- Degree of Protection : IP 58
- Direction of Rotation : Counter Clockwise from Driving End
- Minimum Cooling Flow Along the Motor : 0.15m/sec
- Type of Duty : S1 (Continuous)
- Method of Starting : Capacitor Start Capacitor Run
- Maximum Start Per Hour : 20 Times
Accessories
:- Control Panel
WARRANTY :
- 1 Year Warranty
