Brand : CRI

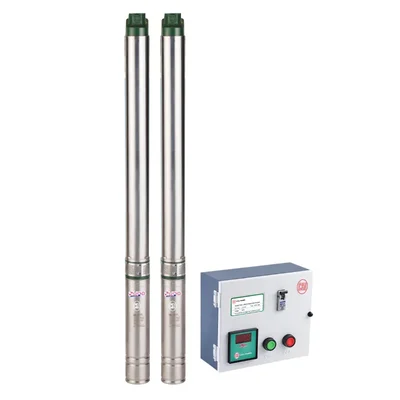

CRI 1Hp 9 Stage 4"(V4) 1Phase Oil Filled Submersible Pump With CP, 71m Head (ZUNO, CRI4R-3E/09) - 1 Year Warranty
SKU : TB-CR-33637
MRP : ₹18175
₹13799
24% OFF!
-
1
+
666 people have viewed this recently
Get Extra ₹207 OFF on Prepaid Orders
Delivery By: Nov 2 - Nov 4
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 1 Hp 9 Stage Borewell Submersible Pump With Control Panel
Oil Cooled Technology
71m Max. Head, 84 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: CRI
  • Power : 1 hp
  • Weight (Approx.) : 19 kg
  • Flow Rate : 84 lpm
  • Head : 71 meter
  • Model No. : CRI4R-3E/09
  • Series : ZUNO
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220 Volt, 50 Hz, AC Power Supply
  • No. of Stages : 9
  • Outlet Size : 32 mm
  • Head Range : 71 to 32 Meter (232 to 104 Feet)
  • Discharge Range : 0 to 84 LPM (0 to 5040 LPH)
  • Cooling Type : Oil Cooled
  • Borewell Size : 100 mm (4 inch)
  • Star Rating : 5 Star
  • Winding Material : Copper
  • Speed : 2850 RPM
  • Degree of Protection : IP 58
  • Direction of Rotation : Counter Clockwise from Driving End
  • Minimum Cooling Flow Along the Motor : 0.15m/sec
  • Type of Duty : S1 (Continuous)
  • Method of Starting : Capacitor Start Capacitor Run/CSR
  • Maximum Start Per Hour : 20 Times
Description
C.R.I. Zuno 4 inch(100 mm) Borewell submersible motors are pre-filled with non-toxic liquid for best performance in low voltage and high efficiency. The pump is firmly coupled to a submersible electric motor which operates submerged beneath the surface of water. The optimal design of impeller and diffuser enables the best possible hydraulic efficiency. Built-in check valve prevents back flow and reduces the risk of water hammering

Applications

 :
  • Control Panel

WARRANTY :
  • 1 Year Warranty
