Brand : KBS

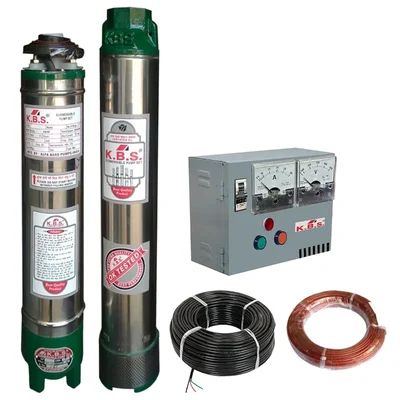

KBS 1Hp 10 Stage 4"(V4) 1Phase Water Cooled Submersible Pump With Relay CP, 30m Cable, Safety Wire - 1 Year Warranty
SKU : TI-K1-25103
MRP : ₹11999
₹8300
31% OFF!
-
1
+
504 people have viewed this recently
Get Extra ₹125 OFF on Prepaid Orders
Delivery By: Jul 6 - Jul 8
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KBS 1 HP Single Phase 10 Stage Submersible Pump With Relay Control Panel & Other Accessories
220ft Max. Head, 65 LPM Max. Flow Rate
4 inch Bore, V4 Type
1 Year Warranty
SPECIAL NOTE : THIS BOREWELL SUBMERSIBLE PUMP WORKS ON AC ELECTRIC POWER SUPPLY AND IS NOT COMPATIBLE WITH SOLAR PANEL SYSTEMS.
Country of origin: India
Specification
  • Brand: KBS
  • Power : 1 hp
  • Weight (Approx.) : 14 kg
  • Flow Rate : 65 lpm
  • Head : 67 meter
  • Product Name : Borewell Submersible Pump
  • Wattage : 0.75 kW
  • Supply Voltage : 150-220 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • No Of Stages : 10 Stage
  • Pump Type : V4 Type
  • Suitable Bore Size : 4 inch (100 mm)
  • Cora : 2
  • Max. Head Range : 220 ft. (67 Meter)
  • Max. Flow/Discharge Rate : 65 LPM (3900 LPH)
  • Pipe Size (Suction x Delivery) : 25 x 25 mm (1 x 1 inch)

Material Of Construction :
  • Motor Body : Stainless Steel
  • Motor Rotor : Copper
  • Pump Bowl : Noryl (lvory)
  • Impeller : Noryl (lvory)
  • Motor Pipe : Stainless Steel
  • Bearing Bush : Leaded Bronze
  • Motor Shaft : SS-410
  • Thrust Bearing : Carbon Vs Stainless Steel
  • Stamping : CRNGO
  • Rotor : EC Grade Copper Conductor
  • Housing/Base/Connection Piece : CI (Grade FG-200/FG-220)
  • Suction/Outlet : CI (Grade FG-200/FG-220)
  • Diffuser : Noryl (Engineering Glass Filled)
  • Pump Shaft : SS-410
  • Pump Pipe : Stainless Steel
Description
The KBS 1 Hp 10 Stage V4 Single Phase Submersible Pump is a high-performance pump designed for efficient water lifting and distribution. This model is particularly suitable for residential, agricultural, and industrial applications where reliable water supply is essential.

Features

 :
  • Corrosion resistant stainless steel body
  • Specially designed for low voltage working
  • High Electrical and Mechanical efficiency
  • Higher heat dissipation
  • Dynamically balanced rotor and other rotating parts for uniform clearance
  • Specially designed bearing to withstand axial thrust loads
  • Designed for high voltage fluctuation
  • High efficiency, low power consumption.

Accessories

 :
  • Relay Control Panel
  • 30 Meter Submersible Cable
  • Safety Wire

Applications

 :
  • Drinking water supply. Domestic & community water supply.
  • Drip irrigation, Sprinkler irrigation and gardening.
  • Housing-Complexes, Hospitals, High rise building.
  • Fire fighting, Landscaping, Fountains, Service stations.
  • De-watering of mines, Cooling water circulation and Booster application.

Warranty :
  • 1 Year WARRANTY on manufacturing defects only.

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper bill or Order ID
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
