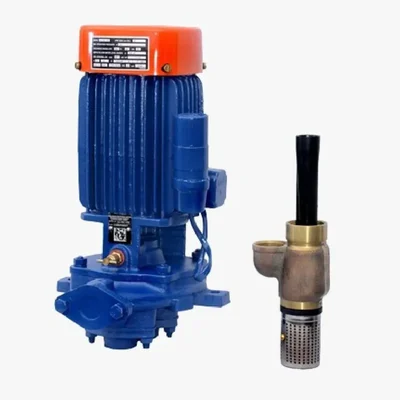

Kirloskar(KJ-10V / 4T6) 1.0 HP (0.75 kW) Jet Pump
42M Max. Depth To Low Water Level
1800 LPH Max. Discharge Rate
1 Year Warranty
Brand : Kirloskar
Kirloskar 1 HP Single Phase Jet Pump, 42M Max. Depth To Low Water Level, 1800 LPH (KJ-10V / 4T6) - 1 Year Warranty
SKU : TI-KK-13251
MRP : ₹21420
₹15300
29% OFF!
-
1
+
4121 people have viewed this recently
Delivery By: Jul 18 - Jul 20
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 1 hp
- Weight (Approx.) : 32 kg
- Flow Rate : 30 lpm
- Head : 42 meter
- Model No : KJ-10V / 4T6
- Product Type : Jet Pump
- Brand : Kirloskar
- Power Rating : 0.75 kW
- Rated Voltage : 210 Volt, 50Hz, AC Power Supply
- Electricity Connection : Single Phase
- Jet Unit : 4T6
- Minimum Well Size : 100 mm
- Minimum Operating Pressure : 19 Meters
- Del. Pipe Size : 32 mm
- Press. Pipe Size : 25 mm
- Dis. Pipe Size : 25 mm
- Winding Material : Copper
- Depth To Low Water Level : 9 to 42 Meter (29 to 137 Feet)
- Discharge Range : 1800 to 120 LPH (30 to 2 LPM)
- Insulation : B Class
- Protection : IP 44
Material Of Construction :
- Impeller : Cast Iron
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Carbon Steel
- Jet Unit : Bronze
Description
A jet pump uses a high-velocity stream of fluid passed through a nozzle to create a low-pressure area, which in turn draws in and moves another fluid. These versatile pumps are widely used for residential water supply from wells, irrigation, pressure boosting, and various industrial applications like fluid transfer, mixing, and creating vacuum.
Features
:- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
- Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication required through life cycle and low noise level.
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Applications
:- Domestic water supply
- Water supply to over head tanks in bungalows
- Construction site
- Gardens / Fountains
- Lawn sprinklers
Warranty :
- 1 Year Onsite Warranty.
