Kirloskar 1 HP Single Phase Jet Pump, 30m Max. Depth To Low Water Level, 2700 LPM (KJ-10V / 4T3) - 1 Year Warranty

Brand: Kirloskar

Kirloskar 1 HP Single Phase Jet Pump, 30m Max. Depth To Low Water Level, 2700 LPM (KJ-10V / 4T3) - 1 Year Warranty

Name: Kirloskar 1 HP Single Phase Jet Pump, 30m Max. Depth To Low Water Level, 2700 LPM (KJ-10V / 4T3) - 1 Year Warranty
Brand: Kirloskar
SKU: TI-KK-13254
Price: 15400 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-KK-13254

MRP : ₹21560 ₹15400

29% OFF!

2246 people have viewed this recently

Get Extra ₹231 OFF on Prepaid Orders

Delivery By: Dec 11 - Dec 13

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹15400 (Including GST)

MRP : ₹21560

29% OFF!

Get Extra ₹231 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

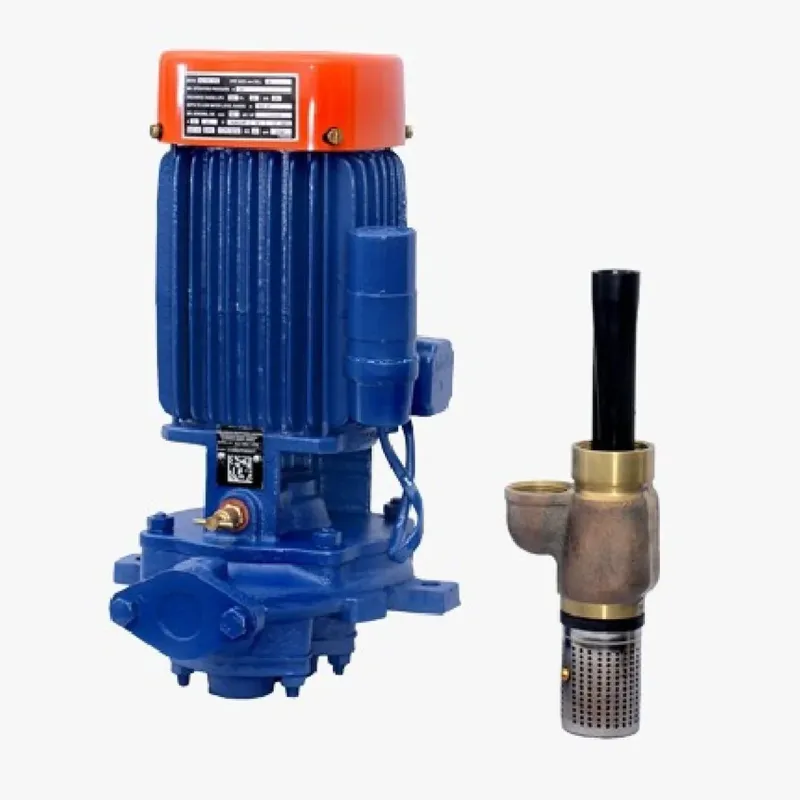

Kirloskar(KJ-10V / 4T3) 1.0 HP (0.75 kW) Jet Pump

30M Max. Depth To Low Water Level

2700 LPH Max. Discharge Rate

1 Year Warranty

Country of origin: India

Brand: Kirloskar
Power : 1 hp
Weight (Approx.) : 34 kg
Flow Rate : 45 lpm
Head : 30 meter

Model No : KJ-10V / 4T3
Product Type : Jet Pump
Brand : Kirloskar
Wattage : 0.75 kW
Rated Voltage : 210 Volt, 50Hz, AC Power Supply
Electricity Connection : Single Phase
Jet Unit : 4T3
Minimum Well Size : 100 mm
Minimum Operating Pressure : 19 Meters
Del. Pipe Size : 32 mm
Press. Pipe Size : 25 mm
Dis. Pipe Size : 25 mm
Depth To Low Water Level : 9 to 30 Meter
Discharge Range : 2700 to 660 LPH (45 - 11 LPM)
Winding Material : Copper
Insulation : B Class
Protection : IP 44

Material Of Construction :

Impeller : Cast Iron
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Pump Shaft : Carbon Steel
Jet Unit : Bronze

A jet pump uses a high-velocity stream of motive fluid (liquid, gas, or steam) passed through a nozzle to create a low-pressure area, drawing in and accelerating a secondary fluid. This combined flow then exits at a higher pressure, effectively moving liquids or gases without moving parts .

Features

Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication required through life cycle and low noise level.
CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
