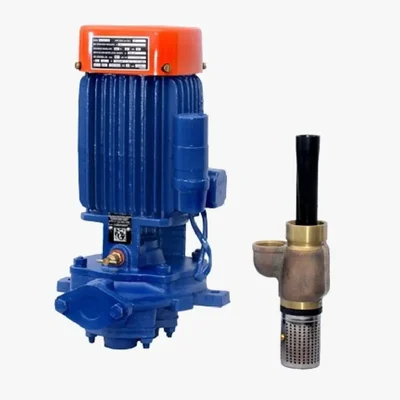

Kirloskar(KJ-10V / 2P1) 1 HP (0.75 kW) Jet Pump
24m Max. Depth To Low Water Level
1600 LPH Max. Discharge Rate
1 Year Warranty
Brand : Kirloskar
Kirloskar 1 HP Single Phase Jet Pump, 24m Max. Depth To Low Water Level, 1600 LPH (KJ-10V / 2P1) - 1 Year Warranty
SKU : TI-KK-13257
MRP : ₹25000
₹17799
29% OFF!
-
1
+
1788 people have viewed this recently
Delivery By: Jul 16 - Jul 18
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 1 hp
- Weight (Approx.) : 33.5 kg
- Flow Rate : 27 lpm
- Head : 24 meter
- Model No : KJ-10V / 2P1
- Product Type : Jet Pump
- Brand : Kirloskar
- Wattage : 0.75 kW
- Rated Voltage : 210 Volt, 50Hz, AC Power Supply
- Electricity Connection : Single Phase
- Jet Unit : 2P1
- Minimum Well Size : 50 mm
- Minimum Operating Pressure : 20 Meters
- Del. Pipe Size : 32 mm
- Press. Pipe Size : 25 mm
- Dis. Pipe Size : 25 mm
- Depth To Low Water Level : 12 to 24 Meter
- Discharge Range : 1600 to 540 LPH (27 to 9 LPM)
- Winding Material : Copper
- Insulation : B Class
- Protection : IP 44
Material Of Construction :
- Impeller : Cast Iron
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Carbon Steel
- Jet Unit : Bronze
Description
A jet pump utilizes a high-velocity stream of fluid, typically water, passed through a nozzle and venturi to create a low-pressure area that draws and moves another fluid. They are commonly used for pumping water from wells, boosting water pressure, and in various industrial applications for fluid transfer.
Features
:- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
- Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication required through life cycle and low noise level.
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Applications
:- Domestic water supply
- Water supply to over head tanks in bungalows
- Construction site
- Gardens / Fountains
- Lawn sprinklers
Warranty :
- 1 Year Onsite Warranty.
