Brand: V-Guard

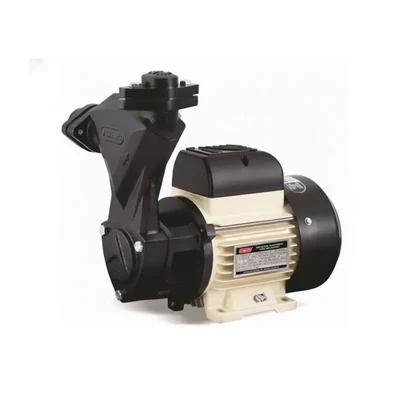

V-Guard 1 HP Single Phase Self Priming Monoblock Pump, 197 ft Head and 200 LPM Flow (VSPAR-F180) - 25 Months Warranty
SKU: TI-V1-64236
Estimated Delivery By: Mar 9 - Mar 11
MRP : ₹14999 ₹11399
24% OFF!
Estimated Delivery By: Mar 9 - Mar 11 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹11399 (Including GST)
MRP : ₹14999
24% OFF!
Get Extra ₹171 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
V-Guard 1 HP Single Phase Self Priming Monoblock Pump
60 meters (197 feet) Max. Head and 12000 LPH (200 LPM) Flow Rate
25 Months Warranty
Country of origin: India
Specifications
- Brand: V-Guard
- Power : 1 hp
- Weight (Approx.) : 13 kg
- Flow Rate : 200 lpm
- Head : 60 meter
- Model : VSPAR-F180
- Voltage : 240 V 1ØAC.
- Voltage range : 260-180 V
- Frequency : 50 Hz
- Power Input : 1.2 kW
- Rated Speed : 2800 RPM
- Insulation : Class F
- Capacitor Value : 25µF, 440V
- Max. Current : 6 A
- Type of Duty : S1
- Pipe Size : 25 X 25 mm
- Self priming time : 50 SEC at 3M
Material Specifications :
- Motor Body material : PDC Al
- Impeller Material : Forge Brass
- Rotor Shaft : SS-410
- Bracket, casing : Cast iron
- End cover, Flange material : Cast iron
- Copper wire : 20 SWG, 21.5 SWG
- Hardware : Stainless Steel
Warranty :
- 25 months warranty as per brand policy
Description
The V-Guard VSPAR-F180 is a 1 HP single-phase self-priming monoblock pump designed for reliable domestic water supply in homes and small setups.
Features
:- E-Coated Castings.
- Brass insert provided in casing and bracket.
- Suction capacity up to 8m.
- IP55 for motor protection.
- 25 Months warranty.
