Brand:  Havells

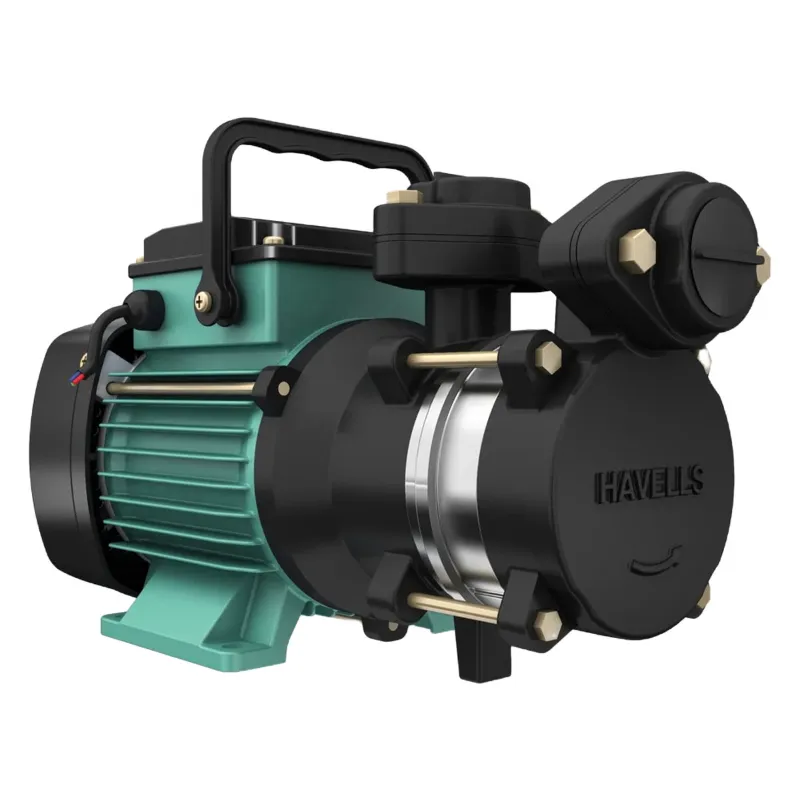

Havells 1 HP Single Phase Self Priming Monoblock Pump 35m Max. Head, 2100 LPH, 25X25mm (DARIYA 10) - 1 Year Warranty

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Havells 1 Hp Self Priming Monoblock Pump

35m Max. Head, 2100 LPH Max. Discharge

1 Year Warranty

Country of origin: India

Description

Havells 1 HP Single Phase Self Priming Monoblock Pump 35m Max. Head, 2100 LPH, 25X25mm (DARIYA 10) - 1 Year Warranty

Features :

• Motor body : High quality aluminum pressure die casted
• 50 Hz single phase AC power supply
• Motor Insulation Class F
• In-built thermal overload protector (T.O.P.)
• CED coated cast iron hydraulic parts for corrosion free performance
• Carbon Steel Shaft
• Stainless Steel Hydraulic Parts

Specifications :

• Model No. : DARIYA 10
• Product Type : Self Priming Monoblock Pump
• Brand : Havells
• Motor Power : 0.75 kW
• Electricity Connection : Single Phase
• Motor Winding : Copper
• Operating Water Temperature : Ambient temperature
• Cable length and Size : 0.3 m & 1.5 sq. mm

• In built thermal overload protector : Yes

• Direction of rotating : Anti-clockwise when viewed from driving end

• Max. Working Pressure : 4.2 kg/cm²
• Dynamically balanced rotor : Yes

• Operating Voltage Range : 200 to 280 V
• Low power consumption : Yes

• No Load Speed : 1500 RPM
• Max. Head : 35 Meter (114 Feet)
• Max. Discharge : 2100 LPH
• Pipe Size (Suction x Delivery) : 25 x 25 mm


Materials of Construction :

• Motor Body : Graded Cast Iron
• Motor Stator : CRC Pressed grade stamping
• Pump Casing : Cast Iron
• Impeller : Brass
• Shaft : Stainless Steel (SS-410)

Applications :

• Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation.

Note :

• Do not run the pump without water.

Warranty :

• 1 Year Warranty on manufacturing defects only.

Specifications

 :

• Brand: Havells
• Power : 1 hp
• Weight (Approx.) : 11 kg
• Flow Rate : 35 lpm
• Head : 35 meter
