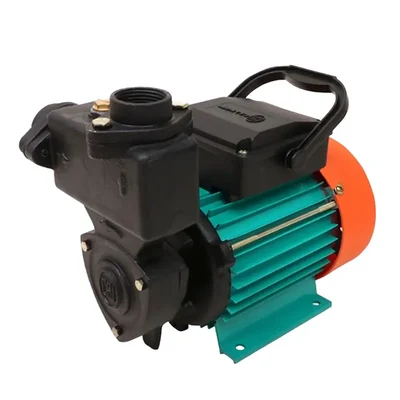

CRI 1 Hp 1Phase Copper Winding Mini Self Priming Monoblock Pump, 30m Head, 25X25mm (ELSA PRO 100) - 1 Year Warranty
SKU : TI-C1-19904
MRP : ₹5500
₹4500
18% OFF!
-
1
+
3395 people have viewed this recently
Get Extra ₹68 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
CRI 1 Hp 1Ph Self-Primig Monoblock Pump
30m Max. Head, 3000 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
Brand: CRI
Power : 1 hp
Weight (Approx.) : 8 kg
Flow Rate : 50 lpm
Head : 30 meter
Model No. : ELSA PRO 100
Product Type : Self- Priming Monoblock Pump
Brand : CRI
Wattage : 0.75 kW
Electricity Connection : Single Phase
Rated Voltage : 220-240 Volt, 50 Hz, AC Power Supply
Pipe Size (Suction X Delivery) : 25X25 mm
Suction Capacity : 8 Meter
Head Range : 6 to 30 Meter (20 to 98 Feet)
Discharge Range : 3000 to 215 LPH
Winding Material : Copper
Speed : 2880 RPM
Material Of Construction :
Pump Casing : Cast Iron
Impeller : High Tensile Brass
Rotor : Aluminium Die Cast
Motor Shaft : SS 410
Cooling Fan : Poly Propylene - Co Polymer
Mechanical Seal : Carbon & Ceramic
Description
C.R.I. Self-priming monoblock pumpsets are power-driven by a totally enclosed fan cooled AC induction two pole motor, suitable for continuous duty. Motor stator is made of low watt loss silicon laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire and are varnish impregnated. Construction of motor frames and usage of quality materials result in high performance, noise free operation and low temperature rise thereby increasing the life cycle of the motor. Pumps volute chamber and impellers are designed to give the best possible hydraulic efficiency and suction lift characteristics. Non-self priming pumps with end suction and radial delivery.
Features
:
Built-in with imported Thermal Overload Protector.
Specially designed for wide voltage operation.
Powder coated multi-color stator body.
Sturdy and compact
Double sealed ball bearing, so no need of external lubrication.
