Brand : Generic ( Made in India )

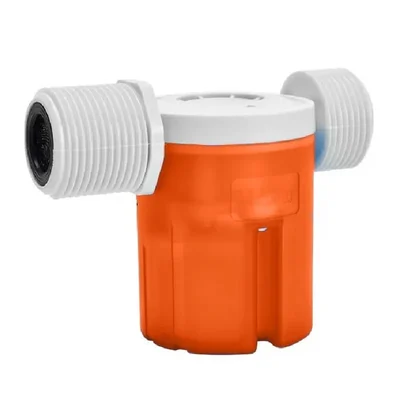

MSR 1'' Automatic Water Level Control Valve | High-Pressure Nylon | Inside Type, Side Inner | Without Electricity
SKU : TI-M1-50662
MRP : ₹1000
₹509
49% OFF!
-
1
+
Get Extra ₹8 OFF on Prepaid Orders
Delivery By: Nov 26 - Nov 28
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
MSR 1'' Automatic Water Level Control Valve
10 Bars Maximum Operating Pressure
This water level controller works without electricity
Country of origin: India
Specification
  • Brand: Generic ( Made in India )
  • Weight (Approx.) : 150 gm
  • Model Number : ‎AE20
  • Product Name : Automatic Water Level Controller
  • Material : Nylon
  • Exterior Finish : Stainless Steel, Rubber
  • Inlet Connection Size : ‎1 Inches
  • Outlet Connection Size : ‎1 Inches
  • Inlet Connection Type : Threaded
  • Outlet Connection Type : ‎Threaded
  • Maximum Operating Pressure : 10 Bars
  • Number of Ports : ‎2
  • Specification Met : CE
  • Working pressure range : 0.2 to 15 kg;
  • Applicable medium : Clean water
  • Applicable medium temperature : ≤70 ℃;
  • High temperature resistant medium temperature : 70 ℃ ~ 120 ℃
  • Product Dimensions (L x W x H) : ‎14 x 7 x 8 Cm
Description
Discover a smart and efficient solution for water management with our Fully Automatic Water Level Control Valve. Designed to operate without electricity, this valve intelligently refills water when levels are low and automatically stops when the tank is full—offering a hassle-free and energy-free experience. Its simple operation, long lifespan, and low failure rate make it a reliable choice for conserving water resources.
Compact in size with an attractive design, it is highly practical and easy to install in a wide range of applications. Built using durable nylon PA66, stainless steel screws, and food-grade natural rubber, the valve ensures safe and long-lasting performance. With high temperature resistance ranging from 70°C to 120°C, it delivers stable operation even in demanding environments.

Applications

 :
  • This Valve Is The Replacement Of The Traditional Float Ballcock, Which Can Be Applied To Various Systems Of High Water Tanks, Pools, Water Towers Of The Industry ,Civil Construction, etc.

 Precautions :
  • Water pressure reference value : minimum water pressure 0.2kg; maximum water pressure 15kg
  • This product should be installed vertically on a horizontal surface
  • This product is the liquid level control valve, when mounted, it must float vertically downward
  • First water pipe is fixed in a horizontal plane, and then the valve of the present specification is attached to its inlet conduits. The main inlet pipe should be suitable for the nominal diameter of the valve
  • When used, the beginning of the shut-off valve should be fully open valve
  • If the same tank installing two valves, should be maintained at the same level.
  • Before installing and using this valve, be sure to clean the impurities in the pipeline
  • When using the built-in products, there will be water leakage at the bottom, which is normal.

Maintenance :
  • When your water quality is poor or hard and impurities , so it needs proper maintenance. When the user finds that the water filling time is prolonged or the leakage of water then MSR water level control valve is removed from the water inlet pipe, and cleaning be performed.
