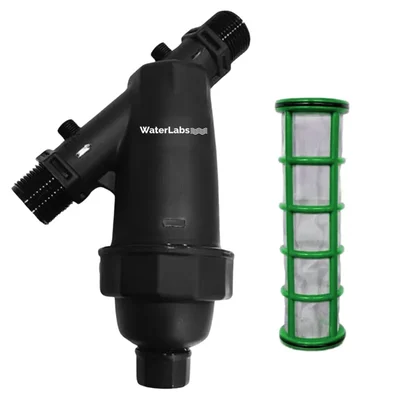

• Filtration rating: 50 microns, effective for filtering fine sand, dirt, and sediments
• Mesh material: Durable 304 grade stainless steel mesh, rust-resistant
• Size: 1 inch (25mm) inlet and outlet, compatible with standard irrigation fittings
• Filter body: UV stabilized material for long-lasting outdoor use
• Dimensions: Approximately 9D x 17.5W x 17H centimeters
• Flow rate: High flow rate suitable for agricultural and garden irrigation systems
• Warranty: 1 year manufacturer warranty
• Country of origin: India

Features

• High precision filtration with 50-micron mesh for effective removal of fine sand, dirt, and sediments
• Durable and rust-resistant 304 grade stainless steel mesh
• UV stabilized filter body for enhanced durability in outdoor environments
• Suitable for 1-inch (25mm) irrigation systems and water lines
• Helps prevent clogging of pumps, sprinklers, and drip irrigation systems
• Easy to install and maintain for long-term use
• Supports high flow rate for efficient irrigation performance
• Provides protection for agricultural, garden, and household irrigation equipment

Applications

• Irrigation Systems: Primarily used in drip and sprinkler irrigation setups to prevent clogging caused by sand, dirt, and sediments.
• Water Tanks: Installed in water tanks to filter out sediments before water is distributed through pipelines.
• Domestic Water Supply: Protects household plumbing and appliances by filtering particulates from the water supply.
• Agricultural Water Management: Used in farms to maintain clean water flow for crops and livestock.
• Industrial Irrigation: Suitable for industrial-scale irrigation and filtration needs to protect equipment and machinery from damage due to debris.

Usage

• Installation: Use standard fittings to connect the filter inline within your irrigation pipeline or water line. Make sure to follow the direction of water flow indicated on the filter to install the inlet and outlet correctly.​
• Operating: Turn on the water supply gradually to allow flow through the filter. The filter will trap fine sediments, sand, and dirt, protecting downstream irrigation equipment like pumps, sprinklers, and drip emitters.​
• Cleaning: Periodically shut off the water supply, open the filter housing by rotating the bottom cover, and remove the stainless steel mesh cartridge. Clean the mesh with water and a brush to remove collected debris, then reassemble.​
• Maintenance: Check the rubber gasket to ensure a tight seal before operation. Inspect the filter for damages or clogging and clean as required to maintain optimal filtration efficiency.
