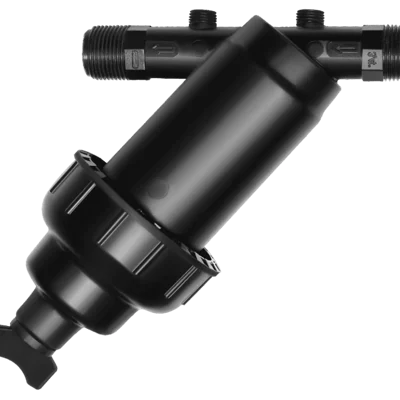

Automat 1 inch Y-Type Manual Disc Filter for Agriculture, Landscape and Turf Irrigation

• Model No :AQ 522Y
• Size : 1 Inch (2.54 cm approx)
• Material : High quality plastic body
• Max. Working Pressure : 6 kg/cm2
• Inlet/ Outlet Connection : 1 inch( 25mm) male BSP
• Range of Flow Rate : 8 m3/hr
• Recommended Flow : 6 m3/h (100 ltr/min)
• Filtration Surface Area : 147.5 cm2
• Distance between End Connections : 183 mm
• Filter Height : 245 mm

• Filter Width : 87 mm
• Cartridge Diameter : 47.5 mm

• Cartridge Length : 143 mm
• End Plug : 1/4 Inch (0.635 cm approx) Female Threaded
• Filter Disk (Standard) : 120 Mesh PP Disk (One removable Cartridge)

Features

• Disk filters designed for Outside to Inside flow.
• Auxiliary Connections : Two pressure gauge ports with 1/4" male threaded connections.
• Filter body and cap connected by threaded connection to sustain high pressure and easy opening and closing.
• High filtration Efficiency.
• Spring loaded Disc cartridge for uniform compression of Disks.
• UV Protected, chemical and high pressure resistant reinforced plastic material used.

Applications

• Household Water filtration
• Agriculture Irrigation
• Green Hose and small Farm Holdings
• Drip Irrigation
• Municipal Garden Irrigation

• Industrial Filtration
• Garden Lawn
