Specifications :

Model No : HT-122Y

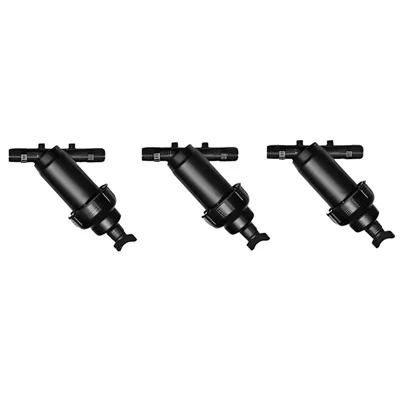

Product Type : Agriculture Y Type Screen Filter

Brand : Automat

Size : 1 Inch (2.54 cm approx)

Material : Polyamide

Max. Working Pressure : 8kg/cm2

Inlet/ Outlet Connection : 1 Inch (2.54 cm approx) BSP/NPT Male Thread

Range of Flow Rate : 5 -8 m3/hr

Recommended Flow : 7 m3/h (116.7 ltr/min)

Filtration Surface Area : 120 cm2

Distance between End Connections : 183 mm

Filter Height : 245 mm

Filter Width : 87 mm

Filtering Cartridge : 304/316 Grade Stainless Steel Screen

Cartridge Diameter : 48 mm

Cartridge Length : 151 mm

End Plug : 1/2 Inch (1.27 cm approx) Male Threaded

Filter Mesh (Standard) : Double Screen 30/120 Mesh

Screen filter is a type of water Filter used Primarily in Irrigation . By using a rigid or flexible screen it separates sand and other fine particles out of water for irrigation or industrial applications.
