Brand: TURTLE

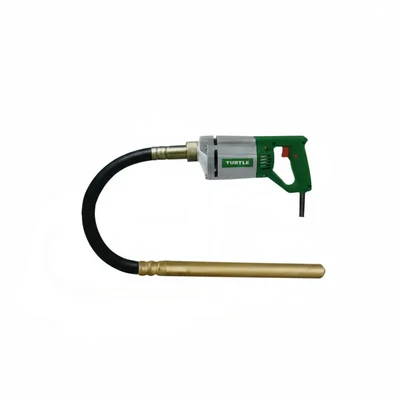

Turtle Gold 1250W 35 mm Electric Concrete Vibrator (ST-953S) with 1 m Vibrating Needle
SKU: TI-TG-52867
Delivery By: Dec 21 - Dec 23
MRP : ₹4500 ₹3996
11% OFF!
Delivery By: Dec 21 - Dec 23 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹3996 (Including GST)
MRP : ₹4500
11% OFF!
Get Extra ₹60 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle Gold 1250W 35 mm Electric Concrete Vibrator (ST-953S)
1 m Vibrating Needle
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 6 kg
- Net Quantity : 1 pc
- Rod Diameter : 35 mm
- Model : ST-953S
- Rated Input Power : 1250W
- No-Load Speed : 5000 RPM
- Frequency : 50 Hz
- Voltage : 230 V
- Needle Size : 1 m x 35 mm
Description
The Turtle Gold 1250W 35 mm Electric Concrete Vibrator (ST-953) is a high-performance tool for efficient concrete consolidation. Featuring a 1 m vibrating needle and 5000 RPM motor, it ensures uniform vibration, optimal concrete density, and reduced air pockets in foundation, slab, and column construction.
Features
:- Powerful Copper Motor : Provides strong, consistent performance for effective consolidation.
- Good Quality Aluminium Housing : Ensures durability and long tool life in tough construction environments.
- Compact Design : Allows for easy handling and maneuverability around rebar and tight spaces.
- Effective Consolidation : Efficiently removes air pockets and excess water to increase concrete strength.
- Fast Heat Dissipation : Air housing design prevents overheating during continuous operation.
- Self-Locking Switch : Enables comfortable, long duration work without continuously holding the trigger.
Applications
:This Turtle 1250 W Electric Concrete Vibrator is used in these following construction sites :
- High-rise buildings
- Bridge construction
- Highway projects
- Industrial plants
- Dams and water treatment plants
- Foundation and slab construction
Usage
:User Instructions :
- Preparation : Ensure the concrete is freshly poured and the needle is clean. Plug the vibrator into a 230 V power source.
- Activation : Turn the unit on and engage the self-locking switch for continuous operation.
- Immersion : Insert the 35 mm vibrating needle vertically and quickly into the wet concrete, allowing it to penetrate its full depth (or near the bottom).
- Vibration Time : Allow the needle to vibrate until air bubbles stop rising to the surface and a thin layer of cement paste forms around the needle (typically 5 to 15 seconds).
- Extraction : Slowly withdraw the needle (at a rate of about 1 inch per second) to allow the concrete to flow back into the space left by the needle.
- Placement : Reinsert the needle in overlapping sections, making sure to overlap the radius of the previous vibration spot by about 50%.
- Final Step : Turn the unit off and unplug it after the job is complete.
Maintenance :
- Immediate Cleaning : After each use, immediately clean the vibrating needle by immersing it in a bucket of water and running the vibrator briefly to prevent concrete from hardening on the shaft.
- Housing Clean : Wipe the aluminum housing and motor unit clean with a dry cloth. Do not use water to clean the motor housing.
- Storage : Store the vibrator in a dry, safe place away from moisture and direct sunlight.
- Inspection : Periodically check the vibrating needle and hose for cracks, bends, or damage. Inspect the power cord for cuts or fraying.
- Carbon Brushes : Consult the user manual or a qualified technician for timely inspection and replacement of the carbon brushes to maintain motor performance.
