Brand: TURTLE

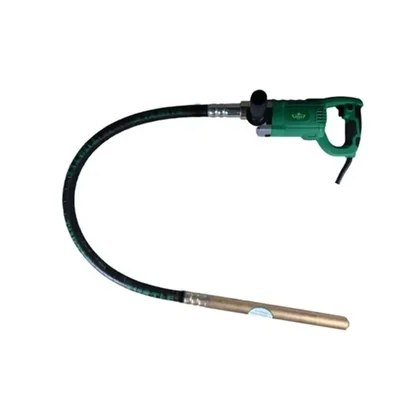

Turtle Gold 35 mm 1300 W Electric Concrete Vibrator (ST-954S) with 1 m Vibrating Needle
SKU: TI-TG-52752
Delivery By: Dec 19 - Dec 21
MRP : ₹5000 ₹4068
19% OFF!
Delivery By: Dec 19 - Dec 21 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹4068 (Including GST)
MRP : ₹5000
19% OFF!
Get Extra ₹61 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Turtle Gold 35 mm 1300 W Electric Concrete Vibrator (ST-954S)
1 m Vibrating Needle
Country of origin: China
Specifications
- Brand: TURTLE
- Weight (Approx.) : 6 kg
- Net Quantity : 1 pc
- Rod Diameter : 35 mm
- Model : ST-954S
- Rated Input Power : 1300W
- No-Load Speed : 4800 RPM
- Frequency : 50 Hz
- Voltage : 220 V
- Needle Size : 1 m x 35 mm
Description
The Turtle Gold 35 mm 1300 W Electric Concrete Vibrator (ST-954S) is a high-performance tool for compacting concrete. It features a 1 m vibrating needle, 1300W motor and 35 mm diameter head. Ideal for construction and infrastructure projects, it ensures efficient removal of air pockets and uniform concrete consolidation, enhancing strength and durability.
Features
:- High-efficiency motor for consistent performance
- Compact design for easy maneuverability
- Effective in removing air pockets and excess water from concrete
- Ensures uniform consolidation and increased strength
- Suitable for various concrete applications (foundations, slabs, columns, etc.)
Applications
:This precise and lightweight concrete vibrator is best suited for :
- Residential Construction : Compacting small slabs, footings, and retaining walls.
- Narrow Forms : Ideal for vibrating concrete in thin sections, beams, and highly reinforced columns where a 35mm head is required.
- Pre-Casting : Achieving high-quality surface finishes in pre-cast elements and molds.
- Detailed Work : Perfect for projects requiring maneuverability and precision due to its lighter weight and smaller needle.
Usage
:User Instructions :
- Preparation : Connect the vibrator to a stable 220V power supply. Ensure the 1.5-meter shaft and 35mm needle are securely attached to the motor unit.
- Insertion : Insert the needle vertically into the fresh concrete. Penetrate the needle quickly and then hold steady.
- Vibration : Vibrate the concrete for 5 to 15 seconds. Stop vibrating when the surface appears glossy and no more large air bubbles rise.
- Withdrawal : Slowly and steadily pull the needle out of the concrete, ensuring the hole collapses behind it.
- Spacing : Place the next insertion so the area of compaction overlaps the previously vibrated zone.
- Avoidance : Do not allow the needle to rest on or strike the rebar, as this can weaken the concrete bond and damage the needle.
Maintenance :
- Cleaning : After every use, immediately clean the entire shaft and needle to prevent concrete from hardening on the surface. Use a soft brush and water.
- Inspection : Regularly check the 1.5-meter flexible shaft for any signs of kinking, damage, or wear. Inspect the 35mm needle head for excessive abrasion.
- Motor Care : Keep the motor housing clean and free of dust. Ensure the cooling vents are not blocked.
- Lubrication : Periodically check and lubricate the flexible shaft couplings as specified in the owner's manual to prevent overheating and premature wear.
- Storage : Store the unit in a dry, covered area. Coil the shaft loosely for storage; avoid severe bends.
