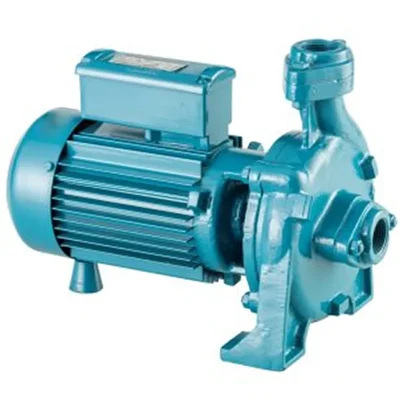

CRI 0.5Hp Single Phase Centrifugal Monoblock Pump, 25x25mm Pipe Size, 21m Max Head, 4560LPH (VIRAT 525M)-1 Year Warranty

Brand : CRI

SKU : TI-C0-38981

MRP : ₹9500

₹6000

37% OFF!

Get Extra ₹90 OFF on Prepaid Orders

Delivery By: Jul 2 - Jul 4

Add to Cart

Buy Now

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

CRI 0.5 Hp Single Phase Centrifugal Monoblock Pump

21m Max. Head, 4560 LPH Max. Flow

1 Year Warranty

Country of origin: India

Specification

Brand: CRI
Power : 05 hp
Weight (Approx.) : 12 kg
Flow Rate : 76 lpm
Head : 21 meter

Model No. : VIRAT 525M
Product Name : Centrifugal Monoblock Pump
Rated Voltage : 220 to 240 Volt, 50 Hz, AC Power Supply
Electricity Connection : Single Phase
Wattage : 0.37 kW
Pipe Size : 25 x 25 mm (1 x 1 inch)
Head Range : 21 to 17 Meter (68 to 55 Feet)
Discharge Range : 0 to 4560 LPH (0 to 76 LPM)
Speed : 2880 RPM
Maximum Suction Lifting Capacity : 7 Meter (22 Feet)
Class of Insulation : B
Max. Ambient Temperature : 40 °C
Sealing : Mechanical Sealing
Type of Duty : S1 (Continuous)
Method of Starting : Permanent Split Capacitor (PSC)
Direction of Rotation : Clockwise from Driving End

Description

C.R.I. Centrifugal Monoblock pumpsets are powered by a totally enclosed fan cooled AC induction two pole motor. Motor stator is made of low watt loss silicon steel laminations assembled under pressure and rigidly locked in the frame. The windings are of high-grade enameled copper wire offer excellent resistance and are varnish impregnated. Construction of motor frame and usage of quality materials result in high performance and low temperature rise thereby increasing the life cycle of the motor.

Features

High operating efficiency resulting in lower power consumption.
Good suction lift characteristics
Inbuilt with thermal overload protector
Specially designed for wide voltage operation
SS 304 impellers are used in specific pump models to increase the life of the pump
Dynamically balanced rotating parts including rotor and impeller ensures minimum vibration and longer life
Back pull-out design for easy servicing and repair
Double shielded ball bearings, so no need of external lubrication
Available in CI & Aluminium frame
