Brand : CRI

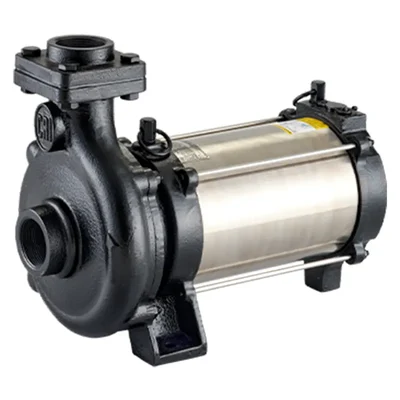

CRI 0.5Hp Single Phase Openwell Submersible Pump, 17m Max. Head, No Controller Need (PLANO ULTRA 50) - 1 Year Warranty
SKU : TI-C0-36146
MRP : ₹9500
₹6800
28% OFF!
-
1
+
Get Extra ₹102 OFF on Prepaid Orders
Delivery By: Jun 5 - Jun 7
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
CRI 0.5 Hp Single Phase Openwell Submersible Pump (PLANO ULTRA 50)
17m Max. Head, 144 LPM Max, Discharge
Designed with inbuilt capacitor, no need for separate control panel
1 Year Warranty
Country of origin: India
Description
CRI's Plano ultra Series Pumps offer a reliable, efficient, and durable solution for open wells and tanks with varying water levels. This innovative series operates without a coolant medium, instead relying on external cooling to dissipate heat while submerged. A dual-sealing system protects the motor from fluid ingress and prevents debris entry which ensures reliable operation. With a rating of IP68, these pumps boost the highest level of ingress protection, guaranteeing durability and performance.

Features

 :
  • Double sealing : Effectively prevents water ingress inside the motor
  • IP68 Protection : Superior resistance from water, dust & dirt ensuring reliable performance
  • Self Cooling Design : Designed to work without any coolant medium
  • Sealed ball bearing : Designed with Ball bearing construction for high efficiency and Less Energy consumption
  • Rewindable design : Easy to repair and serviceable construction
  • Inbuilt Panel - Plug and Play : Designed with inbuilt capacitor, no need for separate control panel
  • Thermal Overload protector : In-built TOP embedded in stator windings to prevent overheating
  • Copper Winding : 99.97% pure EC Grade copper Winding wire ensures longer Lifespan

Specification

 :
  • Product Type: Power - 0.5HP
  • Brand: CRI
  • Power : 0.5 hp
  • Weight (Approx.) : 11 kg
  • Flow Rate : 144 lpm
  • Head : 17 meter
  • Model No. : PLANO ULTRA 50
  • Product Name : Openwell Submersible Pump
  • Wattage : 0.37 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 220 - 240V, 50Hz, A.C. Supply
  • Outlet Size (Suction x Delivery) : 25x25 mm
  • Head Range : 17 to 7.5 Meter (55 to 24 Feet)
  • Discharge Range : 0 to 144 LPM (0 to 8640 LPH)
  • Winding Material : Copper
  • Control Panel Required : NO

Applications

 :
  • Openwell submersible pumps are used in many different industries. These include firefighting, offshore drilling rigs. They are also used in underground storage tanks and reservoirs, swimming pools, cooling water circulating systems, industrial irrigation.

WARRANTY :
  • 1 Year Warranty
