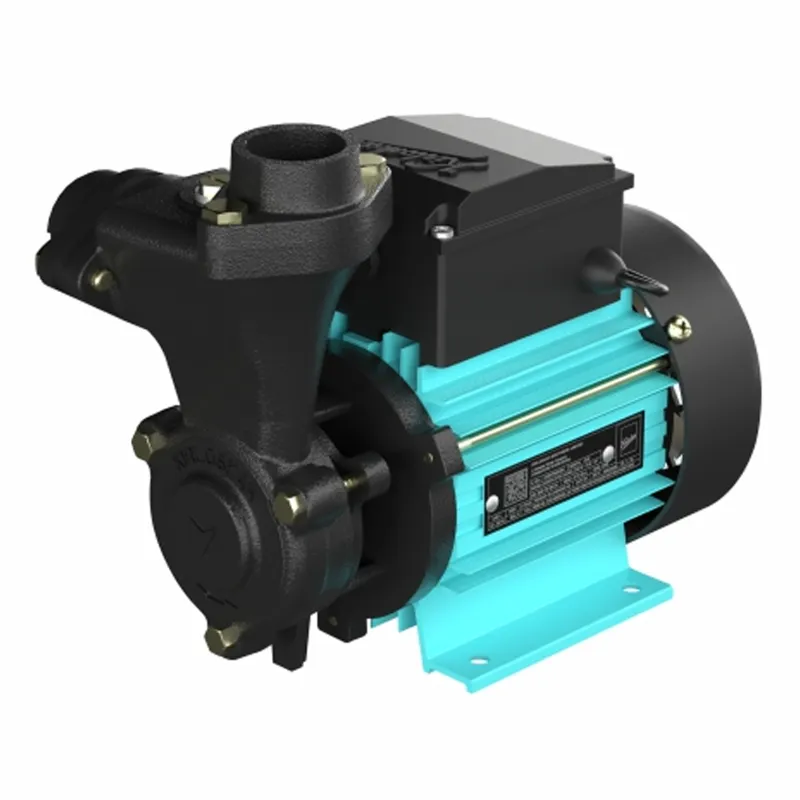

Kirloskar (RIAN-II) Self-Priming Monoblock Pump
0.5 HP, Single Phase
21M Max. Head, 33 LPM Max. Discharge
1 Year Warranty
- Farm & Garden
- Pumps & Motors
- Food Processing
- Workshop, DIY & MRO
Brand : Kirloskar
Kirloskar 0.5 HP Single Phase Mini Self Priming Monoblock Pump, 21m Max. Head, 25x25mm (RIAN-II) - 1 Year Warranty
SKU : TI-K0-18054
MRP : ₹5600
₹3499
38% OFF!
-
1
+
620 people have viewed this recently
Delivery By: Jun 19 - Jun 21
Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
Short Description
Country of origin: India
Specification
- Brand: Kirloskar
- Power : 0.5 hp
- Weight (Approx.) : 5.5 kg
- Flow Rate : 33 lpm
- Head : 21 meter
- Model No : RIAN-II
- Product Type : Self-Priming Monoblock Pump
- Brand : Kirloskar
- Wattage : 0.37 kW
- Electricity Connection : Single Phase AC Power Supply
- Rated Voltage : 220 Volt, 50 Hz
- Current Rating : 2 Amp.
- Head Range : 6 to 21 Meter (19 to 68 Feet)
- Discharge Range : 33 to 11 LPM (1980 to 680 LPH)
- Pipe Size (Suction X Delivery) : 25 x 25 mm
- Weight : 7 Kg (Approx.)
Material Of Construction :
- Impeller : Brass
- Delivery Casing : Cast Iron
- Motor Body : Aluminium
- Pump Shaft : Carbon Steel
- Cover NDE : Aluminium
- Seal : Carbon Vs Ceramic
Description
A self-priming monoblock pump is a type of liquid pump that combines the features of being self-priming with a monoblock design. A self-priming monoblock pump is designed to automatically evacuate air from the suction line and prime itself with liquid before starting normal pumping operations. This feature eliminates the need for manual priming and ensures efficient operation. The monoblock design integrates the pump and motor into a single unit, reducing space requirements and simplifying installation.
Features
:- Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with a uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
- Advanced Electrical Design : Lesser current for same output (compared to any other similar products)
- Wide Voltage Range Operability : The motor is designed to withstand wide voltage fluctuations from 180 to 260 volts and reduces chances of motor burning due to low / high voltage.
- Lightweight and Compact Design : It allows users to carry the pump anywhere with ease, adding to its portability and convenience of use.
- High Suction Lift : The pump has a high suction lift capacity.
- Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- TOP - Thermal Overload Protector : The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
- Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
Applications
:- Water supply to overhead tanks in bungalows
- Gardens / Fountains
- Feedwater to RO plants
- Domestic water supply
- Construction sites
- Car washing
- Lawn sprinklers
WARRANTY :
- 1 Year Onsite Warranty.
