Brand : Generic (Imported)

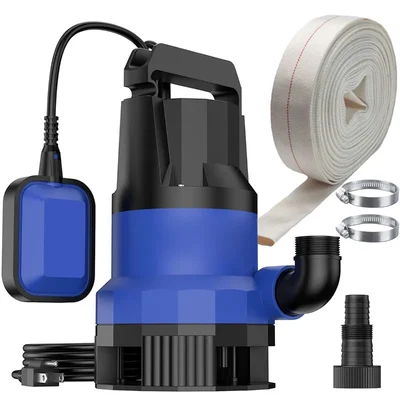

Heavy Duty 0.5Hp 1Phase PP Body Dewatering Sewage Submersible Pump With Hose Pipe, 5.5m Head, 10500 LPH-1 Year Warranty
SKU : TI-HD-37037
MRP : ₹11200
₹7499
33% OFF!
-
1
+
Get Extra ₹112 OFF on Prepaid Orders
Delivery By: Jun 8 - Jun 10
Add to Cart
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heady Duty 0.5 Hp Single Phase Dewatering Sewage Submersible Pump
5.5m Max. Head, 10500 LPH Max. Discharge
With all required accessories
1 Year Warranty
Country of origin: China
Description
The drainage pump is used for draining pits and deep roadway underpasses, as well as for de-watering basements and courtyards subject to a flooding risk or groundwater. It is usually started automatically via float switches.

Features

 :
  • Built-in overload motor protector with automatic reset permanent split capacitor.
  • Impeller : Generic Imported
  • Superior Steel Shaft with rotor.
  • Mechanical seal: Carbon-ceramics.
  • Type Con galleggiante with float switch.
  • Protection: IPx8

Specification

 :
  • Product Type: Power - 0.5HP
  • Brand: Generic (Imported)
  • Power : 0.5 hp
  • Weight (Approx.) : 8 kg
  • Flow Rate : 175 lpm
  • Head : 5.5 meter
  • Product Name : Dewatering Sewage Submersible Pump
  • Power : 230 V AC Supply
  • Wattage : 0.37 kW
  • Electricity Connection : Single Phase
  • Max. Head Range : 5.5 Meters (18 Feet)
  • Max Submersible Depth : 7.5 Meter (25 Feet)
  • Discharge Range : 10500 LPH (175 LPM)
  • Pipe Size (Suction x Delivery) : 50x50 mm (2x2 inch)
  • Solid Size : 35 mm
  • No Load Speed : 2800 RPM
  • Cable length : 5 Meter
  • Body Material : PP Body
  • Shaft Material : Stainless Steel
  • Fluid Temperature : Up to 60°C
  • Ambient Temperature : Up to 35°C

Note :
  • As the head or height increases the flow rate continues to decrease.

How To Operate :
  • Connect a discharge pipe with a diameter at least equal to the diameter of the pump outlet.
  • Immerse the pump in the liquid to be sucked, by making an angle of 45 degrees (to reduce the amount of air rapped in the pump body) the pump rests on the bottom, make sure it is on a flat and stable surface.
  • Make sure that no one is present in the liquid to be pumped.
  • Plug the pump to the mains.

Accessories

 :
  • 30m Long 2 inch Hose Pipe
  • Two Clamp
  • Float Switch
  • 5m Long Cable

Applications

 :
  • Submersible draining pumps is suitable for automatic fixed domestic applications and for draining cellars and garages subject to flooding, also particularly useful as a portable pump for emergencies such as draining waste from tanks or rivers, emptying muddy swimming pools, fountains or excavations and subways. These pumps can lift liquids even with suspended solids in sewage water from septic tank. Level float switch offers permanent and automatic pump operation.

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only
  • The warranty coverage is limited to the PUMP of the system, and does not extend to any ACCESSORIES.

Warranty Terms :
  • Dry Run Accidental Damages Are not covered in the warranty
  • For claiming the warranty please drop a mail at [email protected] with proper Warranty Card, bill or Order ID.
  • You have to send the product to the sellers warehouse.
  • Buyer has to bear the courier charges of both side for sending the product.
