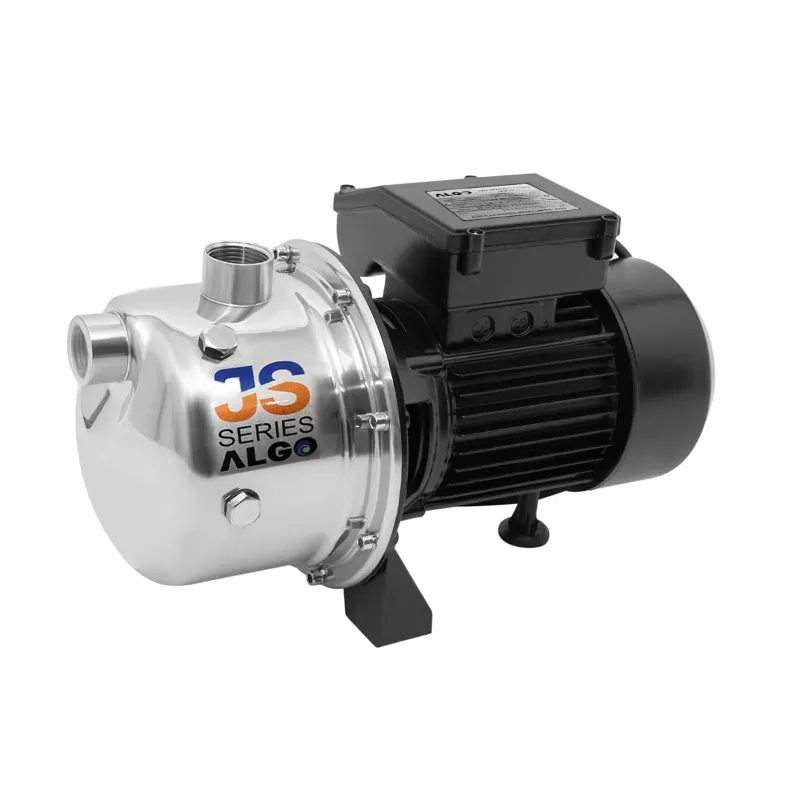

Algo 0.75 Hp Single Phase Self Priming SS Jet Pump 35m Head, 55 LPM Discharge, 25x25mm - 1 Year Warranty (JS-3-05S)
Brand:  ALGO

Algo 0.75 Hp Single Phase Self Priming SS Jet Pump 35m Head, 55 LPM Discharge, 25x25mm - 1 Year Warranty (JS-3-05S)

SKU: TI-A0-18814
₹7699 (Including GST)
MRP : ₹13000
Get extra ₹115 Discount (On Checkout)
delivery by
Delivery By: May 28 - May 30
Qty:
Easy Return & Refund
Easy Return
& Refund
Quality Assurance
Quality
Assurance
Trusted Delivery
Trusted
Delivery
After Sales Assistance
After Sales
Assistance
Buyer Protection
Buyer
Protection

Short Description

Algo 0.75 Hp Self Priming SS Jet Pump (JS-3-05S)
35M Max. Head, 55 LPM Max. Discharge
1 Year Warranty
Country of origin: India

Description

A shallow well jet pump is a type of jet pump specifically designed to draw water from shallow wells and to give best hydraulic efficiency and suction lift characteristics. These pumps are mounted above ground and are non-submersible, making them suitable for applications where the water source is relatively close to the surface. Before starting a shallow well jet pump, it must be primed to ensure there is no air in the pump housing. Priming involves filling the priming vent with water until it reaches the top of the vent. Once primed, turn on the power to start the pump. The impeller creates suction that pulls water up through the suction pipe and into the pump, where it is pressurized and then delivered for various applications.

Features

 :
  • Energy Efficient Motor With Tharmal Overload Protection
  • Large Delivery Lift
  • High Strength 304 SS Head For Corrosion Resistance & Abrasion
  • Easy Installation
  • Lower Noise

Specification

 :
  • Brand: ALGO
  • Power : 0.75 hp
  • Weight (Approx.) : 10.2 kg
  • Flow Rate : 55 lpm
  • Head : 35 meter
  • Model No : JS-3-05S
  • Product Type : Jet Pump
  • Brand : Algo
  • Power : 0.75 Hp (0.55 kW)
  • Rated Voltage : 230 Volt, 50 Hz (PSC)
  • Electricity Connection : Single Phase
  • Head Range : 15 to 35 Meter (49 to 114 Feet)
  • Discharge Range : 55 to 9 LPM (3300 to 540 LPH)
  • Pump Size (Suction x Delivery) : 25 x 25 mm (1" x 1")
  • Duty : S1 (Continuous)
  • Protection : IP 54
  • Insulation Class : B
  • Speed : 2900 RPM
  • Max. Liquid Temperature : 50°C
  • Max. Ambient Temperature : 40°C
  • Suction Lift : Upto 7m
  • Mounting Type : Floor Standing

Material Of Construction :
  • Pump Casing : SS 304
  • Motor Body : Aluminium
  • Impeller : SS 304
  • Shaft : SS 304
  • Mechanical Seal : Carbon Ceramic
  • Bearing : Double Shielded Ball Bearing

Applications

 :
  • Residential
  • Irrigation
  • Small Farms
  • Pressure Boosting Units
  • Industrial Water Supply
  • Food Processing Industries
  • Washing Systems

WARRANTY :
  • 1 Year Warranty as per Algo Policy.
