Brand : ALGO
Algo 1Hp 10 Stage(4 inch) 1Ph Water Cooled Copper Winding Submersible Pump, 58m Head (Jeeto-10) - 1 Year Warranty
SKU : TI-A1-27209
MRP : ₹14599
₹9999
32% OFF!
-
1
+
Get Extra ₹150 OFF on Prepaid Orders
Delivery By: Jul 7 - Jul 9
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

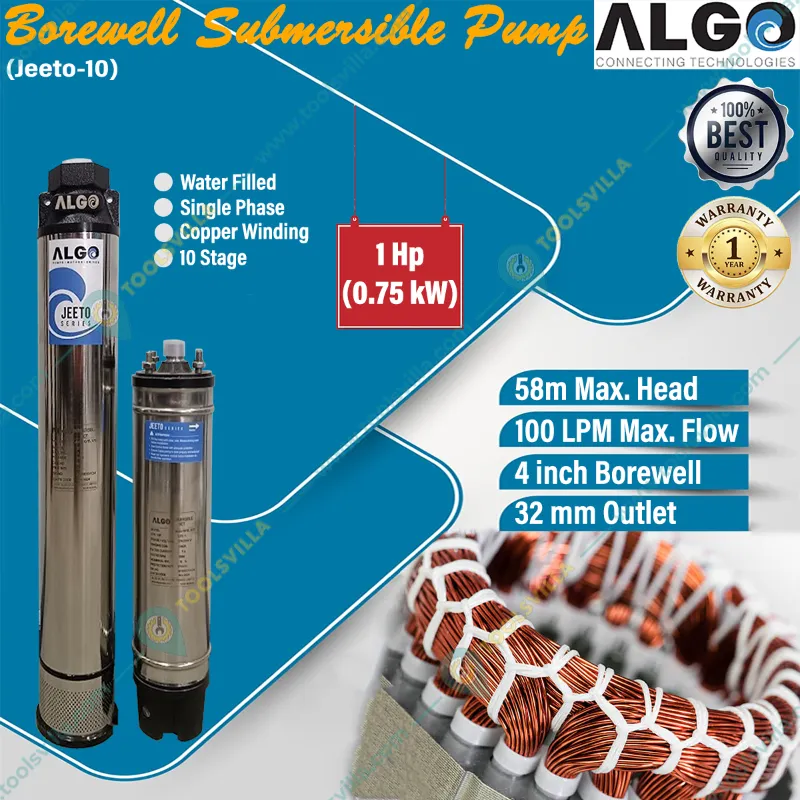

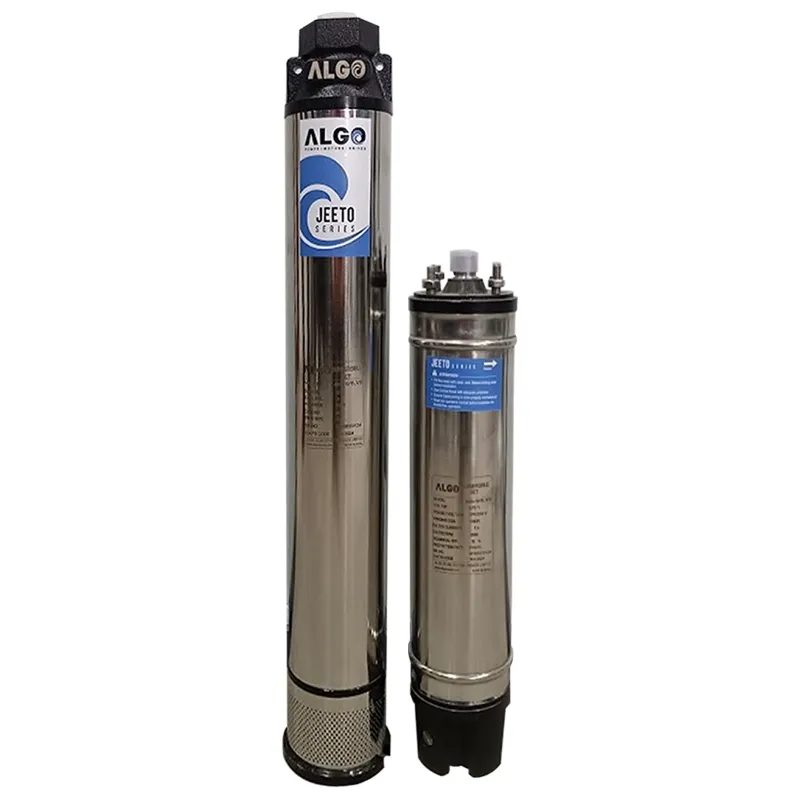

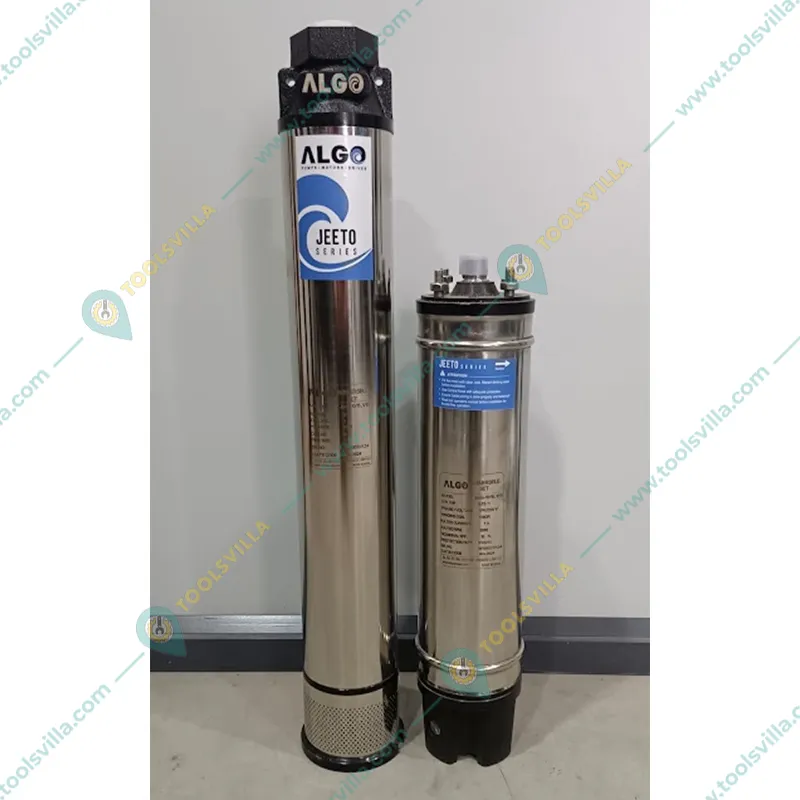

Algo 1 Hp 10 Stage Single Phase 4 inch Borewell Submersible Pump
58m Max. Head, 100 LPM Max. Discharge
Water Cooled Technology, Copper Winding
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 1 hp
  • Weight (Approx.) : 15 kg
  • Flow Rate : 100 lpm
  • Head : 58 meter
  • Model No : Jeeto-10
  • Product Name : Borewell Submersible Pump
  • Wattage : 0.75 kW
  • Voltage : 180-230 Volt, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Head Range : 58-21 Meter (190-68 Feet)
  • Discharge Range : 0-100 LPM (0-6000 LPH)
  • No. of Stages : 10
  • Outlet Size : 32 mm
  • Borewell Size : 4 inch (100 mm)
  • Cooling Type : Water Filled
  • Speed : 2880 RPM
  • Winding Material : Copper
  • Degree of Protection : IP 58
  • Duty : S1 (Continuous)

Material of Construction :
  • Suction Housing : Cast Iron
  • Pump Shell : SS 202
  • Pump Shaft : SS
  • Impeller : Modified PPO > 20% GFN
  • Diffuser : Modified PPO > 20% GFN
  • Discharge Housing : Cast Iron
  • Motor Shell : SS 202
  • Upper Housing : Cast Iron
  • Lower Housing : Cast Iron
  • Rotor : Electrolytic Grade Aluminium
  • Bearing : Thrust Bearing
Description
The Algo 1Hp 10 Stage Submersible Pump is designed to provide efficient and reliable water solutions for various applications. With a robust construction and advanced features, this pump is ideal for residential, agricultural and industrial use.

Features

 :
  • Wide voltage range operation
  • Energy saving design
  • High-quality copper winding
  • High head range
  • Maximum floe rate capacity

Applications

 :
  • Agriculture
  • Residential

Warranty :
  • 1 Year Warranty
