Brand : Kirloskar

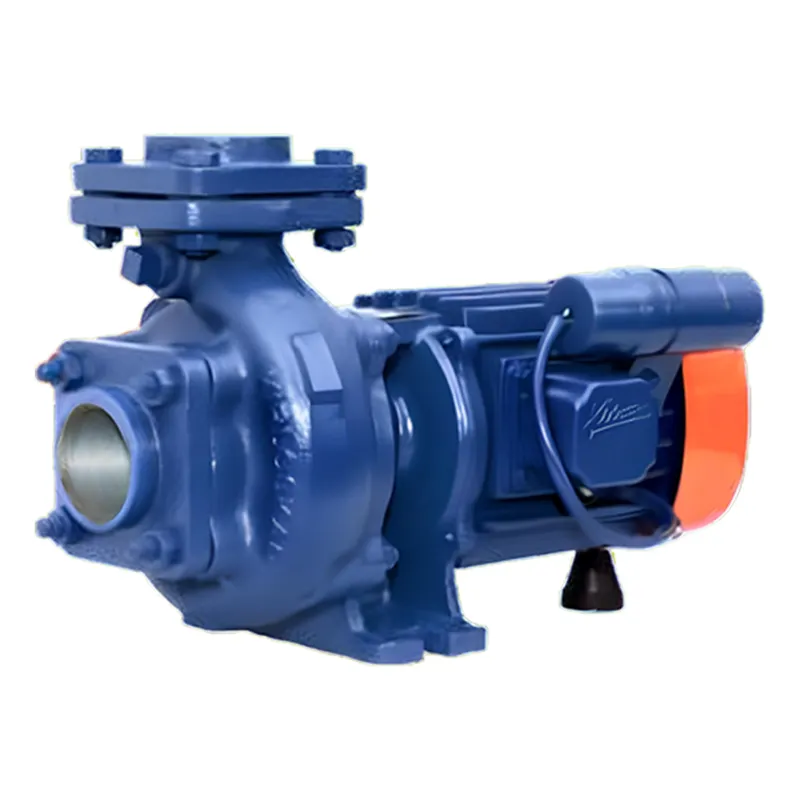

Kirloskar 1 Hp Single Phase Centrifugal Monoblock Pump, 108LPM, 40X40mm (KDS 128) - 1 Year Warranty
SKU : TI-K1-21196
MRP : ₹17379
₹12950
25% OFF!
-
1
+
3035 people have viewed this recently
Get Extra ₹194 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar 1 Hp Single Phase Centrifugal Monoblock Pump
23m Max Head, 108 LPM Max. Discharge
40 x 40 mm Pipe Size
1 Year Warranty
Country of origin: India
Specification
  • Brand: Kirloskar
  • Power : 1 hp
  • Weight (Approx.) : 24 kg
  • Flow Rate : 108 lpm
  • Head : 23 meter
  • Model No. : KDS 128
  • Product Type : Centrifugal Monoblock Pump
  • Brand : Kirloskar
  • Motor Power : 0.75 kW
  • Power : 240 V, 50 Hz, AC Power Supply
  • Electricity Connection : Single Phase
  • Head Range : 17 to 23 Meter (55 to 75 Feet)
  • Discharge Rate : 36 to 108 LPM (0.6 to 1.8 LPS)
  • Protection : IP 44
  • Pipe Size (Suction X Delivery) : 40 x 40 mm

Materials of Construction :
  • Impeller : Cast Iron/Noryl
  • Delivery Casing : Cast Iron
  • Motor Body : Cast Iron
  • Pump Shaft : Carbon Steel
  • Sealing : Mechanical Seal
Description
A centrifugal monoblock pump is a type of pump that integrates both the motor and the pump into a single, compact unit. Centrifugal monoblock pumps operate on the principle of converting rotational energy from the motor into kinetic energy in the fluid. Centrifugal monoblock pumps are widely used across various sectors like Agriculture, Domestic, Industrial use due to their reliability and efficiency

Features

 :
  • High Efficiency & Energy Saving Design : This monobloc pump has a higher output at lesser operating cost and longer life
  • Design to Prevent Overloading : Protects from overloading & trouble free operations for the years
  • Wide Voltage Design : This Pump has the capacity to operate from 180 to 240 volts
  • Automatic Air Release : Automatically releases air when the pump starts which ensures swifter and smoother operations
  • CED coating : Provides 5 times more protection from corrosion over conventional painting

Applications

 :
  • Gardening and small farm irrigation
  • Lawn sprinklers
  • Water supply for high rise buildings
  • Domestic and community water supply
  • Water transfer and circulation

WARRANTY :
  • 1 Year Onsite Warranty
