Brand : ALGO

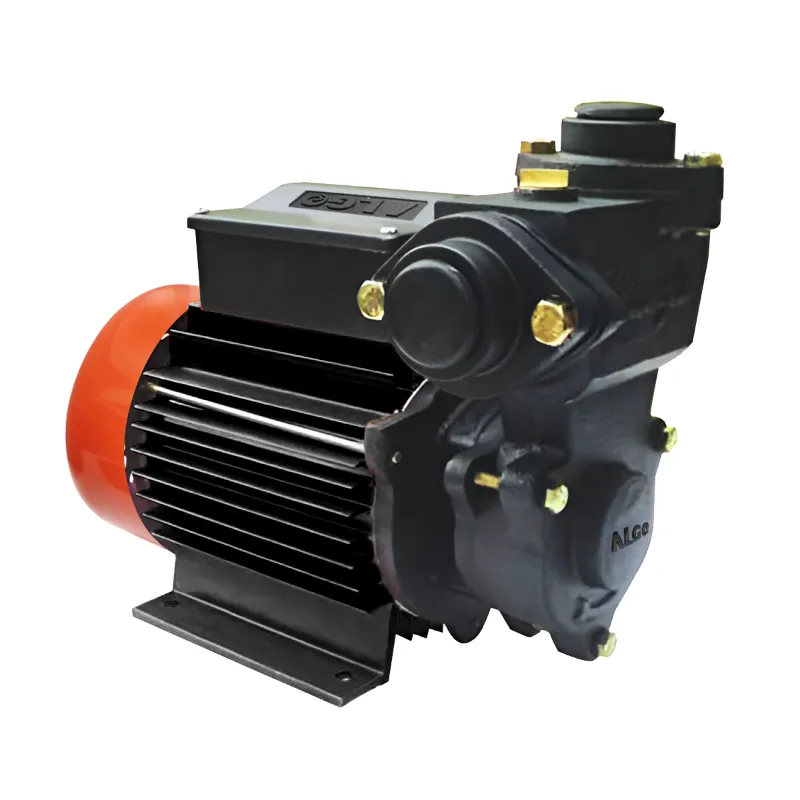

Algo 1 HP Single Phase Copper Winding High Pressure Self Priming Monoblock Pump, 328 Head - 1 Year Warranty (JaRO-100)
SKU : TI-A1-18897
MRP : ₹11400
₹7600
33% OFF!
-
1
+
Get Extra ₹114 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo (JaRO-100) 1.0 Hp High Pressure Self Priming Monoblock Pump
100M Max. Head
34 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 1 hp
  • Weight (Approx.) : 10.5 kg
  • Flow Rate : 34 lpm
  • Head : 100 meter
  • Model No : JaRO-100
  • Product Type : High Pressure Self Priming Monoblock Pump
  • Brand : Algo
  • Power : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Pump Size (Suction x Delivery) : 12.5x12.5 mm
  • Head Range : 10 to 100 Meter (32.8 to 328 Feet)
  • Discharge Range : 34 to 5 LPM (2040 to 0 LPH)
  • Winding Material : Copper
  • Duty : S1 (Continuous)
  • Protection : IP 44
  • Insulation Class : B
  • Suction Lift : Upto 8 Meter
  • Max. Liquid Temp. : 120°C
  • Max. Ambient Temp. : 40°C
  • Max. Operating Pressure : 10 Bar

Material Of Construction :
  • Pump Casing & Brackets : Cast Iron
  • Motor Body : Cast Iron/Aluminium
  • Impeller : Forged Brass
  • Shaft : SS410
  • Mechanical Seal : Carbon  Ceramic
  • Bearing : Double Shielded Ball Bearing
Description
Algo JaRO Series High-pressure Self-priming monoblock pumps are a type of regenerative pump that can re-prime themselves when under lift conditions. These monoblock pumps are suitable for pumping water up to high head and have a high discharge capacity. They are designed for wide voltage operation, with double shielded ball bearings that can withstand temperatures up to 120°C. These  monoblock pumps find applications in various industries where water needs to be lifted or transferred from one place to another. Their ability to self-prime makes them ideal for use in applications where the water level may fluctuate or where access to the pump may be difficult.

Features

 :
  • Robust Design
  • High Head Applications
  • Heavy Duty Forged Brass Impeller
  • High Temperature upto 120°C

Applications

 :
  • Residential
  • Laundries
  • Boiler Feed
  • Pressure Boosting
  • Water Treatment Plants
  • Washing System
  • Lawn Sprinklers

WARRANTY :
  • 1 Year Warranty as per Algo Policy.
