Brand : ALGO

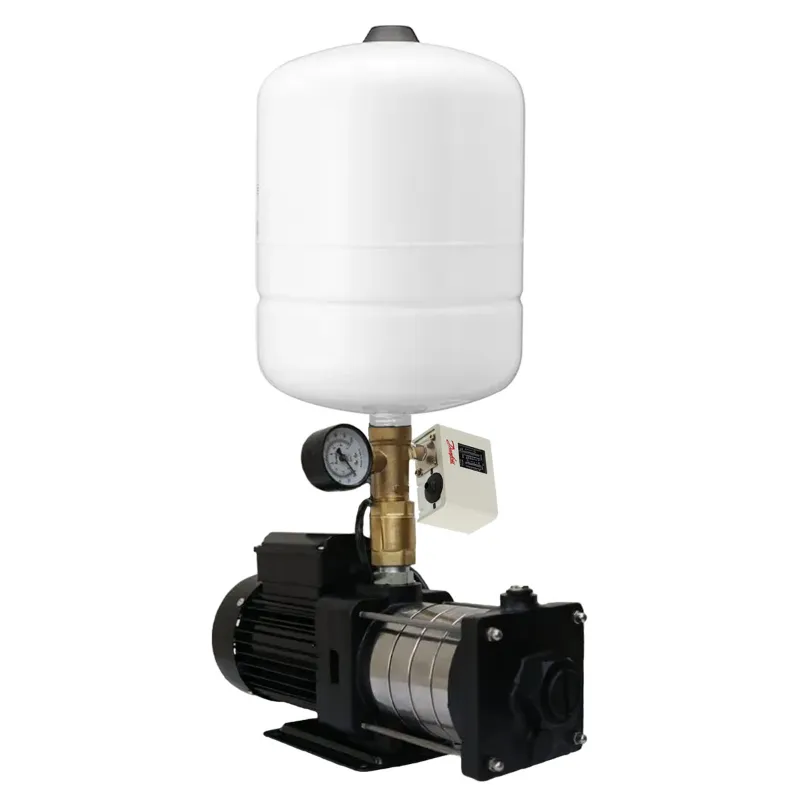

Algo 1 HP 4 Stage Single Phase SS Booster Pump With 24 Ltr. Impel Tank & Other Accessories (PMS4-100) - 1 Year Warranty
SKU : TI-A1-19948
MRP : ₹21000
₹17000
19% OFF!
-
1
+
Get Extra ₹255 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo 1 Hp 1Ph Multistage Horizontal Water Pressure Booster Pump
40m Max. Head, 80 LPM Max. Discharge
24L Impel Tank & Other Accessories are Included
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 1 hp
  • Weight (Approx.) : 23 kg
  • Flow Rate : 86 lpm
  • Head : 40 meter
  • Model No : PMS4-100
  • Product Type : Multistage Horizontal Water Pressure Booster Pump
  • Brand : Algo
  • Power : 1 Hp (0.75 kW)
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Pipe Size : 25X25 mm
  • No Of Stages : 4
  • Head Range : 40 to 15 Meter (131 to 49 Feet)
  • Discharge Range : 0 to 86 LPM (0 to 5160 LPH)
  • Max. Operating Pressure : 7 Bar
  • Tank Capacity : 24 Liter
  • Speed : 2900 RPM
  • Winding Material : Copper
  • Duty : S1 (Continuous)
  • Protection : IP 44/IP 55
  • Insulation Class : B/F
  • Max. Liquid Temperature : 120°C
  • Max. Ambient Temperature : 40°C
  • Thermal Overload Protection : Yes
  • Suitable For  : 4 Bathrooms

Material Of Construction :
  • Pump Suction & Delivery : SS 304/Cast Iron/SS 316
  • Motor Body : Aluminium
  • Impeller : SS 304/SS 316
  • Shaft : SS 410/SS 304
  • Mechanical Seal : Carbon Ceramic
  • Bearing : Double Shielded Ball Bearing
Description
A multistage horizontal booster pump is a type of pump that consists of multiple impellers arranged in series along a horizontal shaft. These pumps are designed to increase water pressure incrementally as the water passes through each impeller stage. By pulling water from the main water supply line and pushing it into the home plumbing system at a pressure greater than the incoming water, it raises the water pressure. When demand is strong, the 24 liter tank's reserve of pressurized water can be used. The pump will activate to maintain pressure and refill the tank when it is empty.

Accessories

 :
  • 24 Liter Impel Pressure Tank
  • Danfoss Pressure Switch
  • Pressure Gauge
  • 5 Way Brass Connector
  • Y Strainer

Applications

 :
  • Domestic Pressure Boosting
  • Hotels/Restaurants
  • Commercial Centres
  • Washing Systems

WARRANTY :
  • 1 Year Warranty.
