Brand: Kirloskar
Kirloskar 2 Hp Single Phase Centrifugal Monoblock Pump, 192 LPM, 32X25mm (KDS 246) - 1 Year Warranty
SKU: TI-K2-21202
3199 people have viewed this recently
Delivery By: Dec 14 - Dec 16




MRP : ₹25000 ₹17749
29% OFF!

3199 people have viewed this recently
Delivery By: Dec 14 - Dec 16
Easy Return
& Refund
& Refund

Quality
Assurance
Assurance

Trusted
Delivery
Delivery

After Sales
Assistance
Assistance

Buyer
Protection
Protection
₹17749 (Including GST)
MRP : ₹25000
29% OFF!
Get Extra ₹266 OFF on Prepaid Orders
QTY :
-
1
+
Short Description

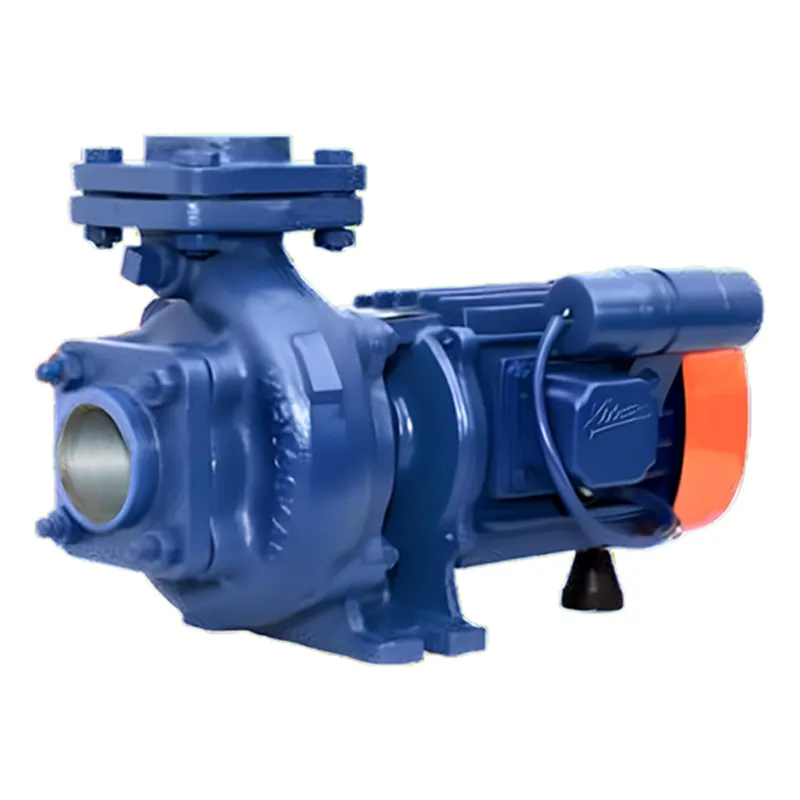

Kirloskar 2 Hp Single Phase Centrifugal Monoblock Pump
44m Max Head, 192 LPM Max. Discharge
32X25mm Pipe Size
1 Year Warranty
Country of origin: India
Specifications
- Brand: Kirloskar
- Power : 2 hp
- Weight (Approx.) : 39.5 kg
- Flow Rate : 192 lpm
- Head : 44 meter
- Model No. : KDS 246
- Product Type : Centrifugal Monoblock Pump
- Brand : Kirloskar
- Motor Power : 1.5 kW
- Power : 210 V, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Head Range : 30 to 44 Meter (98 to 144 Feet)
- Discharge Rate : 30 to 192 LPM (0.5 to 3.2 LPS)
- Pipe Size (Suction X Delivery) : 32 X 25 mm
- Dimension (LXWxH) : 575 x 295 x 380 mm
- Weight : 39 Kg (Approx.)
Materials of Construction :
- Impeller : Noryl
- Delivery Casing : Cast Iron
- Motor Body : Cast Iron
- Pump Shaft : Stainless Steel
- Sealing : Mechanical Seal
Description
A centrifugal monoblock pump is a type of pump that integrates both the motor and the pump into a single, compact unit. Centrifugal monoblock pumps operate on the principle of converting rotational energy from the motor into kinetic energy in the fluid. Centrifugal monoblock pumps are widely used across various sectors like Agriculture, Domestic, Industrial use due to their reliability and efficiency.
Features
:- Wide Voltage Design : The motor is designed to withstand wide voltage variation which reduces motor burning in case of low/high voltage
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which facilitates ease of maintenance thereby extending the life of the pump
- TOP - Thermal Overload Protector : The pump set features a Thermal Overload Protector that protects the motor from overloading, shielding of the motor and associated circuit from the effects of fault current
- CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating. It provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated
- Automatic Air Release : Automatically releases air when the pump starts ensuring swifter and smoother operations, thus eliminating the necessity of operating air release cock
- High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings
- Dynamically Balanced Rotating Parts - Minimum vibration protects components from damage during the operation, thus ensures consistent performance over longer time period as concentricity is maintained
- Designed to Prevent Overloading - Lesser chances of motor burning even if the pump operates at lower head than recommended as motor does not get overload thus ensures substantial saving from maintenance cost and breakdown
Applications
:- Gardening and small farm irrigation
- Lawn sprinklers
- Water supply for high rise buildings
- Domestic and community water supply
- Water transfer and circulation
WARRANTY :
- 1 Year Onsite Warranty
