Brand : ALGO

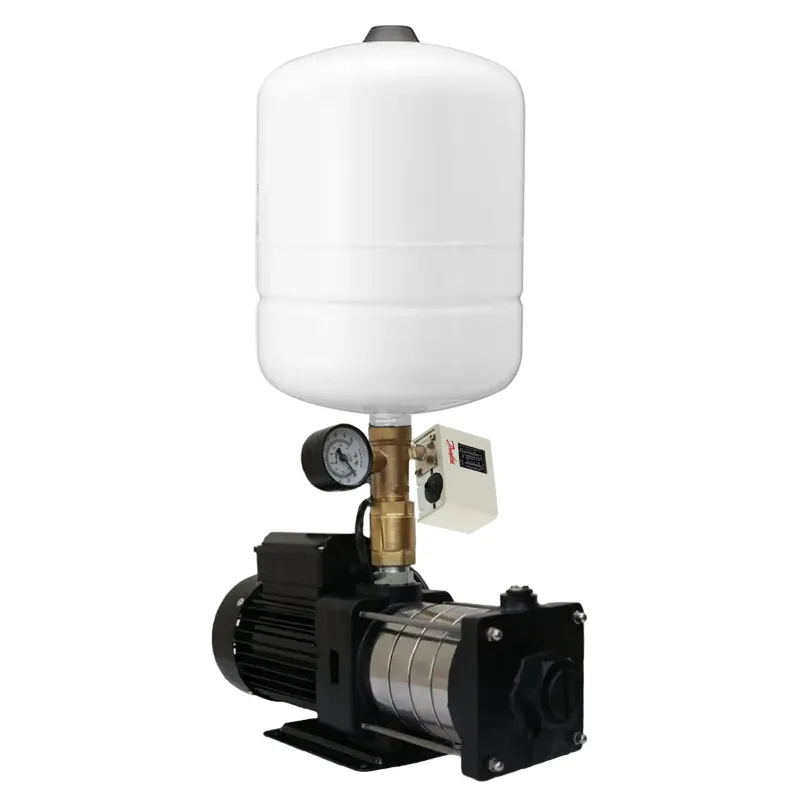

Algo 2HP 6 Stage Single Phase SS Booster Pump With 100L Impel Tank & Accessories (PMS4-200H) - 1 Year Warranty
SKU : TI-A2-19954
MRP : ₹45000
₹40100
11% OFF!
-
1
+
Get Extra ₹602 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo 2 Hp 1Ph Multistage Horizontal Water Pressure Booster Pump
60m Max. Head, 80 LPM Max. Discharge
100L Impel Tank & Other Accessories are Included
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 2 hp
  • Weight (Approx.) : 40.4 kg
  • Flow Rate : 86 lpm
  • Head : 60 meter
  • Model No : PMS4-200H
  • Product Type : Multistage Horizontal Water Pressure Booster Pump
  • Brand : Algo
  • Wattage : 1.5 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Pipe Size : 25X25 mm
  • No Of Stages : 6
  • Head Range : 60 to 20 Meter (196.9 to 65.6 Feet)
  • Discharge Range : 0 to 86 LPM (0 to 5160 LPH)
  • Max. Operating Pressure : 7 Bar
  • Tank Capacity : 100 Liter
  • Winding Material : Copper
  • Speed : 2900 RPM
  • Duty : S1 (Continuous)
  • Protection : IP 44/IP 55
  • Insulation Class : B/F
  • Max. Liquid Temperature : 120°C
  • Max. Ambient Temperature : 40°C
  • Thermal Overload Protection : Yes
  • Suitable For : 6-7 Bathrooms

Material Of Construction :
  • Pump Suction & Delivery : SS 304/Cast Iron/SS 316
  • Motor Body : Aluminium
  • Impeller : SS 304/SS 316
  • Shaft : SS 410/SS 304
  • Mechanical Seal : Carbon Ceramic
  • Bearing : Double Shielded Ball Bearing
Description
A multistage horizontal booster pump is a type of pump that consists of multiple impellers arranged in series along a horizontal shaft. These pumps are designed to increase water pressure incrementally as the water passes through each impeller stage. By pulling water from the main water supply line and pushing it into the home plumbing system at a pressure greater than the incoming water, it raises the water pressure. When demand is strong, the 100 liter tank's reserve of pressurized water can be used. The pump will activate to maintain pressure and refill the tank when it is empty.

Accessories

 :
  • 100 Liter Impel Pressure Tank
  • Danfoss Pressure Switch
  • Pressure Gauge
  • 5 Way Brass Connector
  • Y Strainer

Applications

 :
  • Domestic Pressure Boosting
  • Hotels/Restaurants
  • Commercial Centres
  • Washing Systems

WARRANTY :
  • 1 Year Warranty.
