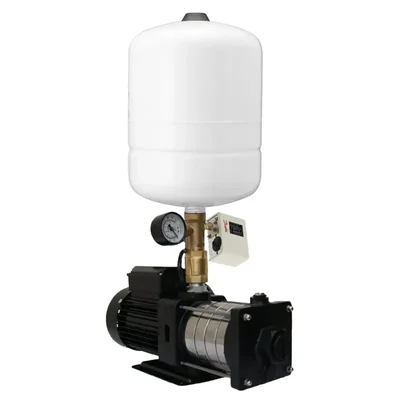

Algo 2HP 6 Stage Single Phase SS Booster Pump With 60L Impel Tank & Accessories (PMS4-200S) - 1 Year Warranty
SKU: TI-A2-19953
Estimated Delivery By: Oct 30 - Nov 1
MRP : ₹38000 ₹33000
13% OFF!
Estimated Delivery By: Oct 30 - Nov 1 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹33000 (Including GST)
MRP : ₹38000
13% OFF!
Get Extra ₹495 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
Algo 2 Hp 1Ph Multistage Horizontal Water Pressure Booster Pump
60m Max. Head, 80 LPM Max. Discharge
60L Impel Tank & Other Accessories are Included
1 Year Warranty
Country of origin: India
Specifications
- Brand: ALGO
- Model No : PMS4-200S
- Product Type : Multistage Horizontal Water Pressure Booster Pump
- Brand : Algo
- Wattage : 1.5 kW
- Electricity Connection : Single Phase
- Rated Voltage : 230 Volt, 50 Hz
- Pipe Size : 25X25 mm
- No Of Stages : 6
- Head Range : 60 to 20 Meter (196.9 to 65.6 Feet)
- Discharge Range : 0 to 86 LPM (0 to 5160 LPH)
- Max. Operating Pressure : 7 Bar
- Tank Capacity : 60 Liter
- Winding Material : Copper
- Speed : 2900 RPM
- Duty : S1 (Continuous)
- Protection : IP 44/IP 55
- Insulation Class : B/F
- Max. Liquid Temperature : 120°C
- Max. Ambient Temperature : 40°C
- Thermal Overload Protection : Yes
- Suitable For : 6-7 Bathrooms
Material Of Construction :
- Pump Suction & Delivery : SS 304/Cast Iron/SS 316
- Motor Body : Aluminium
- Impeller : SS 304/SS 316
- Shaft : SS 410/SS 304
- Mechanical Seal : Carbon Ceramic
- Bearing : Double Shielded Ball Bearing
Description
A multistage horizontal booster pump is a type of pump that consists of multiple impellers arranged in series along a horizontal shaft. These pumps are designed to increase water pressure incrementally as the water passes through each impeller stage. By pulling water from the main water supply line and pushing it into the home plumbing system at a pressure greater than the incoming water, it raises the water pressure. When demand is strong, the 60 liter tank's reserve of pressurized water can be used. The pump will activate to maintain pressure and refill the tank when it is empty.
Accessories
:- 60 Liter Impel Pressure Tank
- Danfoss Pressure Switch
- Pressure Gauge
- 5 Way Brass Connector
- Non Return Valve
Applications
:- Domestic Pressure Boosting
- Hotels/Restaurants
- Commercial Centres
- Washing Systems
WARRANTY :
- 1 Year Warranty.
