A self-priming monoblock pump is a kind of pump that has both a monoblock design and self-priming characteristics. Before beginning regular pumping operations, a self-priming monoblock pump is made to automatically remove air from the suction line and prime itself with liquid. This feature guarantees effective operation and removes the need for manual priming. Installation is made easier and requires less space thanks to the monoblock design, which combines the pump and motor into a single unit.
Features
:
High Efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Cathodic Electro Deposition (CED) Coating : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
Wide Voltage Range : The motor is designed to withstand wide voltage variation from 160 to 260 volts and reduces chances of motor burning due to low/high voltage.
Shielded Ball Bearing : The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
High Suction Lift : The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
Enhanced Safety Features : All electrical parts of the pump are covered, which makes it safer to use.
Light weight and Compact Design : It allows user to carry the pump anywhere with ease, adding to its portability and convenience of use.
Specification
:

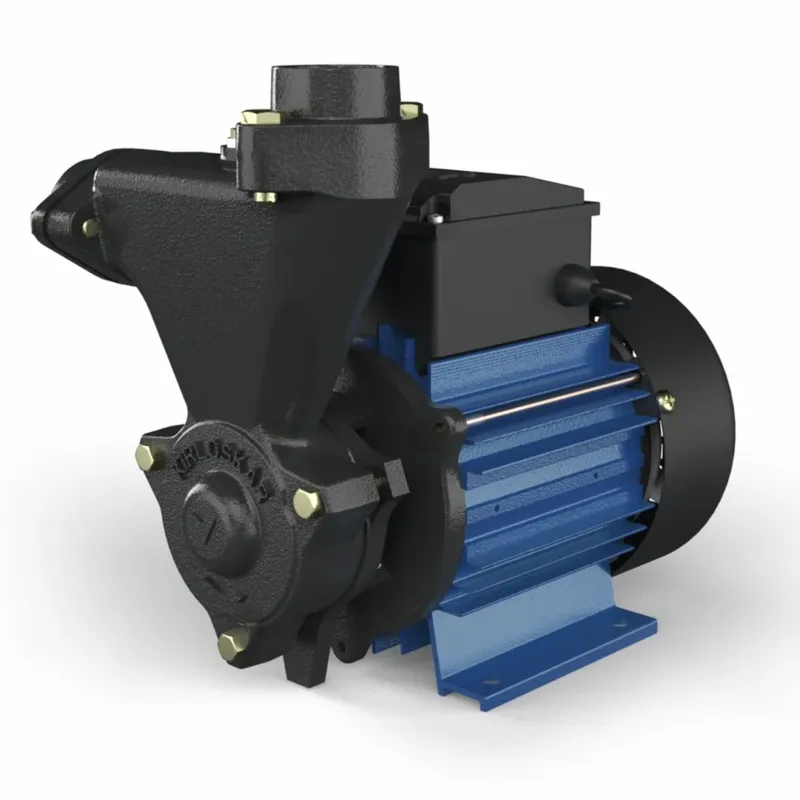

Model No : ANNIKA - I
Product Type : Self-Priming Monoblock Pump
Brand : Kirloskar
Power : 1.0 HP (0.75 kW)
Electricity Connection : Single Phase AC Power Supply
