Brand : ALGO

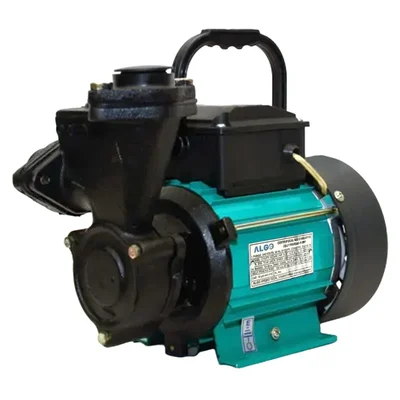

Algo (Chutti-50) 0.5 HP Single Phase Self Priming Monoblock Pump, 25x25 mm - 1 Year Warranty
SKU : TI-AC-18114
MRP : ₹5000
₹3250
35% OFF!
-
1
+
845 people have viewed this recently
Get Extra ₹49 OFF on Prepaid Orders
Delivery By: Jun 20 - Jun 22
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo Self Priming Monoblock Pump
0.5 Hp, Single Phase
18M Max. Head, 1050 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 0.5 hp
  • Weight (Approx.) : 5.5 kg
  • Flow Rate : 17.5 lpm
  • Head : 18 meter
  • Model No : Chutti-50
  • Product Type : Self Priming Monoblock Pump
  • Brand : Algo
  • Power : 0.37 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Max. Current : 2.5 Amp.
  • Winding : 100% copper
  • Pipe Size (Suction x Delivery) : 25x25 mm
  • Head Range : 10 To 18 Meter (32.8 to 59 Feet)
  • Discharge Range : 17.5 to 3 LPM (1050 to 180 LPH)

Operating Condition :
  • Suction Lift : Upto 8 Meter
  • Max. Liquid Temp. : 50°C
  • Max. Ambient Temp. : 40°C
  • Max. Operating Pressure : 8 Bar

Material Of Condition :
  • Pump Casing & bracket : Cast Iron
  • Impeller : Forged Brass
  • Mechanical Seal : Carbon Ceramic
  • Bearing : Double Shielded Ball Bearing
Description
A Monoblock pump is a type of mechanical device where the motor and pump are assembled together within the same frame. Monoblock pumps are typically installed near the water source, like a reservoir or well.

Features

 :
  • High Efficiency and Energy Saving
  • Lightweight and Compact Design
  • Wide Voltage Range
  • Durable Handle for Easy Portability
  • Precisely Balanced Impeller and Shaft
  • Double Shielded Ball Bearing
  • Heavy Duty Forged Brass Impeller
  • Fitted With Thermal Overload Protection (TOP)
  • Integrated Quality Control Systems

Applications

 :
  • Residential
  • Pressure Boosting
  • Gardens
  • Water Treatment
  • Washing Systems

WARRANTY :
  • 1 Year Warranty as Per Algo Policy
