Brand : ALGO

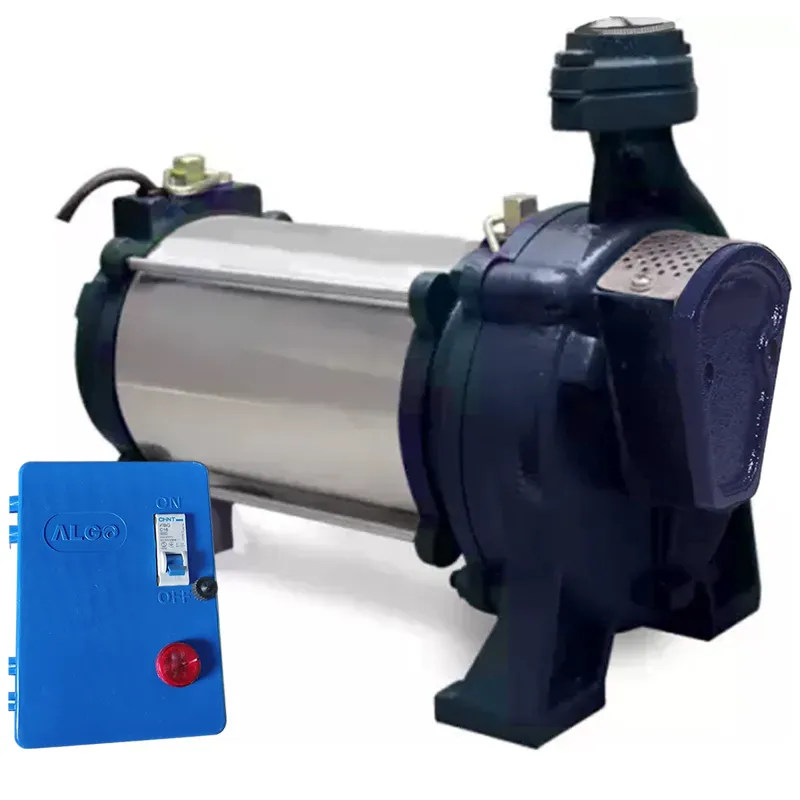

Algo 1HP 1Phase Xeno Series Openwell Submersible Pump With Control Panel, 30M Head - 1 Year Warranty (XS-8/10S)
SKU : TI-A1-17538
MRP : ₹14000
₹9099
35% OFF!
-
1
+
Get Extra ₹136 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo 1 HP Openwell Pump With Control Panel (XS-8/10S)
Single Phase, 2900 RPM
30m Max Head, 189 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 1 hp
  • Weight (Approx.) : 18 kg
  • Flow Rate : 189 lpm
  • Head : 30 meter
  • Model No : XS-8/10S
  • Series :  Xeno Series
  • Product Type : Openwell Pump
  • Brand : Algo
  • Wattage : 0.75 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Head Range : 10 to 30 Meter (32.8 to 98.4 Feet)
  • Discharge Range : 189 to 58 LPM
  • Pipe Size : 25 mm
  • Duty : S1 (Continuous)
  • Insulation Class : B Class
  • Speed : 2900 RPM
  • Max. Liquid Temperature : 40°C

Materials Of Construction :
  • Pump Casing & Bracket : Cast Iron
  • Motor Body  : SS 304
  • Impeller : SS 304
  • Shaft : SS 410
  • Seal : Oil Seal
  • Bearing : Thrust Bearing
Description
An openwell submersible pump is a type of pump that is submerged in water. It is typically placed inside the water source, such as a reservoir or tank, and draws water from the source using suction. They work underwater and rest at the bottom of the well. As openwell submersible pumps push fluid rather than pull it, they use a lot less power.

Features

 :
  • Light Weight
  • Top Suction
  • Excellent quality
  • Easy to install
  • Suitable to lift water from lower tank, Sump, Gardening, Pressure Boost, Curing

Accessories

 :
  • Control Panel
  • 3 Meter Long Cable

Applications

 :
  • Residential
  • Sprinkler System
  • Irrigation
  • Fountain
  • Construction

WARRANTY :
  • 1 Year Warranty
