Brand : ALGO
Algo 2HP 1Phase HORA+ Series Openwell Submersible Pump With CP, Copper Rotor, 50x50mm - 1 Year Warranty (HPC-15/20SG)
SKU : TI-A2-17535
MRP : ₹20000
₹15500
23% OFF!
-
1
+
Get Extra ₹233 OFF on Prepaid Orders
Delivery By: Jun 26 - Jun 28
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

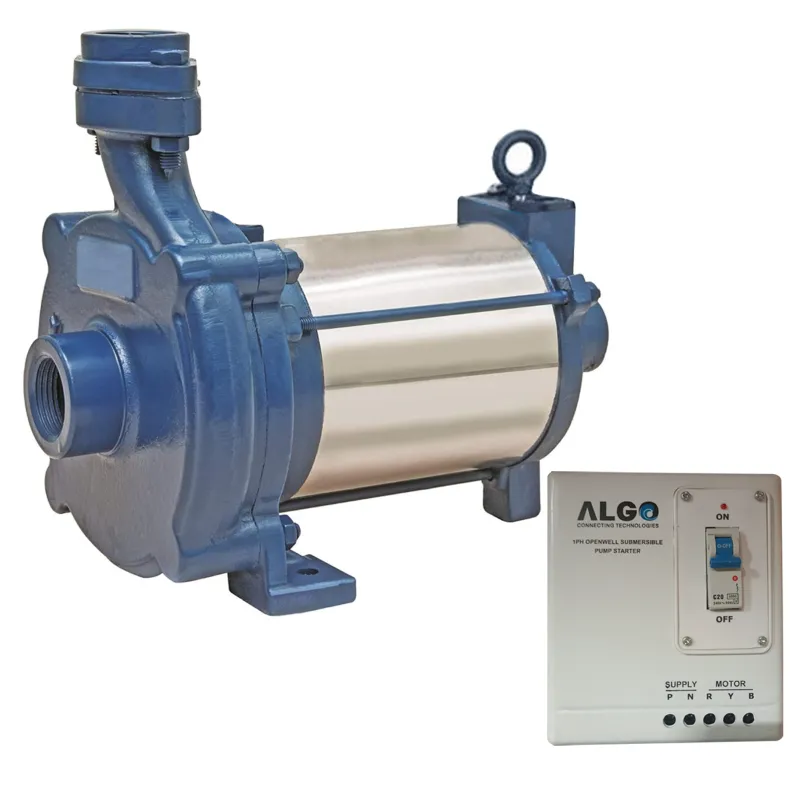

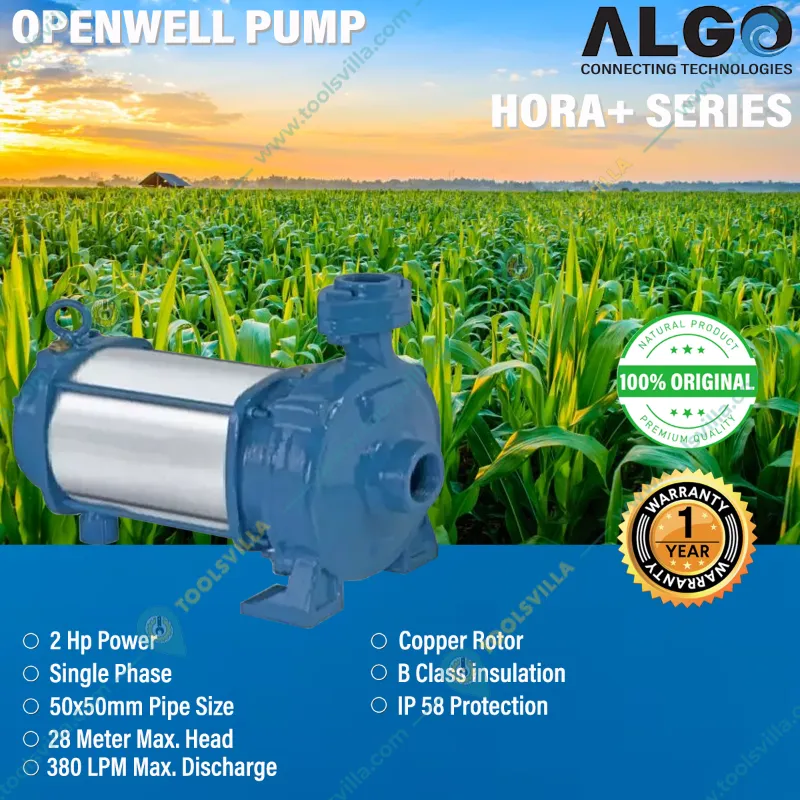

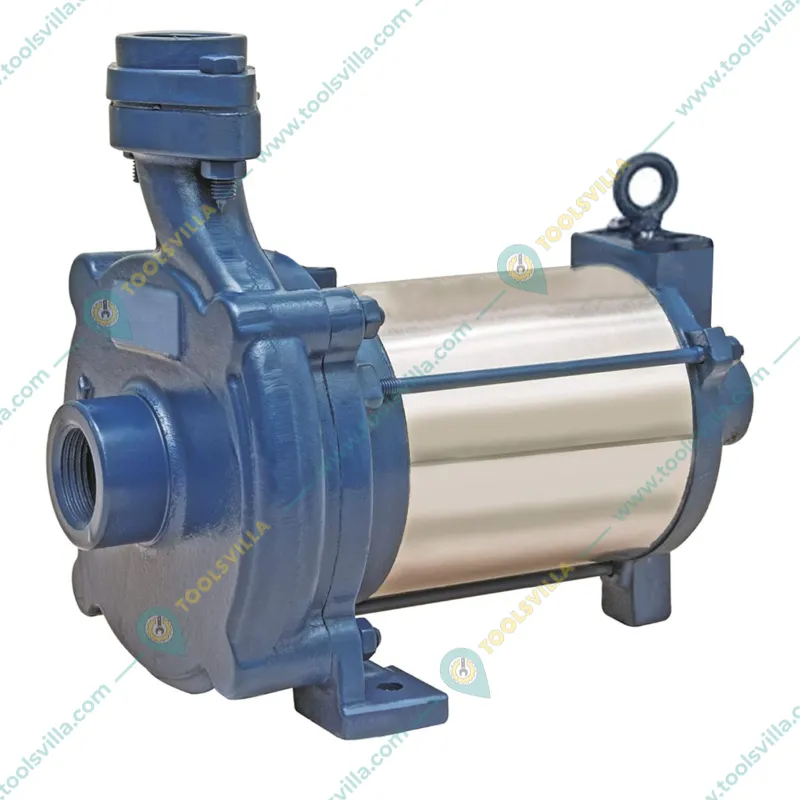

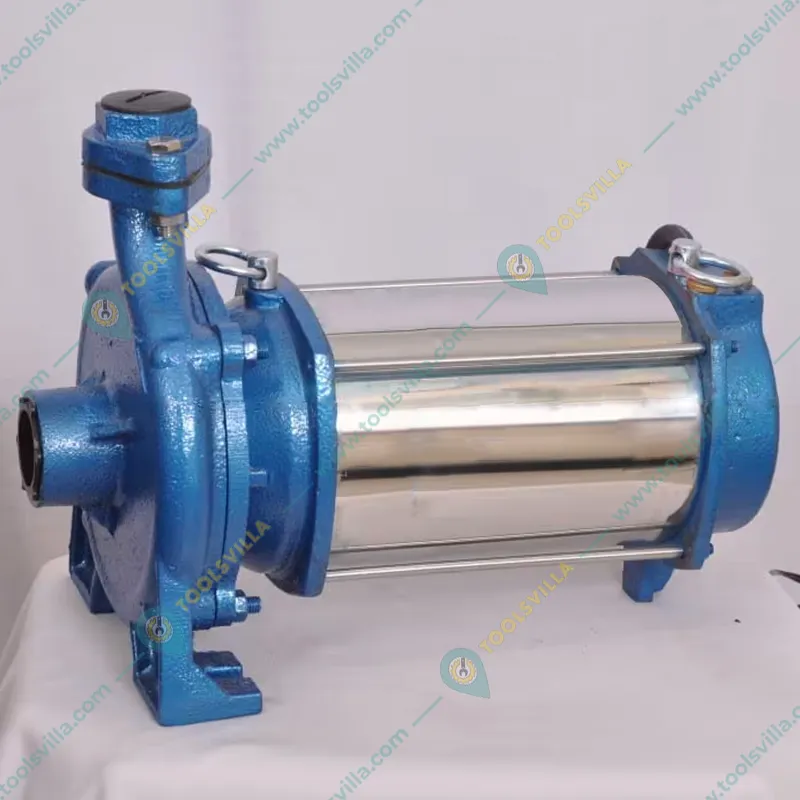

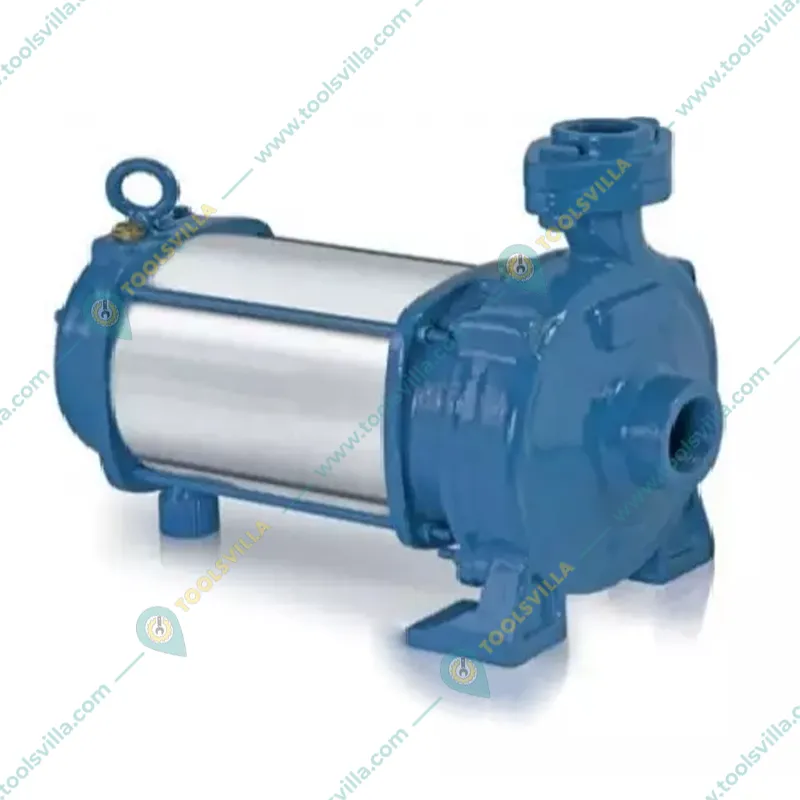

Algo 2 HP Openwell Pump (HPC-15/20SG)
Copper Rotor, Single Phase
28M Max Head, 380 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 2 hp
  • Weight (Approx.) : 32 kg
  • Flow Rate : 380 lpm
  • Head : 28 meter
  • Model No : HPC-15/20SG
  • Series :  HORA+ Series
  • Product Type : Openwell Pump
  • Brand : Algo
  • Wattage : 1.5 kW
  • Electricity Connection : Single Phase
  • Rated Voltage : 230 Volt, 50 Hz
  • Head Range : 12 to 28 Meter (39.37 to 91.86 Feet)
  • Discharge Range : 380 to 100 LPM
  • Pipe Size (Suction x Delivery) : 50x50 mm
  • Rotor Type : Copper Rotor
  • Duty : S1 (Continuous)
  • Insulation Class : B Class
  • Protection : IP 58
  • Max. Liquid Temperature : 40°C

Materials Of Construction :
  • Pump Casing & Bracket : Cast Iron
  • Motor Body  : Cast Iron/SS
  • Impeller : SS/Noryl/Cast Iron
  • Shaft : SS 410
  • Seal : Oil Seal
  • Bearing : Thrust Bearing
Description
An openwell submersible pump is a type of pump that is submerged in water. It is typically placed inside the water source, such as a reservoir or tank, and draws water from the source using suction. They work underwater and rest at the bottom of the well. As openwell submersible pumps push fluid rather than pull it, they use a lot less power.

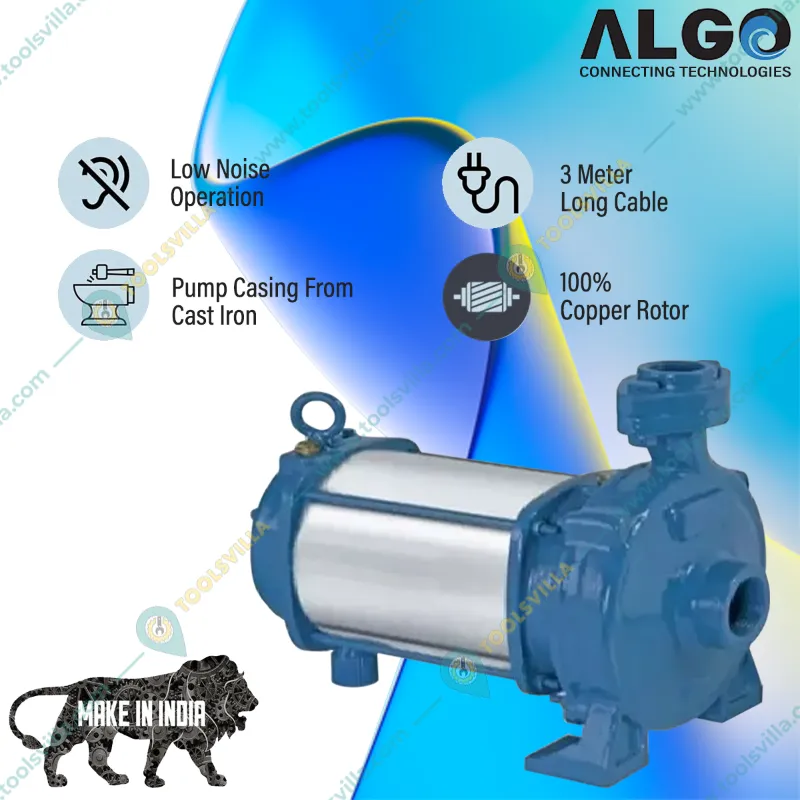

Features

 :
  • Light Weight
  • Copper rotor
  • Excellent quality
  • Easy to install
  • Suitable to lift water from lower tank, Sump, Gardening, Pressure Boost, Curing

Accessories

 :

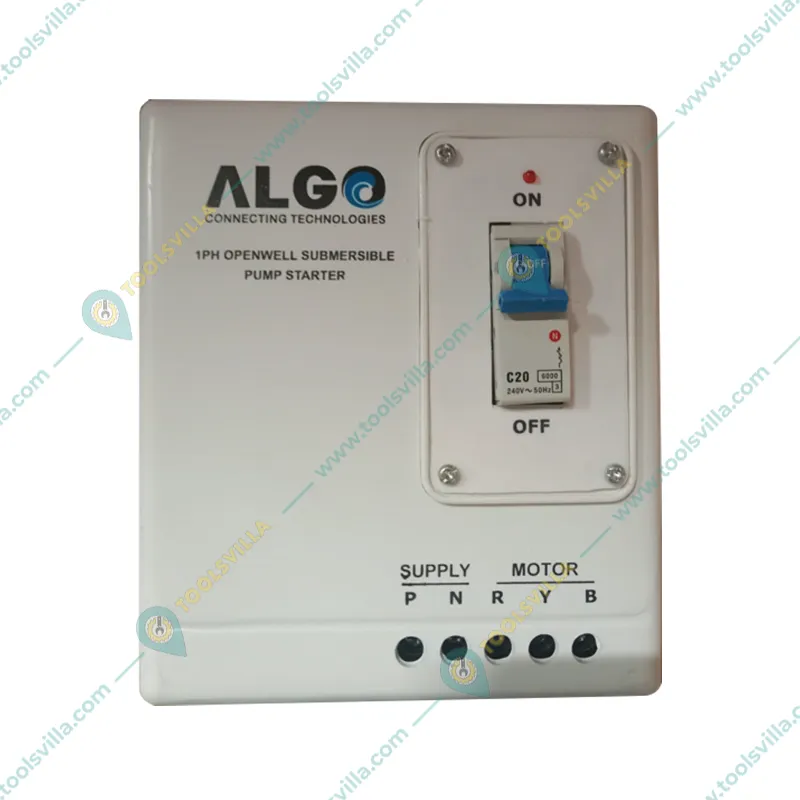

  • Control Panel
  • 5 Meter Long Cable

Applications

 :
  • Residential
  • Sprinkler System
  • Irrigation
  • Fountain
  • Construction

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only
