Brand : ALGO

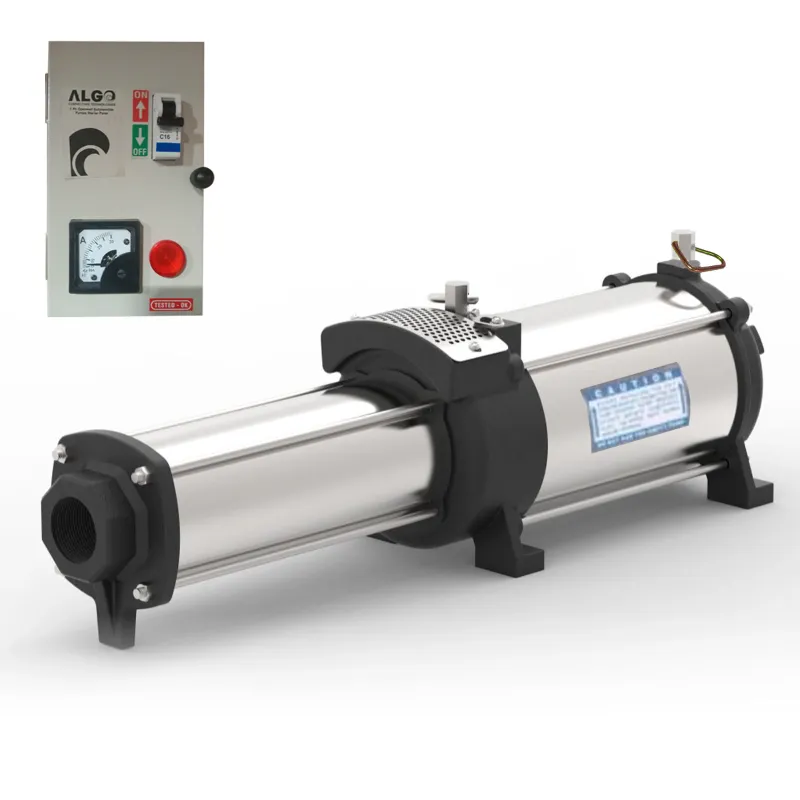

Algo 3HP 3Phase Hora-M Series Multistage Open Well Submersible Pump With Control Panel - 1 Year Warranty (HM5-15/30T)
SKU : TI-A3-17695
MRP : ₹35000
₹31000
11% OFF!
-
1
+
935 people have viewed this recently
Get Extra ₹465 OFF on Prepaid Orders
Delivery By: Jun 19 - Jun 21
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Algo Horizontal Open Well Submersible Pump With CP
3 HP, Single Phase
50M Max. Head, 300 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Specification
  • Brand: ALGO
  • Power : 3 hp
  • Weight (Approx.) : 34 kg
  • Flow Rate : 300 lpm
  • Head : 50 meter
  • Model No : HM5-15/30T
  • Series : Hora-M Series
  • Product Type : Horizontal Open Well Submersible Pump
  • Brand : Algo
  • Wattage : 2.2 kW
  • Electricity Connection : Three Phase
  • Rated Voltage : 380 Volt, 50 Hz
  • Head Range : 10 to 50 Meter (32.8 to 164 Feet)
  • Discharge Range : 300 to 150 LPM
  • Speed : 2900 RPM
  • Delivery Size : 50 mm
  • Insulation Class : B Class
  • Max. Liquid Temperature : 40°C
  • Duty : S1 (Continuous)

Materials Of Construction :
  • Pump Shell : SS304
  • Motor Body : SS304
  • Impeller : Noryl
  • Pump Shaft : SS304
  • Motor Shaft : SS 410
  • Seal : Oil Seal
  • Bearing : Trust Bearing
  • Cable Length : 3 Meter
Description
Multistage open well submersible pump is a type of pump that is designed to operate submerged in water, typically in an open well or reservoir. These high-pressure pumps are employed in many different situations where a single-stage pump might not be able to achieve the necessary pressure. With multiple impellers on the same shaft, each contributing to the overall pressure output, the multistage design allows for enhanced pressure capabilities.

Features

 :
  • Easy Installation & Maintenance.
  • Wide Voltage Operation.
  • Wide Head Range
  • High Discharge.
  • Horizontal Operation.
  • Rust Proof Stainless Steel Pump & Motor Body.

Accessories

 :
  • Control Panel
  • 3M Long Cable

Applications

 :
  • Sprinkler System
  • Fountain
  • Pressure Boosting
  • Residential

WARRANTY :
  • 1 Year Warranty on Manufacturing Defects Only
