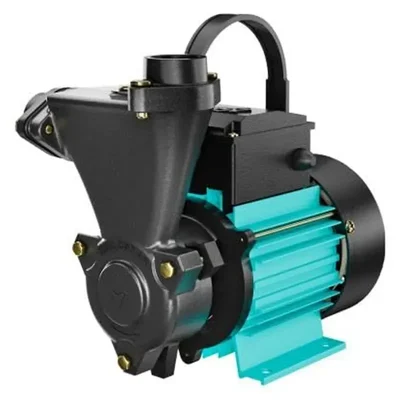

Kirloskar 1 Hp Single Phase Self Priming Monoblock Pump, 30m Max. Head, 2900 LPH (JALRAAJ-I ULTRA MAX)

Brand: Kirloskar

Kirloskar 1 Hp Single Phase Self Priming Monoblock Pump, 30m Max. Head, 2900 LPH (JALRAAJ-I ULTRA MAX)

Name: Kirloskar 1 Hp Single Phase Self Priming Monoblock Pump, 30m Max. Head, 2900 LPH (JALRAAJ-I ULTRA MAX)
Brand: Kirloskar
SKU: RON-KBL-200130
Price: 3920 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: RON-KBL-200130

MRP : ₹5880 ₹3920

33% OFF!

12 people have bought this recently

Get Extra ₹59 OFF on Prepaid Orders

Estimated Delivery By: Jun 26 - Jun 28

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹3920 (Including GST)

MRP : ₹5880

33% OFF!

Get Extra ₹59 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

1 HP(0.75 KW) Single Phase Monoblock Pump

6 - 30meters Head Range

3300- 1300 LPH Discharge Rate

1 Year Brand Warranty

Country of origin: India

Brand: Kirloskar
Power : 1 hp
Weight (Approx.) : 9.4 kg
Flow Rate : 48 lpm
Head : 30 meter

Model No. : JALRAAJ-I ULTRA MAX
Product Name : Self-Priming Monoblock Pump
Wattage : 0.75 kW
Electricity Connection : Single Phase
Rated Voltage : 240 Volt, 50 Hz
Pipe Size : 25 X 25 mm (1 X 1 inch)
Head Range : 6 to 30 Meter
Discharge Range : 2900 to 1100 LPH (48 to 18 LPM)

A monoblock pump is a kind of mechanical equipment in which the pump and motor are built into one single frame. Usually, monoblock pumps are situated close to the water supply, such as in a well or reservoir. Self-priming monoblock pumps are widely used across various industries like Water transfer in irrigation systems, Residential purpose, Gardening purpose etc. due to their versatility and efficiency

Features

High Efficiency and Energy Saving Design: Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Cathodic Electro Deposition (CED) Coating: CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. Hydraulic parts of Kirloskar pumps are CED coated.
Wide Voltage Range: The motor is designed to withstand wide voltage variation from 160 to 260 volts and reduces chances of motor burning due to low/high voltage.
Thermal Overload Protector (TOP): The pump set features a Thermal Overload protector that protects the motor from overloading, shielding the motor and associated circuit from the effects of fault current.
Shielded Ball Bearing: The pumps are fitted with shielded ball bearings, which results in low noise level and so no external lubrication is required throughout the life cycle.
Dynamically Balanced Rotating Parts: Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
Easy Maintainable Designs: Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
High Suction Lift: The pump has suction lift capacity up to 7.5 meters with high head, allowing to pump water at high volumes for a variety of applications.
Enhanced Safety Features: All electrical parts of the pump are covered, which makes it safer to use
Light weight and Compact Design: It allows user to carry the pump anywhere with ease, adding to its portability and convenience of use.

Applications

Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation.

WARRANTY :
