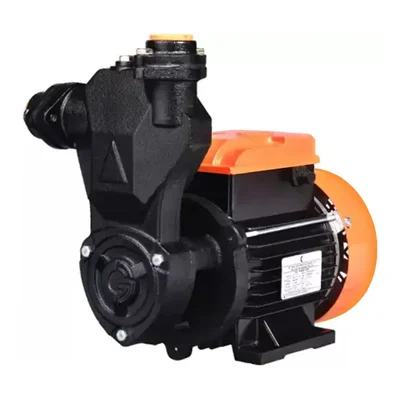

CG Power 0.5 HP 1Phase Copper Winding Self Priming Monoblock Pump, 25X25mm (Mini EMPIRE-II) - 2 Years Warranty
SKU: SI-CM-20067
MRP : ₹4500
Offer Price : ₹3200 (Including GST)
Get extra ₹48 Discount (On Checkout)
Delivery By: Nov 17 - Nov 19
Qty:
BUY IN BULK
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
CG Power 0.5 Hp Self Priming Monoblock Pump, 25X25 mm
Single Phase, Copper Winding
24m Max. Head, 2400 LPH Max. Discharge
2 Years Warranty
Country of origin: India
Description
The CG Power 0.5 HP Single Phase Self Priming Monoblock Pump epitomizes excellence in water pumping technology offering a potent combination of power efficiency and reliability. Designed to cater to a diverse range of residential commercial and industrial applications this pump stands as a testament to precision engineering and uncompromising quality. Central to its performance is a robust 0.5 horsepower motor meticulously engineered to deliver formidable pumping capabilities. Whether tasked with supplying water for domestic use agricultural irrigation or industrial processes this pump rises to the challenge with remarkable efficiency and consistency ensuring a steady and reliable flow of water under varying conditions. This innovative feature allows the pump to automatically prime itself eliminating the need for manual intervention and simplifying installation and operation. This not only enhances convenience but also ensures hassle-free performance even in situations where water levels fluctuate or the pump needs to be relocated. The monoblock design of the pump adds to its appeal combining compactness with durability. From its corrosion-resistant housing to its rugged impeller and shaft each part is crafted from high-quality materials and subjected to stringent quality control measures ensuring long-term reliability and performance. Furthermore the pump boasts impressive energy efficiency helping to reduce operational costs and environmental impact.
Features
:
Self Priming
CED coated pump components
High Quality Mechanical seal for long life
TEFC motor with Class - F insulation.
Powder coated motor body
Fitted with Thermal Overload Protector
Specification
:
Model No. : Mini EMPIRE-II (CGDMM05ME-DV)
Product Type : Self Priming Monoblock Pump
Brand : CG Power and Industrial Solutions Ltd.
Power : 0.5 Hp (0.37 kW)
Electricity Connection : Single Phase
Rated Voltage : 180 - 240 Volt, 50Hz, AC Power Supply
Winding Material : Copper Winding
Pipe Size (Suction X Delivery) : 25X25 mm
Head Range : 3 to 24 Meter (9.8 to 78.7 Feet)
Discharge Range : 2400 to 500 LPH (40 to 8 LPM)
Speed : 2850 RPM
Dimension (LxWxH) : 23.77 X 18.9 X 27.74 Cm
Weight : 7 Kg (Approx.)
Material Of Construction :
Pump Casing : Cast Iron
Adaptor : Cast Iron
Impeller : Forged Brass
Shaft : Stainless Steel
Stamping : High Grade Electrical Stamping
Mechanical Seal : Carbon vs Ceramic
Applications
:
Water supply to overhead tanks of Bungalows, Residential Buildings, Flats, Hotels, Hospitals, Lawns Sprinklers, Nursing homes, Clubs etc.
