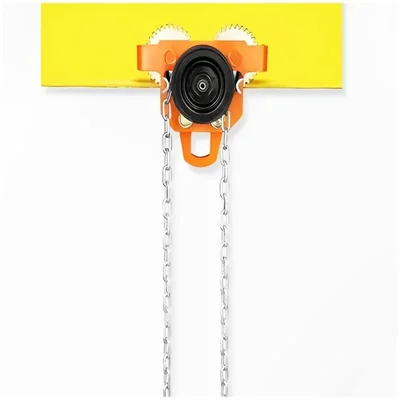

Monorail traveling trolleys employ manual chain blocks and electric chain hoists to convey products along the monorail or beam. Beam trolleys are available in capacities ranging from 1 to 20 tons. Trolleys are constructed with variable beam sizes to meet capacity requirements. Beam Trolley wheels are fitted with heavy-duty ball bearings.
Features
:- Easy & Safe to operate – Design of the monorail travelling trolley provides minimum hand effort to operate on loaded capacities.
- Derailing arrangements make our more safe & reliable.
- Low maintenance – robust design reduces the maintenance cost after expiry of warranty.
- Generates less noise – Precise Machining & heavy duty wheel bearings make the beam trolley sound less.
- Adaptable in width so as to suit the I-Beam flange width demands.
- Exchangeable Spares
Advantage :
- Low Headroom
- Heavy-duty Graded Cast Iron Wheels
- Heavy-duty Frame Plates
- Low hand effort
- Anti Corrosion Powder Coated Frame Plate & Mounting Plates and Zinc coated trolley wheels
- Easy Installation
Specification
:- Product Type: Manual & Electric Trolley
- Brand: Globe
- Weight (Approx.) : 12 kg
- Product Type : Monorail Travelling Trolley
- Brand : Globe
- Capacity : 1 Ton (1000 Kg)
- Working : Manual
- Hand Chain Length : 4.5 Meter
- Hand Chain Dia : 5 mm
- Trolley Movement : Horizontal
- Application : Pulling
- I- Beam Recommended : 65-125 mm
- Packing Measurement(LxWxH) : 27x25x16 cm
- Hand Chain (OXPITCH) : 5x24 mm
Applications
:Monorail traveling trolleys is preferred equipment used for Load movement in all type of industries such as tool rooms, fabrication shops, molding shops, site works, etc.
Warranty :
- 12 Months Manufacturer Warranty.
Note :
- The video shown is for illustration purposes only and may not be an exact representation of the product.
