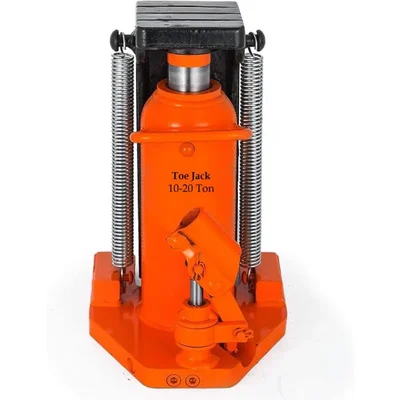

Hartley 10/20 Ton Toe Height Max Lift 158mm Welded Steel Hydraulic Track Cylinder Toe Jack TOJ-20

Brand: HARTLEY

Hartley 10/20 Ton Toe Height Max Lift 158mm Welded Steel Hydraulic Track Cylinder Toe Jack TOJ-20

Name: Hartley 10/20 Ton Toe Height Max Lift 158mm Welded Steel Hydraulic Track Cylinder Toe Jack TOJ-20
Brand: HARTLEY
SKU: TI-H1-81932
Price: 21999 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-H1-81932

MRP : ₹29700 ₹21999

26% OFF!

Get Extra ₹330 OFF on Prepaid Orders

Estimated Delivery By: Aug 20 - Aug 22

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹21999 (Including GST)

MRP : ₹29700

26% OFF!

Get Extra ₹330 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

10/20 Ton heavy-duty hydraulic toe jack with hard chrome piston, track cylinder, and 158mm max lift height.

Country of origin: China

Brand: HARTLEY
Weight (Approx.) : 35 kg
Load Capacity : 20 ton
Lifting Capacity : 20 ton
Lifting Range : 158 mm

Toe Lifting Capacity: 10 Ton
Head Lifting Capacity: 20 Ton
Max Lift Height: 158 mm
Material: Heavy-Duty Welded Steel
Finish: Powder-Coated Orange
Piston Type: Hard Chrome-Plated Piston
Cylinder Design: Track Cylinder
Dimensions (L x W x H): 35 x 20 x 31 cm

The Hartley 10/20 Ton Hydraulic Toe Jack (TOJ-20) is a heavy-duty industrial lifting machine engineered for raising heavy machinery, structural components, and low-clearance equipment. Designed with a dual-lifting capability, it supports up to 10 tons on its ultra-low clearance toe and up to 20 tons on its top head. Built from heavy-duty welded steel with a high-visibility orange powder-coated finish, this manual jack features a hard chrome-plated piston for smooth strokes and corrosion resistance, alongside a track cylinder design to ensure perfectly stable, vertical lifting movement up to a maximum lift height of 158 mm.

Features

Dual Lifting Capacity: Safely lifts up to 10 tons using the low-clearance toe and up to 20 tons from the top head.
Hard Chrome Piston: Hard chrome-plated piston rod delivers smooth extension while preventing corrosion, pitting, and seal wear.
Track Cylinder Design: Ensures precise vertical movement and structural stability throughout the lifting stroke.
Ultra-Low Clearance Toe: Designed to slide easily under extremely tight gaps and low-profile machinery bases.
Heavy-Duty Welded Construction: Durable welded steel frame coated in high-visibility orange powder finish for job-site durability.

Applications

Machinery Moving & Rigging: Lifting heavy industrial CNC machines, presses, and generators for transport or roller positioning.
Structural Engineering & Construction: Precision raising of steel beams, bridge sections, and heavy prefabricated modules.
Maintenance & Repair: Low-clearance jacking of railway tracks, heavy transformers, and industrial equipment.

Usage

Positioning: Slide the low-clearance toe under the heavy load or position the top head directly beneath the lifting point on a flat, solid surface.
Pumping Setup: Insert the operating lever handle into the hydraulic pump socket and close the pressure release valve.
Lifting: Pump the handle up and down in smooth, controlled motions to raise the load up to a maximum lift height of 158 mm.
Securing Load: Place mechanical shims or safety blocks under the raised load before carrying out maintenance or rigging work.
Lowering: Slowly turn the release valve counterclockwise using the lever handle to lower the load smoothly back to the ground.
