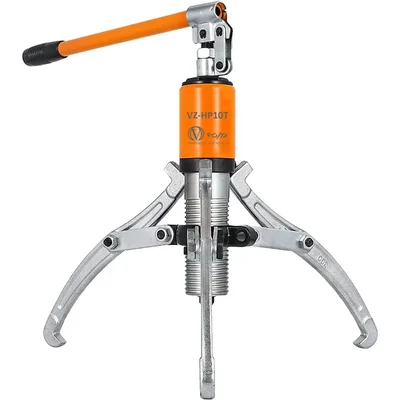

VOLTZ 10 Ton 3 Jaw Hydraulic Gear Puller, Wheel Bearing Hub Removal Tool (VZ-HP10T)
SKU : TI-V1-13214
MRP : ₹12285
₹8960
27% OFF!
-
1
+
3110 people have viewed this recently
Get Extra ₹134 OFF on Prepaid Orders
Delivery By: Jul 14 - Jul 16
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description

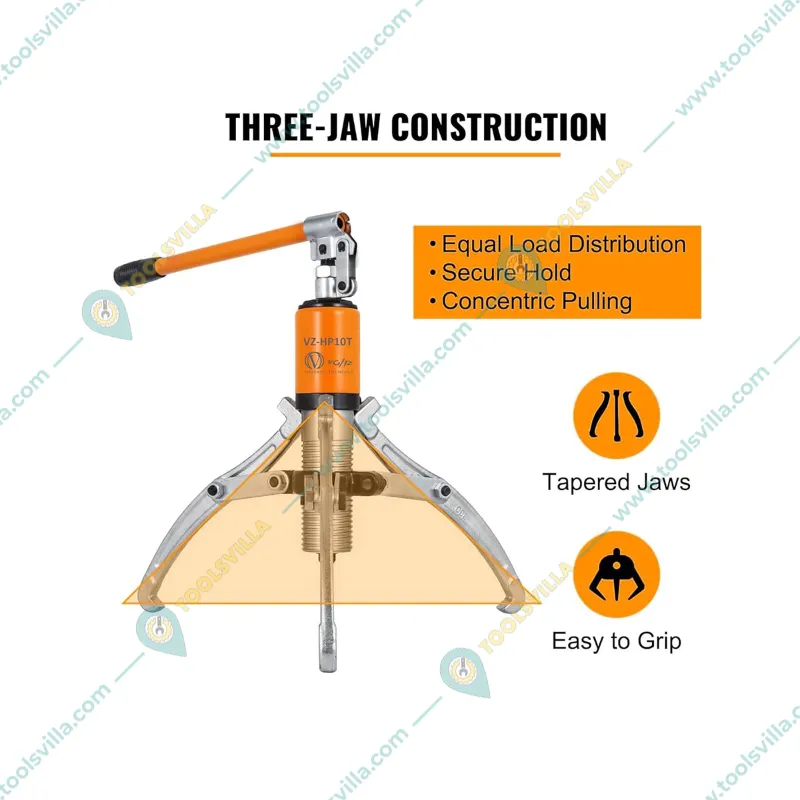

10 Ton 3 Jaw Hydraulic Gear Puller
Wheel Bearing Hub Removal Tool
45# Steel Body

Country of origin: China
Specification
Description
VOLTZ 10 Ton 3 Jaw Hydraulic Gear Puller, Wheel Bearing Hub Removal Tool (VZ-HP10T)

Description :
1. The new, perfect tool to take the place of the conventional puller is the hydraulic puller. Its features include a small design, versatile application, easy handling and operation, reduced labor requirements, and minimal site restrictions. It works well in a variety of maintenance locations.

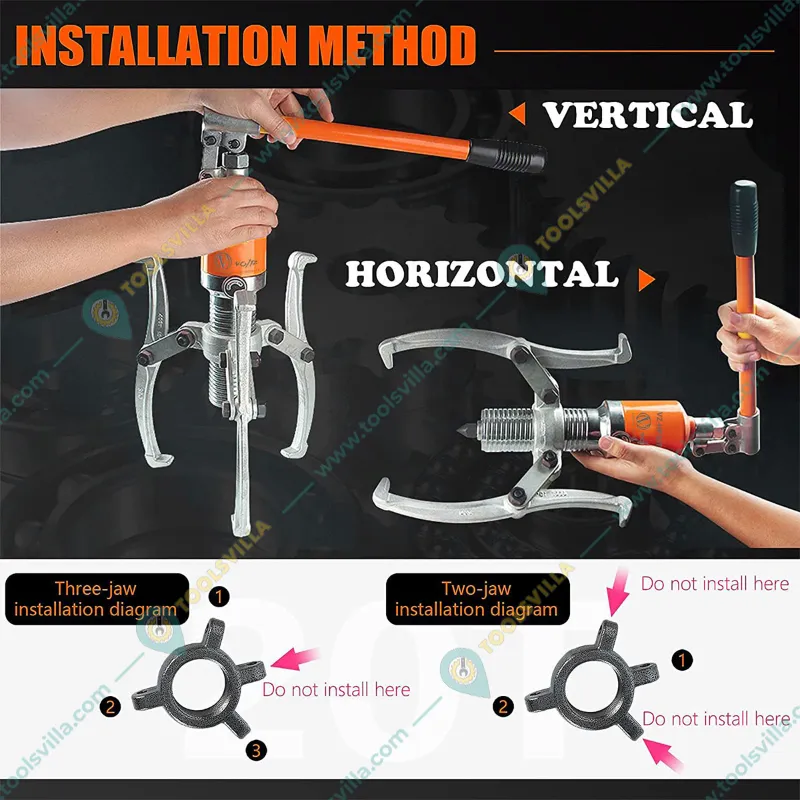

  • Before using, tighten the oil return valve stem by turning it in a clockwise manner.
  • To grasp the object being pulled, adjust the jaw seat about the jaw hook.
  • To go forward steadily, tilt the piston starting rod back and forth. The jaw will hook back to remove the thing that has been drawn out.
  • You must stop when the extension distance is connected to the maximum effective distance, loosen the oil return valve rod, and allow the piston starting rod to retract and adjust if the piston starting rod's extension distance is needed to be greater than the hydraulic puller piston starting rod's effective distance while in use. Once you're done, go through steps 1-3 once again until it comes out.
  • Just a tiny counterclockwise loosening of the oil return valve will release the stem. The spring causes the piston starting rod to progressively retract.

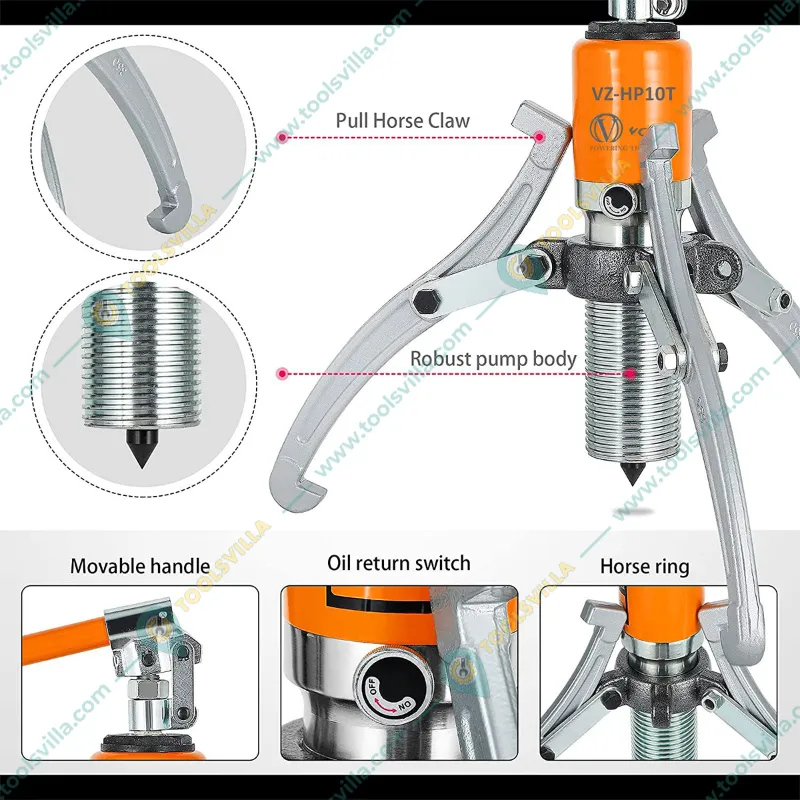

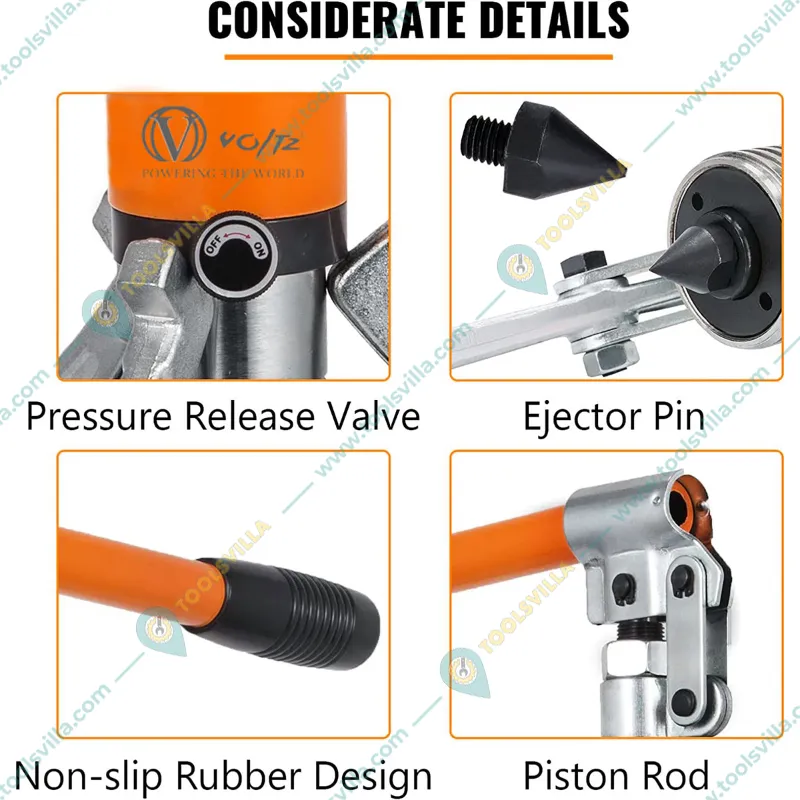

Features :
  • Oil Return Switch : Turn the switch to ON when in use, so you can pressurize Turn the switch to OFF after use so that the pressure can be relieved.
  • Integrated Welding : Integrated pump, tubing, and drawing machine into one body. The integrated molding has better quality and greatly extends the service life of the product.
  • Integrated Oil Cover : One-piece oil cover, the oil pump does not leak oil, giving you a better operating experience.

Specifications :
  • Model No. : VZ-HP10T(New)
  • Product Type : Hydraulic Gear Puller
  • Brand : VOLTZ
  • Material : 45# Steel
  • Max Capacity : 10 Ton
  • Ares Travel : 2" (50 mm)
  • Min/Max Reach : 0-6" (0-160 mm)
  • Min/Max Spread : 4"-10" (100-250 mm)

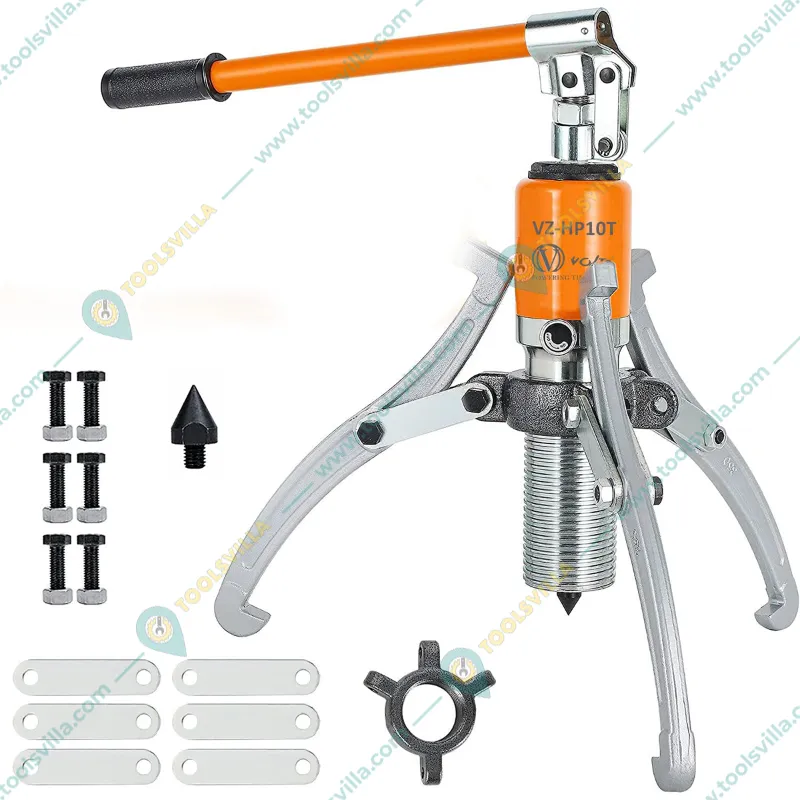

In The Box :
  • 1x Hydraulic Puller
  • 1x Handle

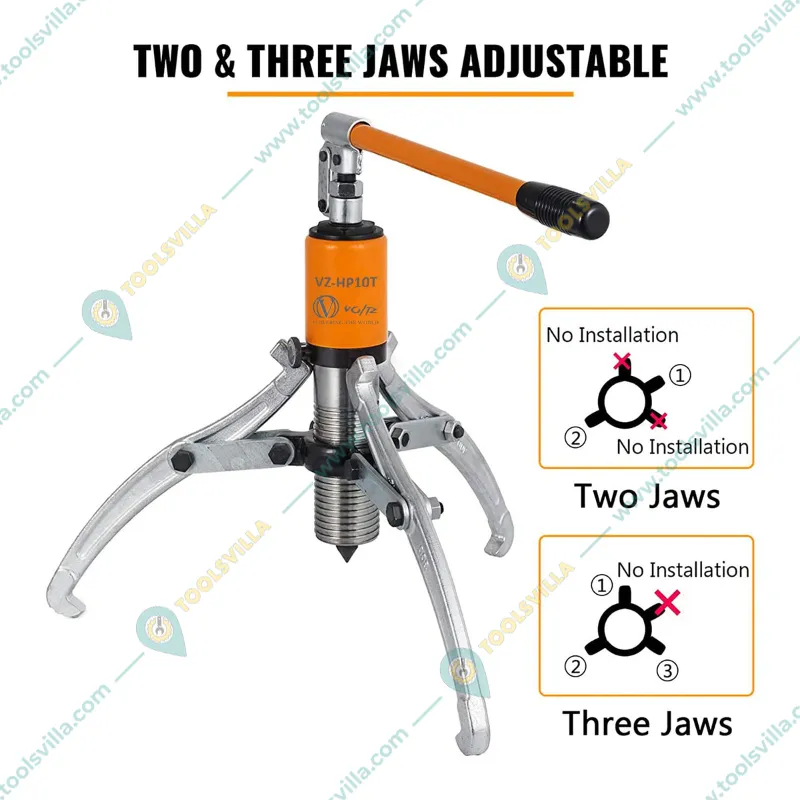

  • 1x 2/3 Leg Puller Yoke
  • 3x Jaws
  • 6x Link Plates
  • 1x Nose Adaptor
  • 6 Sets of Nuts and Bolts

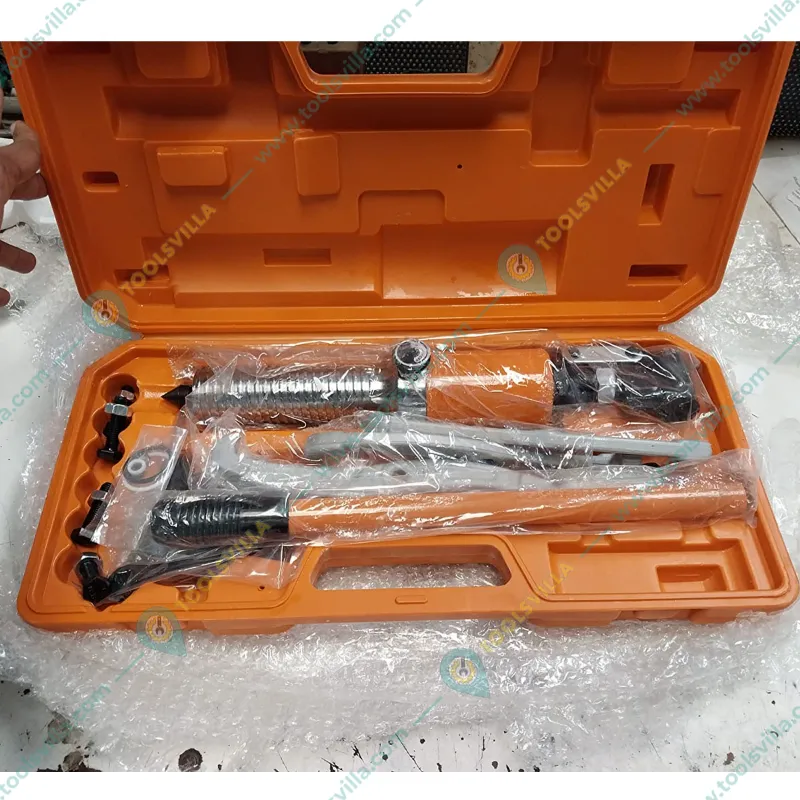

  • 1x Carrying Case
