Brand : Ralli Wolf

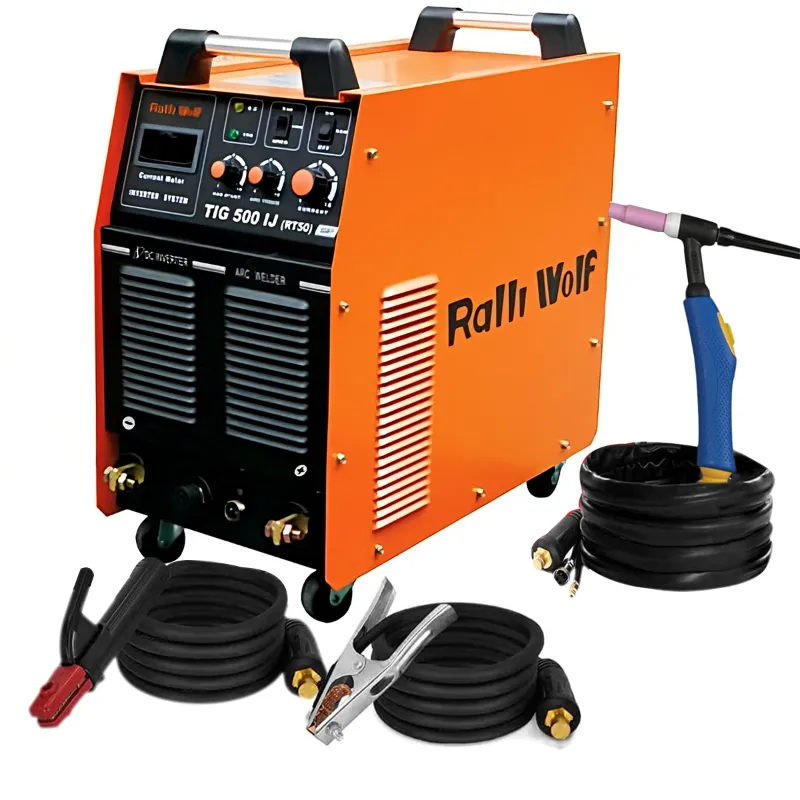

Ralli Wolf TIG 500IJ IGBT Series Inverter Based MMA Welding Machine, 500 Amp. (RT 50)
SKU : AB-RW-20233314
MRP : ₹165400
₹143890
13% OFF!
-
1
+
795 people have viewed this recently
Get Extra ₹2,158 OFF on Prepaid Orders
Delivery By: Jul 7 - Jul 9
Add to Cart
Buy Now
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
TIG 500IJ IGBT Series Welding Machine
Three Phase MMA Welding Machine
10 - 500 Amp Current Range

Country of origin: India
Specification
Description
Ralli Wolf TIG 500IJ IGBT Series Inverter Based MMA Welding Machine, 500 Amp. (RT 50)
        Description :
        • Ralliwolf RT Series inverter-based dual application both ARGON (TIG) / MANUAL, DC welding power source with built in HF unit. The machine delivers radiographic quality welding output to meet the demand of Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy /Repair & Maintenance / Process Industries / Automobile etc. The power source ensures high reliability with outstanding welding characteristics.

        Features :
        • Excellent TIG welding in MS, CS, SS, Cu, Alloys, Al
        • High efficiency & Power factor result in low electricity bill
        • Gas pre-flow / Post flow function
        • Truly vertical welding characteristics with dynamic feedback mechanism ensures high-quality pure DC output
        • MMA function is available in all the models with a selector switch option
        • AC TIG for Aluminium welding is possible with models RT20A & RT31A
        • Pulse TIG welding facility with independent settings of the parameters from the front panel in the models RT20P & RT31A. Optional remote control facility for welding current variation
        • Economies is achieved in the use of tungsten
        • Constant current characteristics irrespective of variation in arc length

        Specifications :
        • Model No. : RT 50
        • Input Voltage (V) : AC 415 ± 15%
        • Electricity Connection : Three Phase
        • Rated Input (A) : 26.2 / 35.0
        • Power (KVA) : 25.2
        • No-load Voltage : 70
        • Output Current (A) : 10 - 500
        • Rated Output (A) : 38
        • Duty Cycle (%) : 60
        • No-load Loss (W) : 80
        • Efficiency (%) : 85
        • Power Factor : 0.93
        • Pre-flow (s) : 2.5
        • Post-flow (Sec.) : 0-5
        • Arcing Way : High Frequency
        • MMA Facility : Available
        • Inverter Technology : IGBT

        Standard Accessories :
        • 1 x Welding Torch
        • 1 x Earthing Clamp
        • 1 x Electrode Holder

        Note :
        • Do not use the welder for work other than welding.
        • Do not touch the live part.
        • Do not solder in places where skimming, cleaning and spraying are required.
        • When using, please wear a protective cover or protective clothing.
