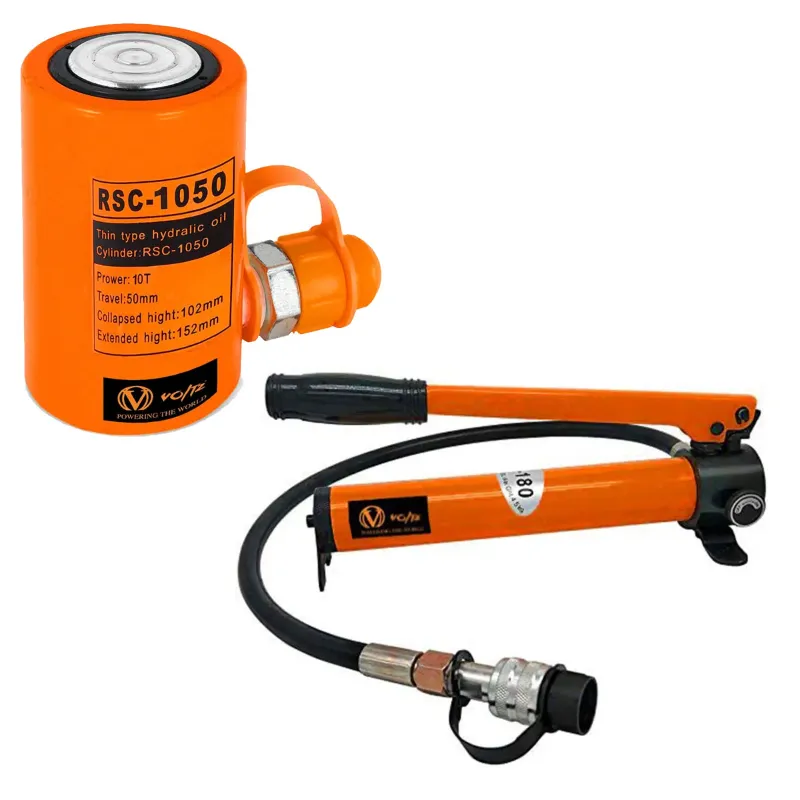

VOLTZ 10 T Hydraulic Cylinder Jack Solid with Hand Pump Single Acting Hydraulic Ram Cylinder 50 mm Hydraulic Lifting Cylinders (RSC-1050180)

Brand: VOLTZ

VOLTZ 10 T Hydraulic Cylinder Jack Solid with Hand Pump Single Acting Hydraulic Ram Cylinder 50 mm Hydraulic Lifting Cylinders (RSC-1050180)

Name: VOLTZ 10 T Hydraulic Cylinder Jack Solid with Hand Pump Single Acting Hydraulic Ram Cylinder 50 mm Hydraulic Lifting Cylinders (RSC-1050180)
Brand: VOLTZ
SKU: TI-V1-13196
Price: 10700 INR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: TI-V1-13196

MRP : ₹15000 ₹10700

29% OFF!

1613 people have viewed this recently

Get Extra ₹161 OFF on Prepaid Orders

Delivery By: Dec 18 - Dec 20

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

₹10700 (Including GST)

MRP : ₹15000

29% OFF!

Get Extra ₹161 OFF on Prepaid Orders

QTY :

Add to Cart

Buy Now

VOLTZ 10 T Hydraulic Cylinder Jack

400 C Oil Storage

60 kg / cm² Pressure

Country of origin: China

Brand: VOLTZ
Weight (Approx.) : 6 kg
Load Capacity : 10 ton
Lifting Capacity : 10 ton
Lifting Range : 102-152 mm

Model No. : RSC-1050180
Product Type : Hydraulic Cylinder Jack
Brand : VOLTZ
Stroke : 2 inch
Total Height : 4 inch
Outside Diameter : 2.3 inch
Inner Diameter : 1.8 inch
Hand Pump Model : CP-180
Oil Storage Capacity : 400 cc
High Pressure : 60 kg / cm²
Collapsed Height : 102 mm
Extended Height : 152 mm
Bore Diameter : 64 mm
Piston Diameter : 38 mm
Max. Capacity : 10 Ton

Features

1. SMOOTH LACQUER SURFACE

The surface of the hydraulic ram cylinder is painted with lacquer, which is not easy to rust.

Made of heavy-duty metal construction, our hydraulic cylinder jack is durable and designed for long-lasting use

2. RETRACT AUTOMATICALLY

This jack has a stroke of 2". After the use of pressure relief, the cylinder can automatically retract, without the use of other gravity, more convenient to use.

3. ANTI-DUST COVER & CONNECTOR

Anti-dust cover can reduce pollution, thereby prolonging the service life of hydraulic cylinder.

The joint adopts threaded has a compact structure.
