Brand: Toshweld

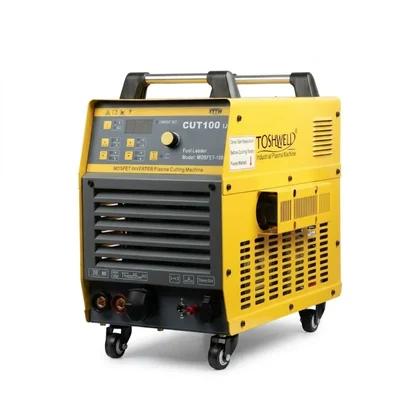

Toshweld 15.1kVA 3-Phase IGBT Module Plasma Cutting Machine, Heavy Duty 100A Air Cutter, CUT 100 IC
SKU: TI-T1-72167
Estimated Delivery By: May 25 - May 27
MRP : ₹97273 ₹81061
17% OFF!
Estimated Delivery By: May 25 - May 27 Easy Return
& Refund
& Refund
Quality
Assurance
Assurance
Trusted
Delivery
Delivery
After Sales
Assistance
Assistance
Buyer
Protection
Protection
₹81061 (Including GST)
MRP : ₹97273
17% OFF!
Get Extra ₹1,216 OFF on Prepaid Orders
QTY :
-
1
+
Short Description
A heavy industrial-grade 100A three-phase plasma cutting plant driven by high-capacity IGBT modules and a 15.1kVA footprint. Mounted on a heavy-duty wheel caster assembly, it cleanly slices through thick metal plates up to 25mm.
Country of origin: China
Specifications
- Brand: Toshweld
- Weight (Approx.) : 38.5 kg
- Output Current Range : 100 amp
- Technology : IGBT
- Model Number: CUT 100 IC
- Machine Type: Heavy Industrial Inverter Air Plasma Cutting Machine
- Technology Core: Industrial IGBT Module System
- Phase Support: Three Phase (3 Phase)
- Input Voltage Line: AC 415V + 15%
- Input Power Capacity: 15.1 kVA
- Output Current Range: 20 – 100 A
- Rated Input Current: 23.1 A
- No-Load Open Voltage: 290 V
- Power Factor Value: 0.93
- Required Working Air Pressure: 4 – 5 kg
- Cutting Thickness Capacity: 1.0 mm – 25.0 mm
- Net Unit Weight: 38.5 kg
- Overall Dimensions: 20.5 x 11 x 20 Inches
Description
A top-tier, high-capacity industrial air plasma cutting station designed for high-output fabrication yards and continuous structural metal splitting is the Toshweld CUT 100 IC. Under extreme heat and structural stress, this machine, which is powered by a heavy-duty integrated IGBT Module network, produces an unwavering, high-rigidity cutting arc. With a large 15.1kVA input capacity and an infinitely adjustable output range of 20 to 100 Amps, it operates on a reliable three-phase 415V AC industrial grid. It easily makes clean, low-slag, radiographic-quality cuts through carbon steel, stainless steel, aluminum, brass, and copper alloy plates with thicknesses ranging from 1.0mm to an astounding 25.0mm thanks to its high open-circuit no-load voltage of 290V.
Features
:- Heavy-Duty IGBT Module Base: Long continuous shift dependability, minimal thermal load, and optimal arc stiffness are guaranteed by the large-capacity integrated module block architecture.
- Large 25mm Clean Cutting: With sharp kerf lines and no structural warping, it effortlessly tears through extra-thick metal plate profiles and structural beams.
- Stable Industrial Three-Phase Logic: Completely avoids mid-cut arc blowouts and line voltage stutters by precisely mapping energy across typical 415V three-phase grids.
- Improved Parameter Interface: Offers a large analog control dial and sophisticated touch-pad toggle controls for extremely accurate current tuning.
- Optimized Power Conversion Efficiency: With a remarkable 0.93 power factor rating, it significantly reduces power draw overhead and increases conversion ratios on the floor.
Applications
:- Large structural steel columns, massive I-beams, warehouse trusses, and architectural girder designs are examples of heavy structural engineering.
- Shipyard & Marine Manufacturing: Heavy dock fittings and thick marine steel hull plates are continuously trimmed and parted.
- High-precision metal profiling and beveling of thick-walled oil tankers, gas pipelines, and industrial chemical storage containers are examples of pressure vessel construction.
- Heavy Equipment Refurbishment: Quickly removing deteriorated structural parts from mining equipment, earthmoving attachment arms, and excavator buckets.
Usage
:- Make sure the main circuit breaker in your production facility is set up correctly to supply a steady, grounded three-phase AC 415V input line.
- The rear moisture trap entrance should be connected to a dry, high-velocity compressed air line. The pressure gauge should be adjusted to steady between 4 and 5 kg.
- Twist the high-amperage plasma cutting torch lead strongly in a clockwise direction to firmly insert it into the front panel interface socket.
- Attach the grounding return clamp directly to a smooth, polished area of the target metal plate that is completely devoid of paint, deep rust, or mill oils.
- Adjust the main knob to your plate depth, check the live digital ammeter tracking screen, then turn the industrial circuit breaker to the "ON" position.
