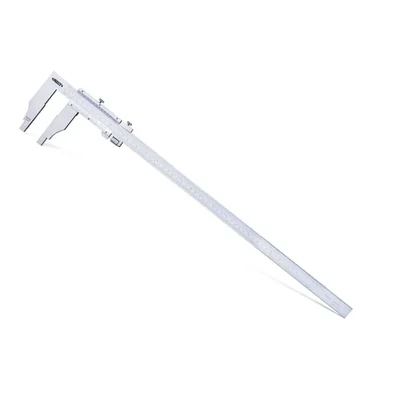

Insize 1000 mm Long Jaw Vernier Caliper with 200mm Lower Jaw Length, 1215-1032

• Model No : 1215-1032
• Measurement Range : 0-1000 mm
• Resolution : 0.02 mm
• Lower Jaw Length : 200 mm
• Material : Stainless Steel
• Overall Length : 1220 mm
• Accuracy : ± 0.08 mm

Features

• Extended Lower Jaws: Features 200 mm lower jaws, offering significant depth reach for measuring centered features on large parts or reaching over tall obstructions.
• Fine Adjustment Carriage: Equipped with a thumb-operated fine-adjustment block, which is essential for micro-positioning the jaws to capture the tool's fine graduation
• Hardened Stainless Steel: Fully constructed from hardened stainless steel for high rigidity and resistance to thermal expansion and rust.

Applications

• Large Diameter Pipes: The 200 mm jaws are ideal for bridging the diameter of large industrial water, gas, or oil piping for wall thickness or OD checks.
• Heavy Foundry Work: Reaching deep into or across irregular raw castings where standard length jaws would be obstructed by external fins or ribs.
• Machinery Maintenance: Essential for maintenance crews working on oversized shafts, industrial pumps, and mining equipment.
• Aerospace & Marine: Used for dimensional verification of large-scale ship engine components and airframe structural ribs.
• Battery-Free Reliability: A purely mechanical solution immune to electronic failure, making it perfect for harsh, high-vibration, or magnetically active environments.
